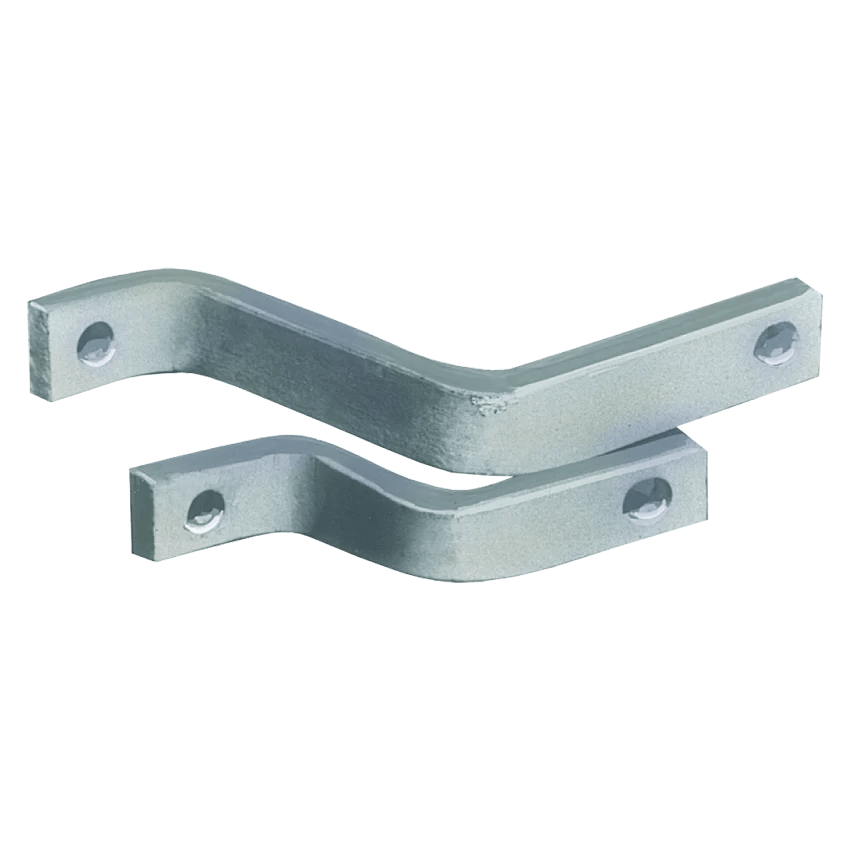

Cable Rack Support – Condux
To extend the racks away from the wall and avoid obstructions or water seepage. Each rack requires two supports. Hot dip galvanized. Use 1⁄2″ or M12 mounting hardware.
Description
Ordering Information
| | Steel Size | Ext. from wall | ||
|---|---|---|---|---|
| Part Number | (in) | (mm) | (in) | (mm) |
| 08381500 | .5 x 1.00 | 13 x 25 | 3 5/8 | 89 |
| 08383900 | .5 x 1.00 | 13 x 25 | 6 9/16 | 165 |
| 08383800 | .5 x 1.25 | 13 x 32 | 6 9/16 | 165 |
Additional information
| Weight | 2.15 lbs |
|---|---|
| Dimensions | 8 × 6.75 × 1.25 in |
| Size | 6 9/16″ |
