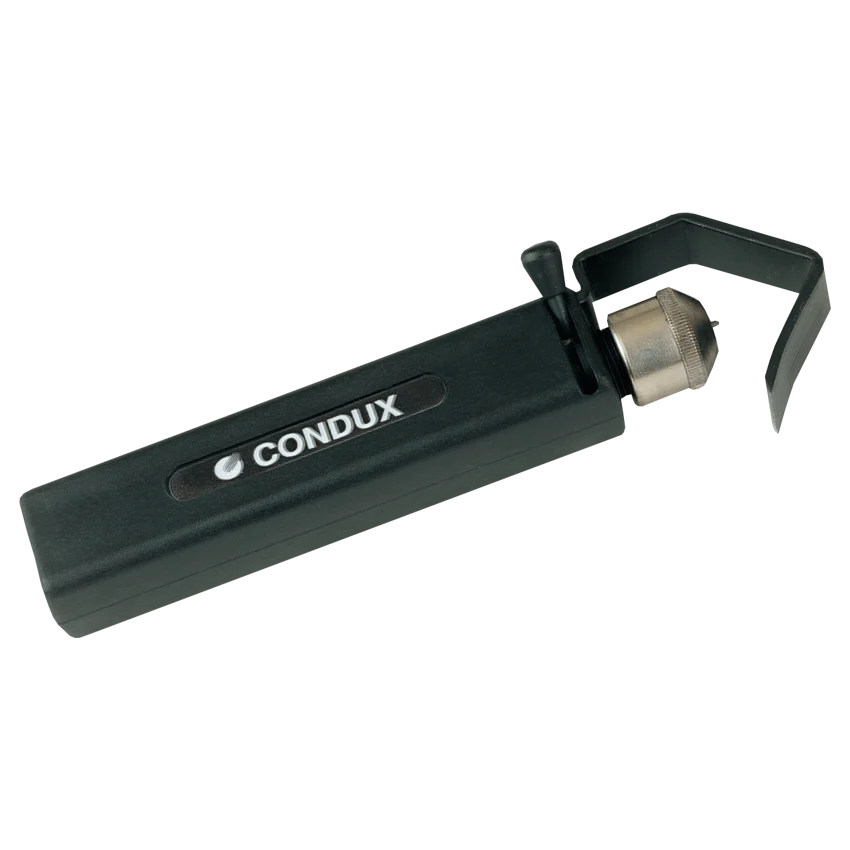

Cable Stripper/Slitter – Large Diameter Stripper/Slitter – Condux
Condux offers two sizes of the Stripper/Slitter for easy and rapid preparation of round cables from .18 (5 mm) up to 1.42 inch (36 mm) in diameter and 8 AWG up to 500 kcmil. They feature a spring-loaded cable support arm with a beveled leading edge that assists with insulation removal. The blade swivels to facilitate circular, longitudinal and spiral cuts.
Description
Ordering Information
|  | Cutting Depth | Max Diameter | |||
|---|---|---|---|---|---|
| Part Number | Description | (in) | (mm) | (in) | (mm) |
| 08013000 | Small Diameter Stripper/Slitter | 0.118 | 3 | .18-1.00 | 525 |
| 08013050 | Large Diameter Stripper/Slitter | 0.177 | 4.5 | .98-1.42 | 2536 |
| 08013001 | Replacement Blade (fits both sizes) | ||||
Additional information
| Weight | 0.32 lbs |
|---|---|
| Dimensions | 8.5 × 6 × 1 in |
| Connector Type | ST |
