It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

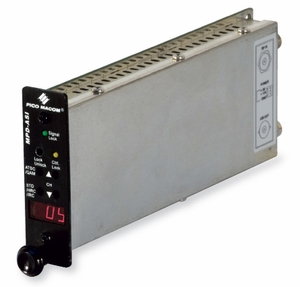

MPD-ASI : ATDC/8VSB/QAM Digital Demodulator
Features
- Professional quality digital (HD/SD) demodulator
- Covers Frequency Range from 54 to 860 MHz (CATV 2-135, VHF and UHF, ch 2-13, 14-69)
- Demodulates 8VSB any of the 18 ATDC video formats, QAM64 and 256 (J.83 ANNEX B) RF modulated signal
- One ASI 75 Ohms BNC transport stream output
- Easy Set-up via front panel switches
- Front Panel LED indicator for signal lock
- Used with MPC-12, MPC-12R or MPC-16PS/CS (chassis and power supply)
Specifications
| RF Input Range | 54-860 MHz |
|---|---|
| Input 8VSB Mode | |
| Tuning Range | UHF: 14 to 69, VHF: 2-13 |
| Frequency Range | 54 to 806 MHz |
| Data Rate | 19.392 Mbps |
| Input AGC range | -83 to -5 dBm |
| Input QAM Mode | |
| Channel Range | 2-135 |
| MODE | 64 & 256 |
| Frequency Range | 54 to 860 MHz |
| Data Rate: 64 and 256 QAM | 26.9, 38.8 Mbps |
| Input AGC Range | -60 to -5 dBm |
| Output ASI | |
| Bit Rate | 270 Mbps |
| Connector | 75Ω |
| Power Consumption | 12 VDC 180 mA 5 VDC 160 mA |
| Operating Temperature Range | 0 to 50°C |
