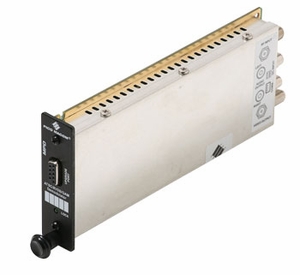

MPD : ATDC/8VSB/QAM Demodulator
Features
- Frequency range 54 to 860MHz
- Decodes HD/SD ATDC/8VSB, and uncripted QAM 64 and 256 (ANNEX B) digital RF signals
- SAP (English, French, Spanish) and support closed caption (EIA-608)
- High Density design, up to 10 MPD modules in 2 RU
- Stereo output
- Front panel indicator LED to monitor input 8VSB or QAM signal lock
- Easily configured power controller allows individual channel mapping and automatic scanning of individual modules
- Convenient front panel channel selection for channel and demodulation mode settings
- Decodes all 18 ATDC video formAmerican Tele Data
- Supports IRC and HRC offsets
- One F-connector video output and two stereo RCA left and right audio outputs provided at the back of the unit
- Nonvolatile memory for easy channel recall in the event of power failure
Specifications
| Input - QAM | |
|---|---|
| Mode | 64 & 256 QAM Annex B |
| Data rate | |
| 26.9 Mbps | QAM 64 |
| 38.8 Mbps | QAM 256 |
| Input connector | 75Ω F-Female |
| Frequency range | 54 to 860MHz |
| Channel range | Ch. 2-135 |
| Input AGC range | -35 to 30dBmV |
| Impedance | 75Ω |
| Input connector | F-Female |
| Input - 8VSB | |
| Frequency range | 54 to 806MHz |
| Channel range | VHF Ch. 2 - 13, UHF 14 - 69 |
| Data rate | 19.4 Mbps |
| Input AGC range | -35 to 30dBmV |
| Modulation | 8VSB |
| Impedance | 75Ω |
| Input connector | F-Female |
| Output - Video NTSC | |
| Frequency range | DC to 4.2MHz |
| Output level | 1 V p-p |
| Impedance | 75Ω |
| Video format | 480i NTSC |
| Aspect ratio | 4:3, 16:9 (PAN, SCAN) |
| Output - Analog Stereo Audio | |
| Audio level | 1 V p-p |
| Audio control | Adjustable |
| Frequency range | 50Hz to 19kHz |
| Connectors | RCA, left and right |
| General | |
| DC input voltage | 5 and 12Vdc |
| MPD Power | 5Vdc @ 300mA 12Vdc @ 200mA |
| Dimensions | 1.025” (W) x 3.465” (H) x 8.70” (D) |
| Weight | 0.8 lbs. |
