It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

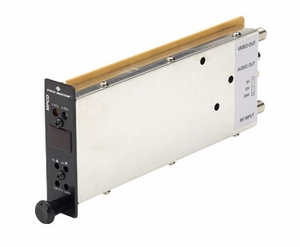

MPCD : Agile A/V Mini-Demodulator
Features
- 125 Channel Frequency Range 54~806MHz (CATV 2~13, A1~A5, A~ZZZ, 89~125, UHF 14~69)
- Agile microprocessor control with push-button channel selection provides ease of installation, configuration and servicing
- SAW filtered for precise adjacent channel rejection
- >60dB signal to noise ratio for crisp, sharp picture
- Digital display provides quick channel identification
- Non-volatile memory ensures channel programming remains after power loss
- Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12, MPC-12R and MPC-16PS/CS chassis
- Fully compatible with most other manufacturers’ “mini-mod” chassis
Specifications
| Input Frequency Range | 54~806MHz |
|---|---|
| Tuning | Agile |
| RF Input Level | 15dBmV |
| Noise Figure | 5dB (VHF) 7dB (UHF) |
| Video Detection Type | Envelope |
| Video Frequency Response | ±1.5dB |
| Video Signal to Noise | 60dB |
| Audio Detection Type | Quadrature FM |
| Audio Frequency Response | 50~15,000Hz |
| RF Input Connection | 75Ω F-Female |
| Video Output Connection | 75Ω F-Female |
| Audio Output Connection | 600Ω RCA-Female |
| Voltage Input | +5, +12VDC |
| Dimensions | 2.07˝(L)x 8˝(D)x 3.45˝(H) |
| Weight | 0.7 lbs. |
