It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

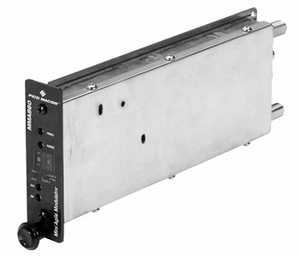

MMA860 : Universal-Chassis Mini-Agile Modulator
Features
- Compatible with most manufacturers mini-modulator chassis
- 135-Channel Range 54-860MHz (CATV 2-135)
- >45dBmV min adjustable output for optimum carrier-to-noise performance
- State-of-the-art digital phase-locked-loop (PLL) design guarantees precise frequency locking for solid drift-free operation
- Microprocessor control enables quick digital push-button channel selection for ease of installation, configuration, and improved system uptime
- SAW (surface acoustic wave) filtered for superior adjacent channel performance enables drop-in channel expansion
- In-band carrier-to-noise ratio >65dB ensures superior picture quality
- Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12, MPS-12, MPC-12R and MPC-16PS/CS chassis
- Automatic selection of aeronautical offsets (12.5kHz, 25kHz) for trouble-free configuration
- Front panel access to controls enables easy setup
Specifications
| Output Frequency Range | 54 to 860MHz |
|---|---|
| RF Output Level (min) | 45 dBmV |
| Tuning | Agile |
| Carrier to Noise (In band) | 60 |
| Carrier to Noise (Out of band) | 66 |
| Spurious Output | >55 |
| Video Frequency Response | ±1.2 |
| Video Signal to Noise | 56dB |
| Audio Input Type | Mono |
| Audio Frequency Response | 50 to 15000Hz |
| Video Input Connection | 75Ω F-Female |
| Audio Input Connection | 10KΩ RCA-F Unbalanced |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | +5, +12VDC |
| Dimensions | 1”(W) x 3.5”(H) x 7.5”(D) |
| Weight | 1 lb. |
