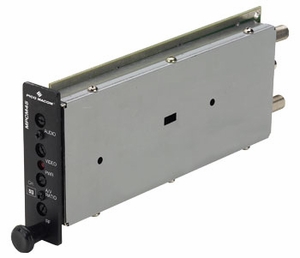

MPCM45 : SAW Filtered Single Channel A/V Mini-Modulator
Features
- 45dBmV minimum output for a 66dB in-band carrier to noise ratio provides superior picture quality
- 125 Channel Frequency Range 54~806MHz (CATV 2~13, A1~A5, A~ZZZ, 89~125, UHF 14~69)
- SAW (surface acoustic wave) filtered for superior adjacent channel performance enables drop-in channel expansion
- BTSC stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
- Front panel access controls enables easy setup
- Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12, MPC-12R and MPC-16PS/CS chassis
- IRC and HRC offsets available for frequency settings in systems using offset channels
- Compatible with most manufacturers’ mini-modulator chassis
- Optional PAL format channels available
Specifications
| Output Frequency Range | 54~806MHz |
|---|---|
| RF Output Level (min) | 45dBmV |
| Tuning | Channelized |
| Carrier to Noise (In-band) | 66dB |
| Carrier to Noise (Out of band) | 67dB |
| Spurious Output | >65dB |
| Video Frequency Response | ±1.2dB |
| Video Signal to Noise | 60dB |
| Audio Input Type | Monaural/MTS Baseband |
| Audio Frequency Response | 50~15,000Hz |
| Video Input Connection | 75Ω F-Female |
| Audio Input Connection | 5KΩ RCA-Female Unbalanced |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | +5, +12VDC |
| Dimensions | 1˝(L) x 8.7˝(D) x 3.4˝(H) |
| Weight | 1 lb. |
