Y-Block – Duct Pack – 2.375″ (60.3 mm) – Condux

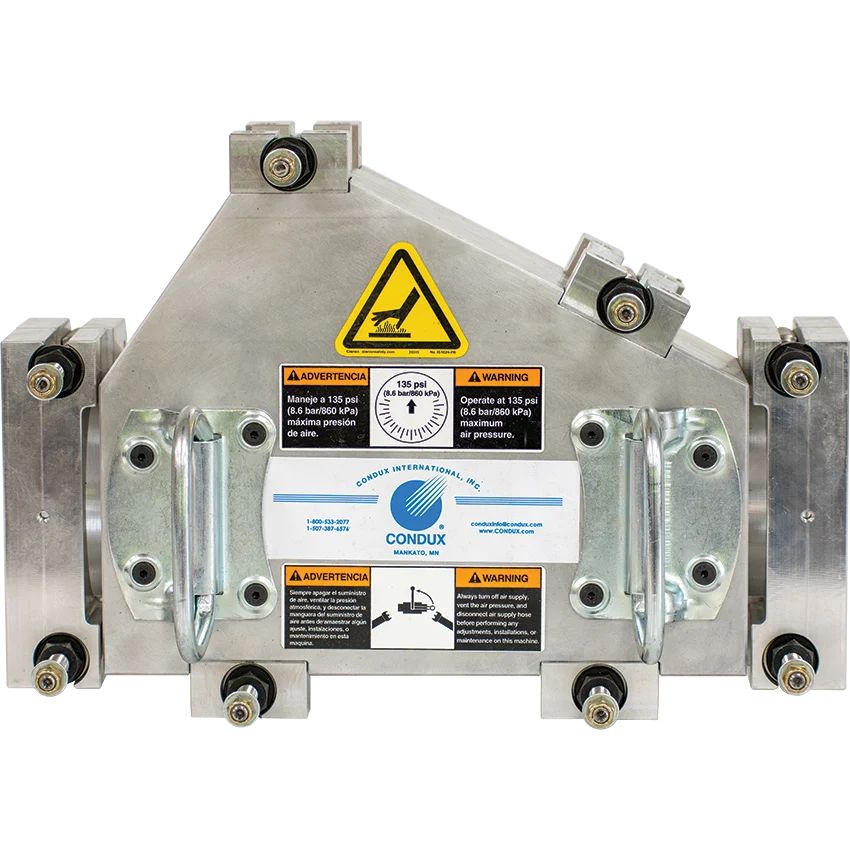

The Condux Y-Block is designed for installing a micro duct or fiber cable into an existing occupied duct, when coupled to the Gulfstream™ 400 Fiber Optic Cable Blower.
Features & Benefits
- Portable
- Easy to Use
- Duct Range 1.315″ – 2.375″ (33 mm – 60 mm) OD
- Cable Seal Range 0.35″ – 0.90″ (9 mm – 23 mm) OD
- Aluminum Construction
- Built-in Carrying Handles
- Canvas Storage Bag
Description
Ordering Information
| Part Number | Description |
|---|---|
| 08761850 | Y-Block |
Common Parts Package
(Included with all Y-Blocks)
| Part Number | Description |
|---|---|
| 02283800 | All Wrench 3/32 |
| 02283900 | Socket Hex Deep Well 11/16″ |
| 02284000 | Ratchet, 3/8″ Drive 6.75 in Long |
| 08761443 | Seal Kit Replacement |
| 08761868 | Inflatable Shuttle for 1.00-1.25 |
| 08761869 | Inflatable Shuttle for 1.50-2.00 |
| 08761884 | Cable Seal for .35-.50 Cable |
| 08761885 | Cable Seal for .51-.90 Cable |
| 08761438 | Capscrew Set |
Y-Block Duct Packs (sold separately)
(Each duct pack comes with 2-seals & 2-clamps)
| Part Number | Description | Duct OD |
|---|---|---|
| 08761386 | Y-Block Duct Pack – 1.315 (33.4) | 1.315″ |
| 08761826 | Y-Block Duct Pack – 1.570 (40.0) | 1.570″ |
| 08761387 | Y-Block Duct Pack – 1.660 (42.2) | 1.660″ |
| 08761388 | Y-Block Duct Pack – 1.900 (48.3) | 1.900″ |
| 08761389 | Y-Block Duct Pack – 2.375 (60.3) | 2.375″ |
Additional information
| Weight | 2.69 lbs |
|---|---|
| Dimensions | 3 × 3.75 × 3.75 in |
| Fiber Count | 60F |
Product Downloads
