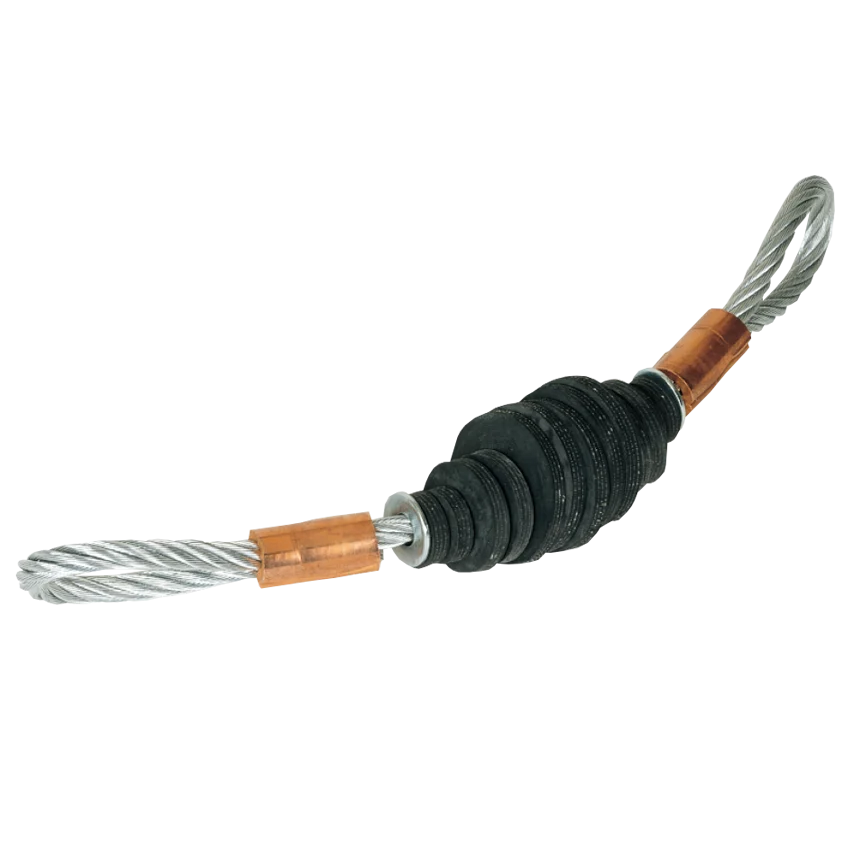

Short Rubber Slug – 8″ (203 mm) – Condux
For proving duct integrity and for spreading cable pulling lubricant especially in tight-radius bends. 4,500 lbs. (20,016 N) load capacity.
Description
Ordering Information
| Part | Duct Size | Length | Max O.D. | ||||
|---|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 08082020 | 2 | 51 | 3.25 | 83 | 2 | 51 | |
| 08082025 | 2 1/2 | 64 | 3.25 | 83 | 2.5 | 64 | |
| 08082030 | 3 | 76 | 3.25 | 83 | 3 | 76 | |
| 08082035 | 3 1/2 | 89 | 3.25 | 83 | 3.5 | 89 | |
| 08082040 | 4 | 102 | 3.25 | 83 | 4 | 102 | |
| 08082050 | 5 | 127 | 3.25 | 83 | 5 | 127 | |
| 08082060 | 6 | 154 | 3.25 | 83 | 6 | 154 | |
| 08082080 | 8 | 203 | 3.25 | 83 | 8 | 203 | |
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 18 × 8 × 8 in |
| Fiber Count | 8F |
| Fiber | Singlemode |
| Material | Rubber |
