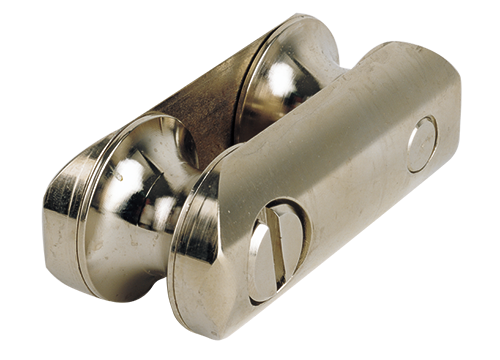

Rope to Rope/Grip Clevis – 7/8″ (22 mm) Rope to Rope/Grip Clevis – Condux
Versatile clevis provides efficient link for several applications. Stainless steel construction with 10,000 lbs. (44,480 N) load capacity. Combinations of sheaves and pins allow the following connections:
- 7/8″ (22 mm) diameter rope to 7/8″ (22 mm) diameter rope
- Rope to forged eye pulling grip
- Forged eye pulling grip to forged eye pulling grip
- Rope to flexible eye pulling grip
Description
Ordering Information
| | Dimensions | | | | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max Rope | A | B | C | D | E | Replacement Roller | Replacement Pin | Load Capacity | ||||||||
| Part Number | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | Part Number | Part Number | (lbs) | (N) |
| 08091200 | 7/8 | 22 | 1.75 | 44 | 0.91 | 23 | 4.50 | 114 | 1.96 | 50 | 0.62 | 16 | 08091202 | 08091201 | 10,000 | 44,482 |
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 4.5 × 1.72 × 1.5 in |
| Fiber Count | 8F |
| Size | 7/8″ |
