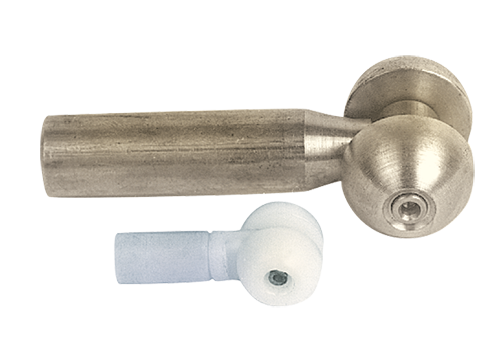

Roller Guide – Condux
Helps guide the duct rod around bends, sweeps, and duct misalignments. Also used when the conduit is already occupied by other cables.
Description
Ordering Information
| Part Number | USC Thread | US Duct Rodders Rod Diameter (in) | Duct Range I.D. (in) |
|---|---|---|---|
| 08037430 | #12-24 | 3/16 | 0.50-1.25 |
| 08037440 | 5/16-18 | 1/4 | 1.00-2.50 |
| 08037460 | 3/8-16 | 5/16 | 1.50-6.00 |
| 08037401 | 3/8-16 | 5/16 | 2.50-6.00 |
| 08037401 | 3/8-16 | 7/16 | 2.50-6.00 |
| 08037401 | 3/8-16 | 1/2 | 3.00 + |
Additional information
| Weight | 0.66 lbs |
|---|---|
| Dimensions | 3.25 × 2.25 × 1 in |
| Diameter | 1/2″ |
