Reusable Power Pulling Eyes – Clevis Head – Replacement Plug – 400 kcmil – Condux

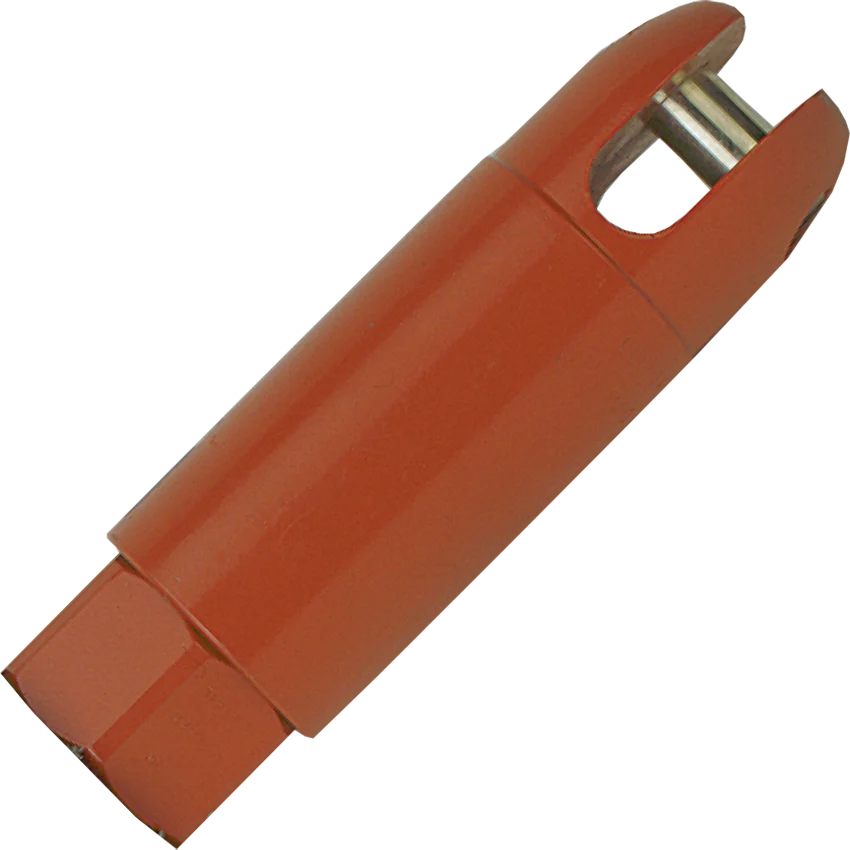

Plugs into conduit in manhole wall, guiding cable safely into the conduit regardless of the pulling angle. Replacement Sheaves available. See Sheaves Specifications and Selection Chart.
Description
Ordering Information
| | Max Eye OD | Slot Width | Slot Depth | Pin Dia. | Pin Center | | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Conductor Diameter | A | B | C | D | E | Replacement Plug | Load Rating | ||||||||||
| Part Number | Cable Size | Color | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | Part Number | (lbs) | (KN) |
| 08918150* | 2500 kcmil | Green | 1.824 | 46 | 3 | 76 | 1 | 25 | 2.8 | 71 | 0.88 | 22 | 1.23 | 31 | 08918123 | 25,000 | 11340 |
| 08918050* | 2000 kcmil | Red | 1.601 | 41 | 2.5 | 64 | 1 | 25 | 2.8 | 71 | 0.88 | 22 | 1.23 | 31 | 08918023 | 25,000 | 11340 |
| 08917750* | 1750 kcmil | Yellow | 1.526 | 39 | 2.5 | 64 | 1 | 25 | 2.8 | 71 | 0.88 | 22 | 1.23 | 31 | 08917723 | 25,000 | 11340 |
| 08917950* | 1500 kcmil | Black | 1.412 | 36 | 2.38 | 60 | 0.75 | 19 | 1.78 | 45 | 0.63 | 16 | 0.72 | 18 | 08917923 | 15,000 | 6804 |
| 08917850* | 1250 kcmil | Blue | 1.289 | 33 | 2.25 | 57 | 0.75 | 19 | 1.78 | 45 | 0.63 | 16 | 0.72 | 18 | 08917823 | 15,000 | 6804 |
| 08917150* | 1000 kcmil | Orange | 1.152 | 29 | 2.06 | 52 | 0.75 | 19 | 1.78 | 45 | 0.63 | 16 | 0.72 | 18 | 08917123 | 15,000 | 6804 |
| 08917250* | 750 kcmil | Brown | 0.998 | 25 | 1.75 | 44 | 0.63 | 16 | 1.59 | 40 | 0.56 | 14 | 0.78 | 20 | 08917223 | 10,000 | 4536 |
| 08917350* | 700 kcmil | Gray | 0.964 | 24 | 1.75 | 44 | 0.63 | 16 | 1.59 | 40 | 0.56 | 14 | 0.78 | 20 | 08917323 | 10,000 | 4536 |
| 08918250* | 600 kcmil | Green | 0.937 | 24 | 1.75 | 44 | 0.63 | 16 | 1.59 | 40 | 0.56 | 14 | 0.78 | 19 | 08918223 | 10,000 | 4536 |
| 08917450* | 500 kcmil | Yellow | 0.813 | 21 | 1.44 | 37 | 0.59 | 15 | 1.41 | 36 | 0.44 | 11 | 0.59 | 15 | 08917423 | 7,000 | 3175 |
| 08918350* | 400 kcmil | Black | 0.713 | 18 | 1.44 | 37 | 0.59 | 15 | 1.41 | 36 | 0.44 | 11 | 0.59 | 15 | 08918323 | 5,000 | 2268 |
| 08917550* | 350 kcmil | White | 0.681 | 17 | 1.25 | 32 | 0.56 | 14 | 1.34 | 34 | 0.38 | 10 | 0.59 | 15 | 08917523 | 2,500 | 1134 |
| 08960350** | 250 kcmil | Blue | 0.575 | 15 | 1.13 | 29 | 0.38 | 10 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 08960323 | 2,500 | 1134 |
| 08960450** | 4/0 AWG | Green | 0.528 | 13 | 1 | 25 | 0.38 | 10 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 08960423 | 2,500 | 1134 |
| 08960950** | 3/0 AWG | Orange | 0.475 | 12 | 1 | 25 | 0.38 | 10 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 08960923 | 2,500 | 1134 |
| 08960850** | 2/0 AWG | Black | 0.419 | 11 | 1 | 25 | 0.38 | 10 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 08960823 | 2,500 | 1134 |
| 08960550** | 1/0 AWG | Red | 0.373 | 9 | 0.88 | 22 | 0.38 | 10 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 08960523 | 2,500 | 1134 |
+ – Will fit 3/8″” (9.5 mm) and 1/2″” (13 mm) cable pulling harnesses.
* – Will fit all Condux pulling harnesses.
** – Will fit the 1/8″” (3 mm) and 1/4″” (6 mm) cable pulling harnesses.
Additional information
| Weight | 0.045 lbs |
|---|---|
| Dimensions | 1.807 × 0.56 × 0.56 in |
| Fiber Count | 4F |
