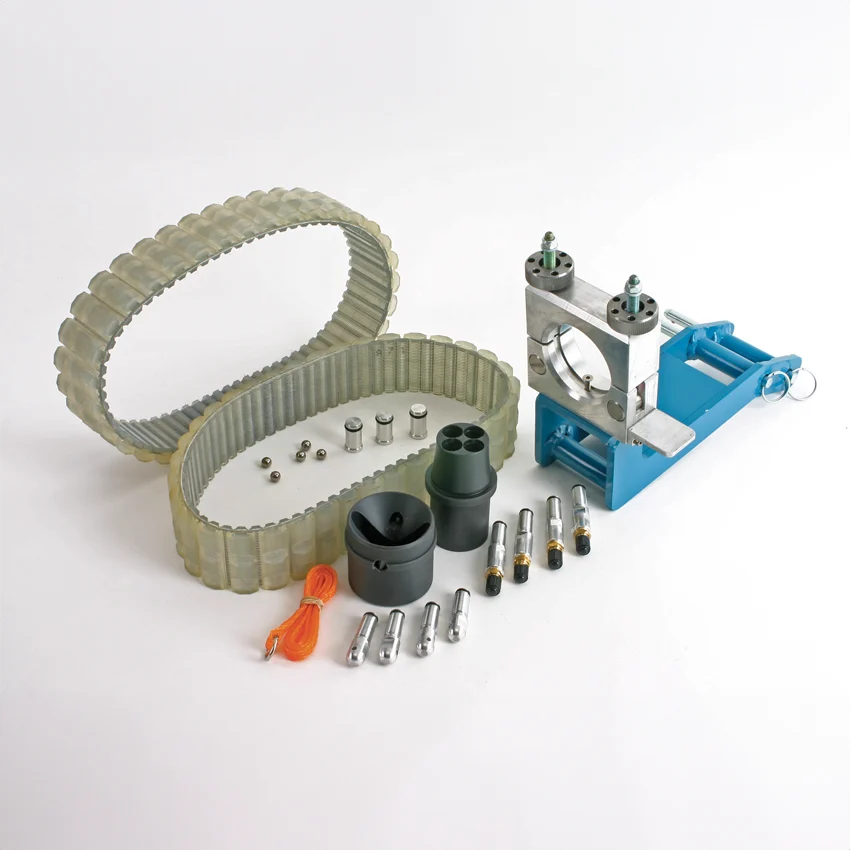

Multiple Micro Duct Installation Kits – 12/10 mm Multiple Micro Duct Installation Kit – Condux
Condux Multiple Micro Duct Installation Kits allow you to install up to 5 – 10/8 micro ducts, 4 – 12/10 micro ducts or other multiple micro duct configurations into an existing innerduct when used with the Condux Gulfstream™ 400 Fiber Optic Cable Blower. Microduct pressure gauge kit is required (sold separately).
Description
Ordering Information
| Part Number | Description |
|---|---|
| 08780710 | 10/8 mm Multiple Micro Duct Installation Kit |
| 08780712 | 12/10 mm Multiple Micro Duct Installation Kit |
| 08780770 | 12.7 mm Multiple Micro Duct Installation Kit |
| 08780797 | 16 mm Multiple Micro Duct Installation Kit |
| 08780878 | 14/10 mm Multiple Micro Duct Installation Kit |
| 08780747 | 1-16 mm & 2-12/10 mm Multiple Micro Duct Installation Kit |
| 08780723 | Flat Belt for Flat Fiber |
10/8 mm Kit (up to 5)
| Part Number | Description |
|---|---|
| 08645705 | Cable Grip |
| 08780720 | Lower Belt |
| 08780721 | Upper Belt |
| 08780724 | Rear Guide Assembly |
| 08780735 | 5-Hole Venturi |
| 08780739 | Venturi Plugs |
| 08780740 | Duct-Fill Plugs |
| 08780741 | Duct-Cap Plugs |
| 08780742 | Rear Guide |
| 08780748 | Proofing Balls |
12/10 mm Kit (up to 4)
| Part Number | Description |
|---|---|
| 08645705 | Cable Grip |
| 08780722 | Lower Belt |
| 08780722 | Upper Belt |
| 08780724 | Rear Guide Assembly |
| 08780725 | 4-Hole Venturi |
| 08780729 | Venturi Plugs |
| 08780730 | Duct-Fill Plugs |
| 08780731 | Duct-Cap Plugs |
| 08780732 | Rear Guide |
| 08780750 | Proofing Balls |
12.7 mm Kit (up to 4)
| Part Number | Description |
|---|---|
| 08645705 | Cable Grip |
| 08780722 | Lower Belt |
| 08780722 | Upper Belt |
| 08780724 | Rear Guide Assembly |
| 08780732 | Rear Guide |
| 08780750 | Proofing Balls |
| 08780771 | 4-Hole Venturi |
| 08780772 | Venturi Plugs |
| 08780774 | Duct-Cap Plugs |
| 08780776 | Duct-Fill Plugs |
16 mm Kit (up to 2)
| Part Number | Description |
|---|---|
| 08645710 | Cable Grip |
| 08783383 | Proofing Balls |
| 08780721 | Upper Belt |
| 08780723 | Lower Belt |
| 08780796 | 2-Hole Venturi |
| 08780734 | Rear Guide |
| 08780743 | Duct-Fill Plugs |
| 08780745 | Duct-Cap Plugs |
| 08780724 | Rear Guide Assembly |
14/10 mm Kit (up to 3)
| Part Number | Description |
|---|---|
| 08645710 | Cable Grip |
| 08783382 | Proofing Balls |
| 08780883 | Upper Belt |
| 08780882 | Lower Belt |
| 08780879 | 3-Hole Venturi |
| 08780886 | Rear Guide |
| 08780730 | Duct-Fill Plugs |
| 08780731 | Duct-Cap Plugs |
| 08780724 | Rear Guide Assembly |
1-16 mm & 2-12/10 mm Kit
| Part Number | Description |
|---|---|
| 08645710 | Cable Grip |
| 08017000 | Swivel |
| 08783383 | Proofing Balls 16/13 |
| 08783382 | Proofing Balls 12/10 |
| 08780733 | 3-Hole Venturi |
| 08780734 | Rear Guide |
| 08780743 | Duct-Fill Plugs 16/13 |
| 08780745 | Duct-Cap Plugs 16/13 |
| 08780730 | Duct-Fill Plugs 12/10 |
| 08780731 | Duct-Cap Plugs 12/10 |
| 08780724 | Rear Guide Assembly |
