Flexible Steel Mandrel – 4″ (102 mm) – Condux

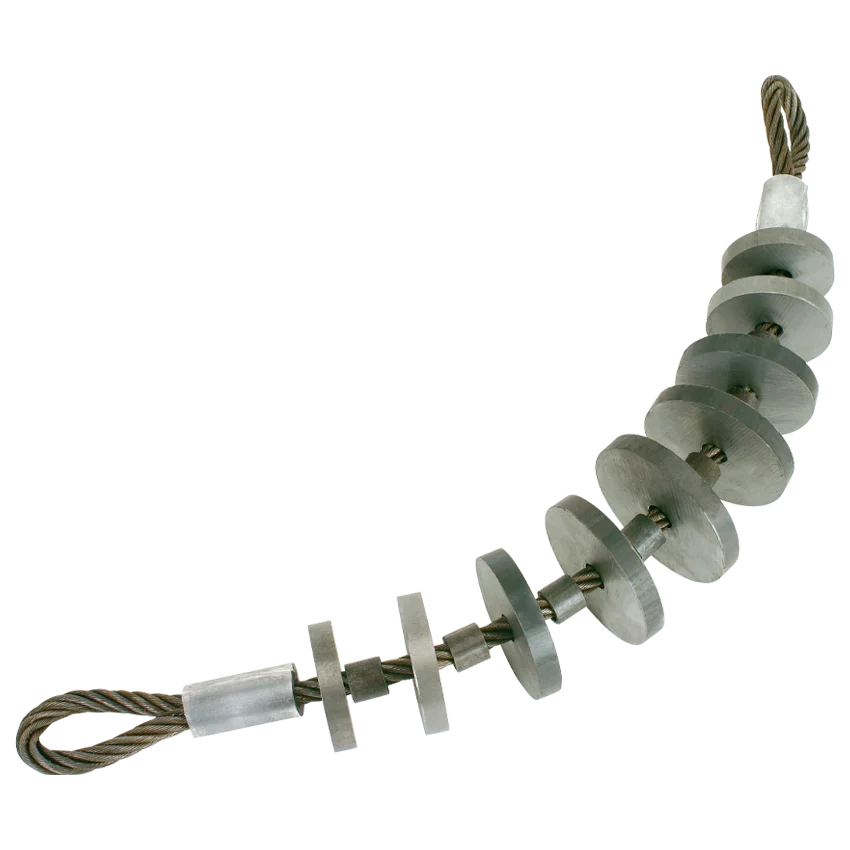

Steel discs in graduated sizes make this mandrel ideal for removing obstructions in duct with extreme bends. 7,000 lbs. (31,136 N) load capacity.
*2,000 lbs. (8,896 N) load capacity.
NOTE: When using the flexible steel mandrel, there is the potential for duct shaving to occur.
Description
Ordering Information
| Part | Duct Size | Length | Max O.D. | |||
|---|---|---|---|---|---|---|
| Number | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 08021700 | 2* | 51 | 7.31 | 186 | 1.75 | 44 |
| 08021925 | 2 1/2 | 64 | 11.25 | 286 | 2.25 | 57 |
| 08021800 | 3 | 76 | 11.25 | 286 | 2.75 | 70 |
| 08049400 | 3 1/2 | 89 | 11.25 | 286 | 3.25 | 83 |
| 08067400 | 4 Sch 80 | 97 | 11.25 | 286 | 3.5 | 89 |
| 08021900 | 4 | 102 | 11.25 | 286 | 3.75 | 95 |
| 08067500 | 5 Sch 80 | 114 | 11.25 | 286 | 4.25 | 108 |
| 08058900 | 5 | 127 | 11.25 | 286 | 4.75 | 121 |
| 08067600 | 6 Sch 80 | 146 | 11.25 | 286 | 5.5 | 140 |
| 08059000 | 6 | 152 | 11.25 | 286 | 5.75 | 146 |
| 08079500 | 8 | 203 | 11.25 | 286 | 7.75 | 197 |
