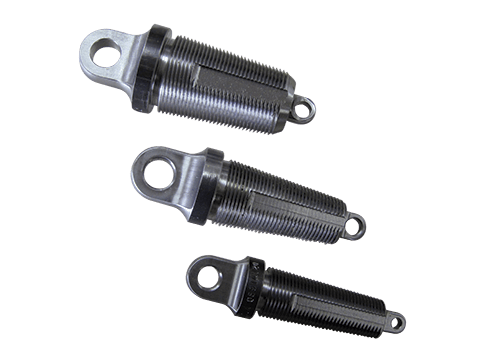

Fixed Head Innerduct Pulling Eye – 0.93″ – 1.06″ – Part #: 08914122 – Condux
Tapered buttress threads thread into the innerduct for maximum pulling strength. These eyes connect directly to a Condux swivel. When properly sized and installed, these eyes will not pull out of the innerduct until the pulling tensions have greatly exceeded the maximum pulling tensions recommended by the innerduct manufacturers.
NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.). The I.D. measurement must be greater than dimension A and smaller than dimension B.
Innerduct Compatibility Chart
| Innerduct Eye Part No. |
Innerduct I.D. Range |
Compatible Innerduct | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 0.75″ | 1.00″ | 1.25″ | 1.50″ | 2.00″ | |||||
| Swivel Head | 08960712 | 1.06″-1.43″ (27 mm-36 mm) |
– | SDR 13.5 SDR 15.5 SDR 17 SDR 21 |
SDR 7 SDR 9 SDR 11 SDR 13.5 |
SDR 7 | – | ||
| 08960715 | 1.37″-1.68″ (35 mm-42 mm) |
– | – | SDR 13.5 SDR 15.5 SDR 17 SDR 21 |
SDR 9 SDR 11 SDR 13.5 SDR 15.5 |
– | |||
| 08960720 | 1.93″-2.12″ (49 mm-54 mm) |
– | – | – | – | SDR 13.5 SDR 15.5 SDR 17 |
|||
| Fixed Head | 08914110 | Clevis Head | 08914310 | .73″-.94″ (19 mm-24 mm) |
SDR 9 SDR 11 SDR 13.5 SDR 15.5 |
– | – | – | – |
| 08914122 | 08914322 | .97″-1.19″ (25 mm-30 mm) |
– | SDR 9 SDR 11 SDR 13.5 SDR 15.5 SCH 40 |
– | – | – | ||
| 08914130 | 08914330 | 1.16″-1.43″ (29 mm-36 mm) |
– | SDR 21 | SDR 7 SDR 9 SDR 11 SDR 13.5 |
SDR 7 | – | ||
| 08914142 | 08914342 | 1.50″-1.67″ (38 mm-42 mm) |
– | – | SDR 21 | SDR 11 SDR 13.5 SDR 15.5 SDR 17 SCH 40 |
– | ||
| 08914150 | 08914350 | 1.72″-1.85″ (44 mm-47 mm) |
– | – | – | SDR 21 | – | ||
| 08914162 | 08914362 | 1.88″-2.07″ (48 mm-53 mm) |
– | – | – | – | SDR 11 SDR 13.5 SDR 15.5 SCH 40 SCH 80 |
||
| Weight | 1.019 lbs |
|---|---|
| Dimensions | 5.25 × 1.37 × 1.37 in |
| Fiber Count | 12F |
