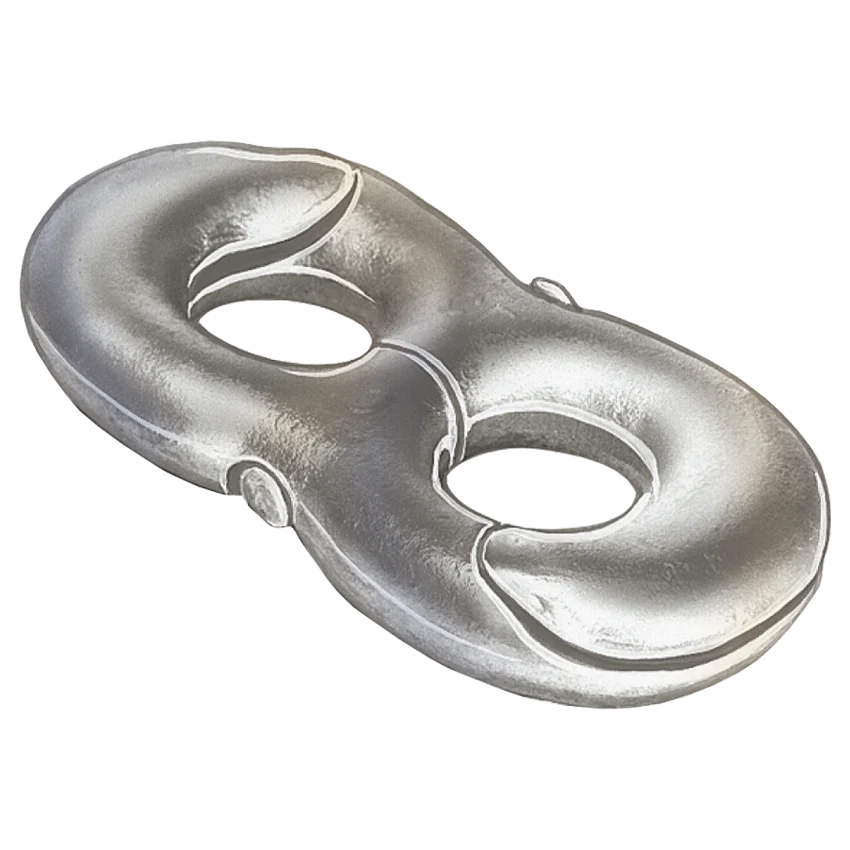

Figure 8 Swing Link – 3/8″ (10 mm) Figure 8 Swing Link – Condux
For quick connections to winch line or pulling harnesses.
Note: To be used for cable stringing or pulling only.
Description
Ordering Information
|  | Size | Working Load | Length (A) | Width (B) | Eye ID (C) | Eye ID (D) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | (in) | (mm) | (lbs) | (N) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 08580837 | 3/8 | 10 | 1,700 | 7,562 | 2.9 | 74 | 1.31 | 33 | 0.5 | 13 | 0.63 | 16 |
| 08580850 | 1/2 | 13 | 3,000 | 13,345 | 3.25 | 83 | 1.63 | 41 | 0.69 | 18 | 0.75 | 19 |
| 08580875 | 3/4 | 19 | 6,700 | 29,803 | 5 | 127 | 2.5 | 64 | 0.94 | 24 | 1.13 | 29 |
| 08580899 | 1 | 25 | 15,000 | 66,723 | 6.5 | 165 | 3.25 | 83 | 1.25 | 32 | 1.5 | 38 |
Swing Link Compatibility Chart
|  | Size | Pulling Eye Size Range | Pulling Harnesses | ||
|---|---|---|---|---|---|
| Part Number | (in) | (mm) | Std. Head Reusable Power Pulling Eyes Cable Size | Separate Leg Ends | Large Front Link Size |
| 08580825 | 1/4 | 6 | – | 1/8″ (3 mm), 1/4″ (6 mm) |
– |
| 08580837 | 3/8 | 10 | 1/0 AWG – 250 kcmil | 1/8″ (3 mm), 1/4″ (6 mm), 3/8″ (10 mm), Chain |
– |
| 08580850 | 1/2 | 13 | 350 kcmil – 1,000 kcmil | All Cable | 2 x 1/2″ (13 mm) |
| 08580875 | 3/4 | 19 | 1,250 kcmil – 2,000 kcmil | All Cable | 1/8″ (3 mm), 1/4″ (6 mm), 3/8″ (10 mm), 2 x 1/2″ (13 mm), Chain |
| 08580899 | 1 | 25 | – | All Cable | All |
