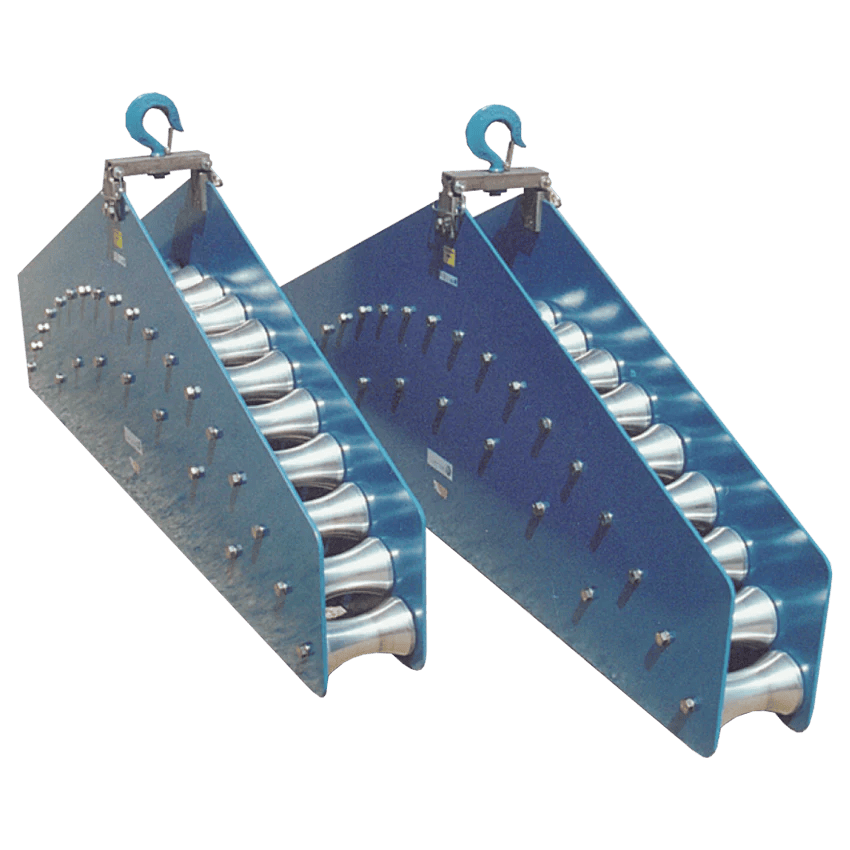

Fairlead Quadrant Block – Fairlead Quadrant Block w/ Nylatron Rollers – Condux
These quadrant blocks provide a 60″ (1,524 mm) pulling radius to guide any type of cable. 18 machined rollers on bronze bearings, 8″ (203 mm) wide by 5.5″ (140 mm) in diameter, allow the cable to make a gradual 90 turn for easy cable installation. 10,000 lb. (44,480 N) capacity.
Replacement Sheaves available, contact factory for information.
Description
Ordering Information
|  | A | B | C | ||||
|---|---|---|---|---|---|---|---|
| Part Number | Description | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 08094500 | Fairlead Quadrant Block w/ Aluminum Rollers | 96 | 2438 | 36 | 914 | 9 | 229 |
| 08094510 | Fairlead Quadrant Block w/ Nylatron Rollers | 96 | 2438 | 36 | 914 | 9 | 229 |
