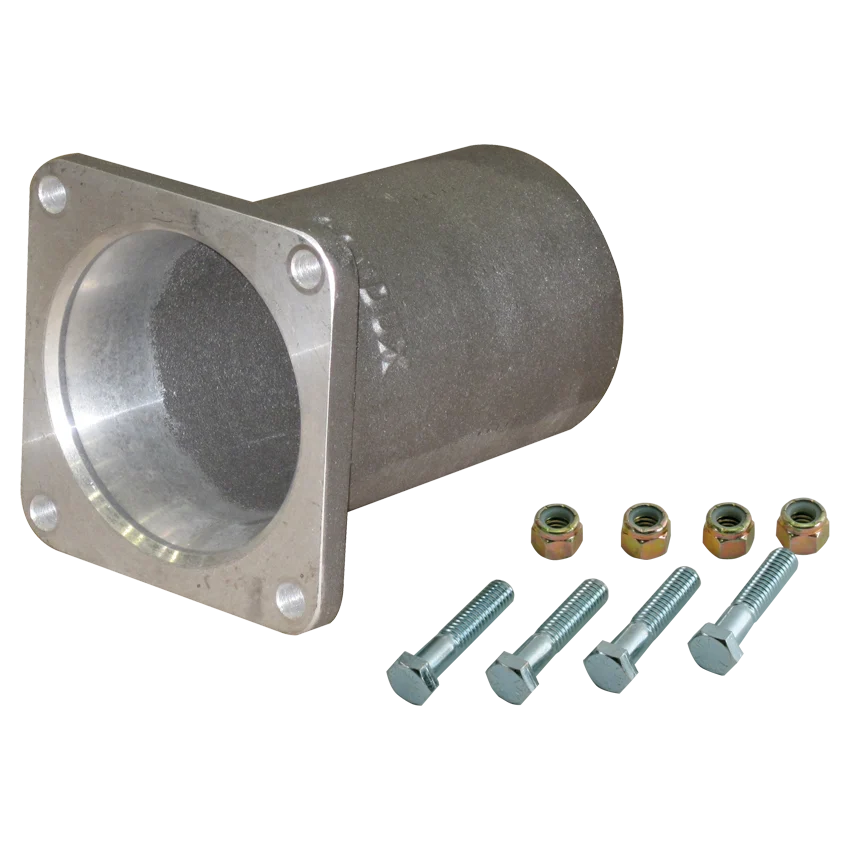

Duct Adapters – Winch Line Duct Adapter 6″ – Condux
Includes mounting bolts
Description
Ordering Information
|  | Flex Guide Dia. | Duct Size | OD | ID | ||||
|---|---|---|---|---|---|---|---|---|
| Part Number | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 08931010 | 2.00 | 51 | 1.00 | 25 | 0.90 | 23 | 0.72 | 18 |
| 08931013 | 2.00 | 51 | 1.25 | 32 | 1.22 | 31 | 1.00 | 25 |
| 08931015 | 2.00 | 51 | 1.50 | 38 | 1.44 | 37 | 1.19 | 30 |
| 08934020 | 4.00 | 102 | 2.00 | 51 | 1.91 | 49 | 1.65 | 42 |
| 08934030 | 4.00 | 102 | 3.00 | 76 | 2.94 | 75 | 2.69 | 68 |
| 08934035 | 4.00 | 102 | 3.50 | 89 | 3.44 | 80 | 3.13 | 87 |
| 08935020 | 5.00 | 127 | 2.00 | 51 | 1.98 | 50 | 1.75 | 44 |
| 08935030 | 5.00 | 127 | 3.00 | 76 | 2.98 | 76 | 2.75 | 70 |
| 08935035 | 5.00 | 127 | 3.50 | 89 | 3.45 | 88 | 3.25 | 83 |
| 08935040 | 5.00 | 127 | 4.00 | 102 | 3.93 | 100 | 3.75 | 95 |
| 08936040 | 6.00 | 152 | 4.00 | 102 | 3.93 | 100 | 3.50 | 89 |
| 08936050 | 6.00 | 152 | 5.00 | 127 | 4.94 | 125 | 4.63 | 118 |
| Replacement Duct Adapters | ||||||||
| 08931020 | 2.00 | 51 | 2.00 | 51 | 1.91 | 49 | 1.66 | 42 |
| 08934040 | 4.00 | 102 | 4.00 | 102 | 3.94 | 100 | 3.69 | 94 |
| 08935050 | 5.00 | 127 | 5.00 | 127 | 4.93 | 125 | 4.50 | 114 |
| 08936060 | 6.00 | 152 | 6.00 | 152 | 5.94 | 151 | 5.63 | 143 |
| 08938080 | 8.00 | 203 | 8.00 | 203 | 7.94 | 202 | 7.62 | 194 |
Additional information
| Weight | 6.75 lbs |
|---|---|
| Dimensions | 6.4 × 6.3 × 6.3 in |
| Fiber Count | 6F |
