CAT6 RJ45 110 Type Keystone Jack Gray
$0.98
Description

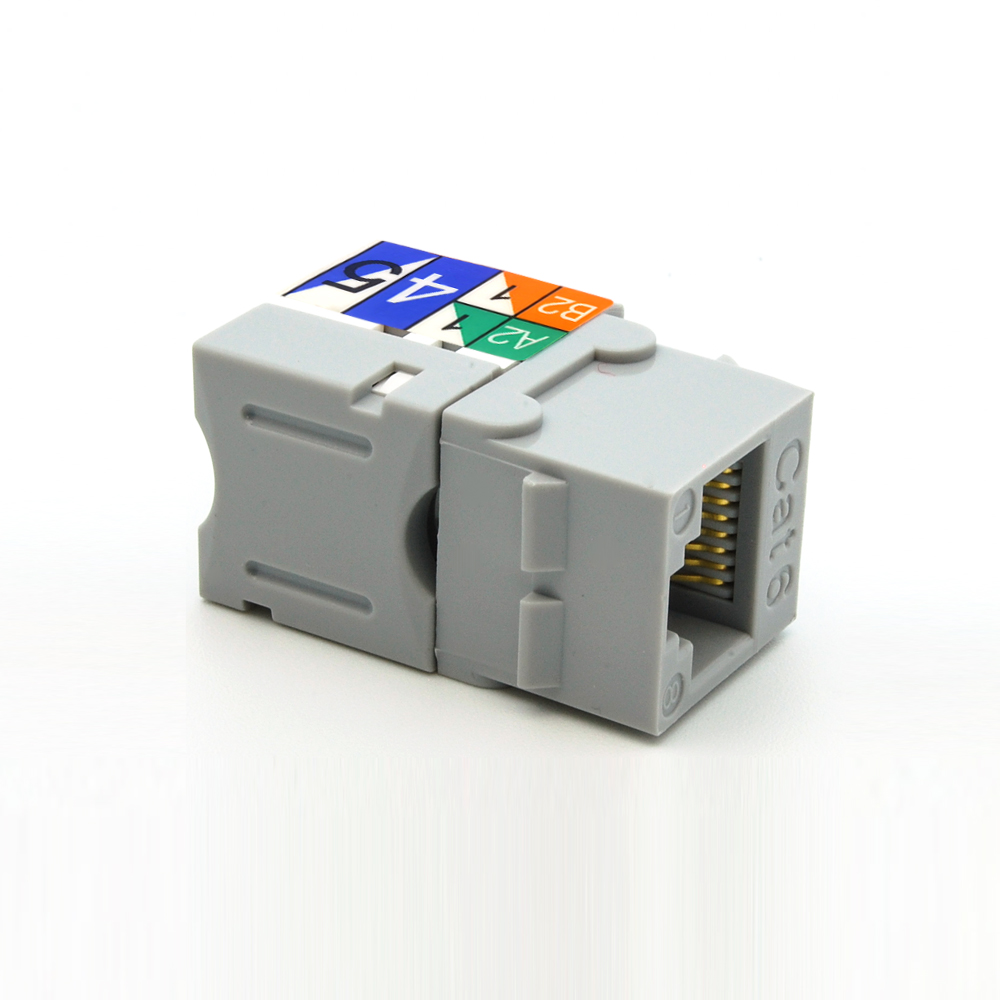

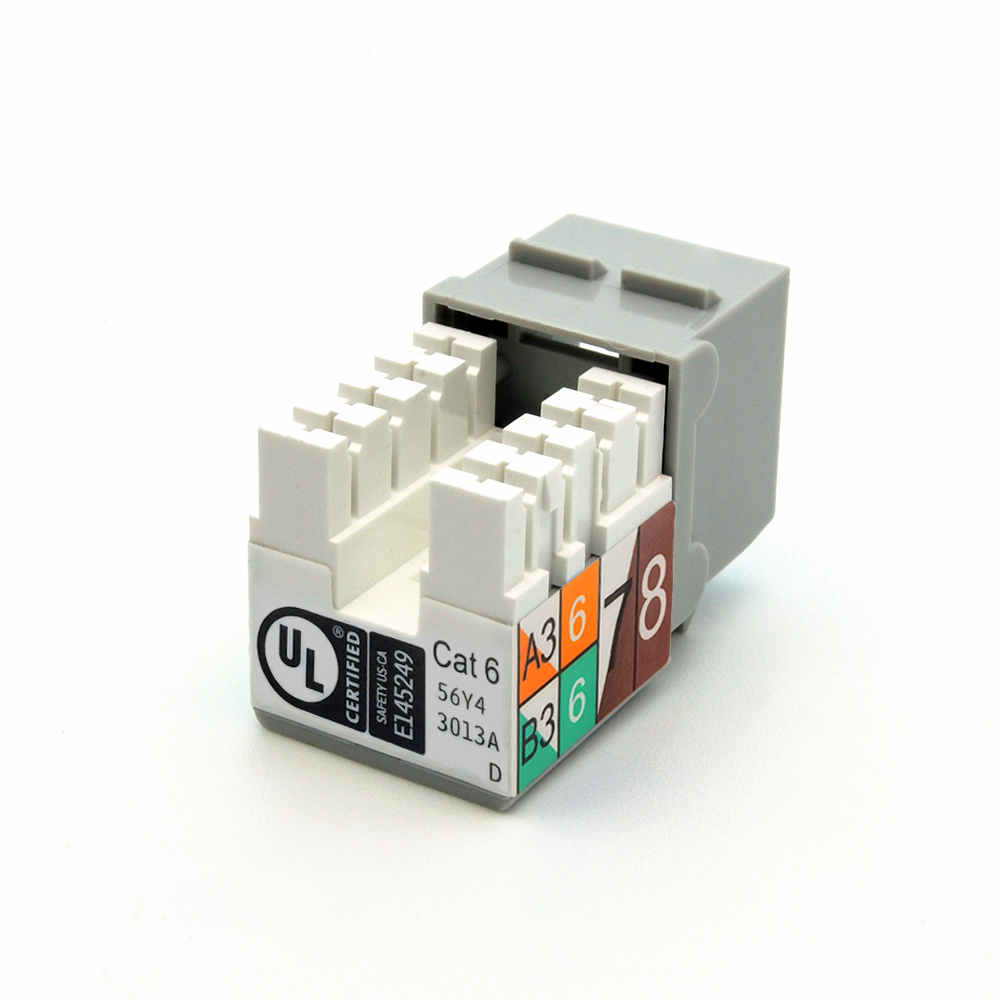

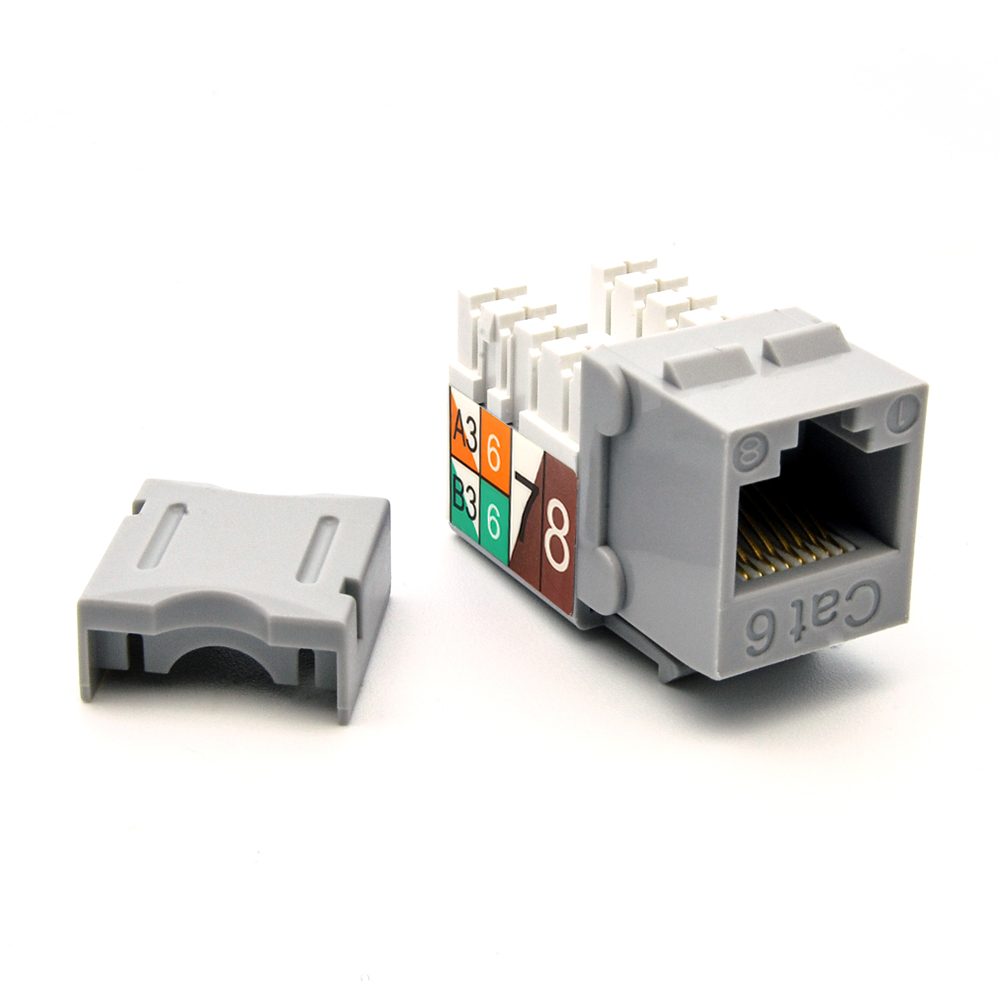

Bestlink Netware’s Cat.6 RJ45 keystone jacks are 8-position 8-conductor (8P8C) and are engineered to provide superior performance and reliability for data networks requiring maximum speed and bandwidth, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards.
Features:
Bestlink Netware RJ45 Keystone Jacks use 50-micron gold plated contact pins that are non-corrosive and ensure long-term connectivity.
Specifications:
| Material Flame Rating | UL 94V-0 |
| Applicable Wire Gauge | 22AWG ~ 26AWG Solid and Stranded Wire |
| Jack Contacts | 50-Micron Gold Plating |
| Operating Life | 750 Insertions |
| IDC Contacts | 100 Micron Nickel Plating |
| Operating Life | 250 Reterminations |
| Wiring | T568A& B Compatible |
| Compatibility | Category 6, 5 & 3 |
| Safety Compliance | UL 1863, UL/cUL listed |
| Shield Type | 50~60-Micron Nickel Plating over Phosphor Bronze |
| Applications | 10Base-T, 100Base-TX Fast Ethernet |
Product Downloads
