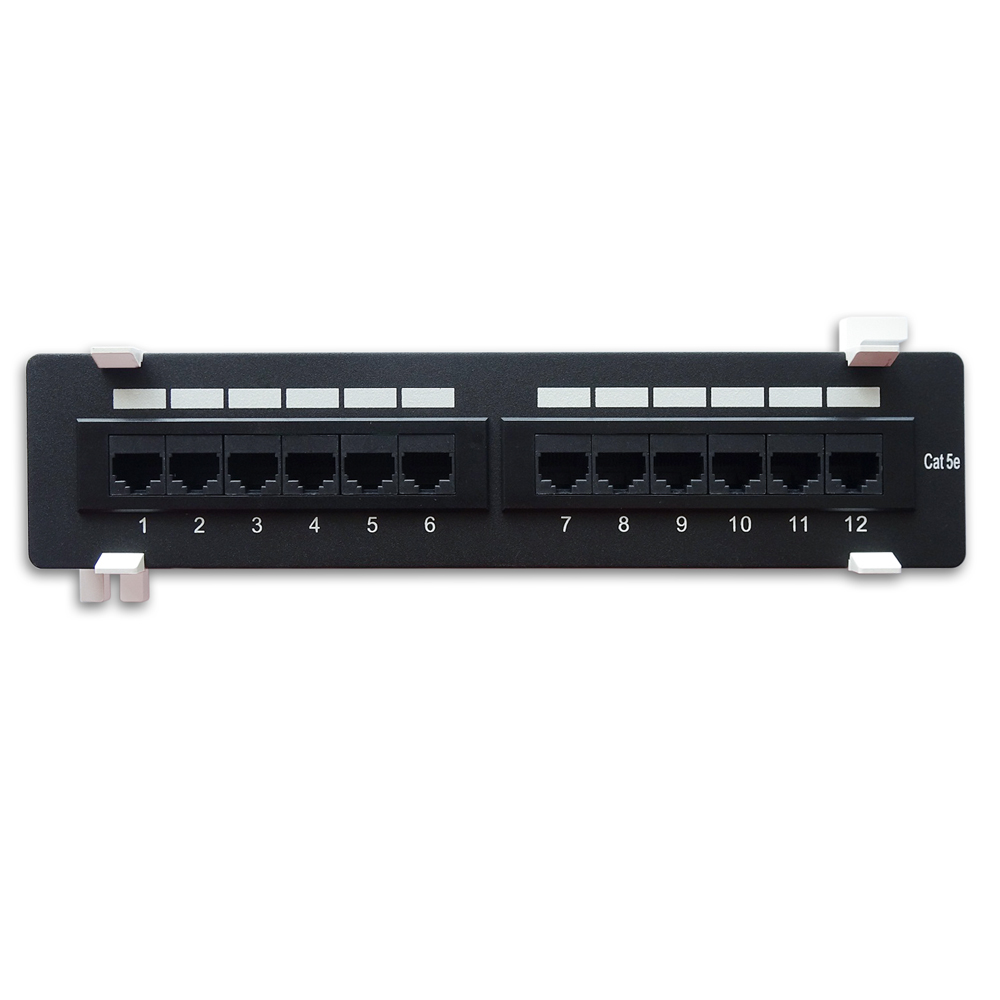

Cat.5E 110 Type Patch Panel 12Port Vertical w/Bracket

Name: Cat.5E 110 Type Patch Panel 12Port Vertical w/Bracket
SKU: ATDS102195
Price: 12.27 USD
Availability: InStock

$12.27

SKU: ATDS102195 Categories: Patch Panels, Vertical Patch Panels

Description

Mounting Bracket Included

UL listed

Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification

Support T568A : B wiring

Wire diameter : 22 ~ 26AWG

Insulation diameter range : 0.70 to 1.40mm

Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.

IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.

Safty : UL1863

Flamability : UL 94 VO

Operating temperature : -40 to +70 dgree Celsius

Weight : 0.85LBS

25 years warranty

Carton qty: 24

Carton weight: 23 LBS

Dimensions : 10″(H) x 2 1/4″ (W) x 1 3/4″ (D)
