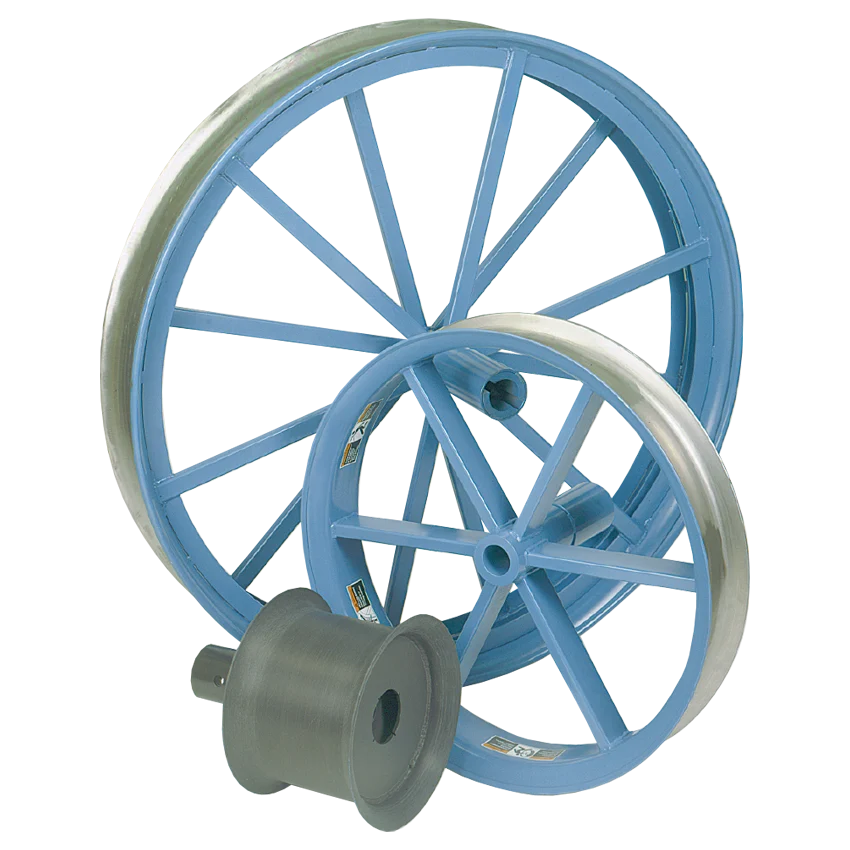

Capstans – 42×8 – Condux
For a standard 2 7/16″ diameter bayonet style shaft.
Description
Ordering Information
| | Diameter | Flat Width | Max Cable O.D. | Load Rating | ||||
|---|---|---|---|---|---|---|---|---|
| Part Number | (in) | (mm) | (in) | (mm) | (in) | (mm) | (lbs) | (kN) |
| 08675213* | 12 | 305 | 9 | 229 | – | – | 2,000 | 8.9 |
| 08675230 | 30 | 762 | 4 | 102 | 0.75 | 19 | 1,000 | 4.4 |
| 08675430 | 30 | 762 | 8 | 203 | 0.75 | 19 | 600 | 2.7 |
| 08675436 | 42 | 1,067 | 8 | 203 | 1.05 | 27 | 600 | 2.7 |
| 08675220 | 50 | 1,270 | 8 | 203 | 1.25 | 32 | 600 | 2.7 |
| 08675275 | 62 | 1,575 | 8 | 203 | 1.55 | 39 | 600 | 2.7 |
*Not to be used for fiber optic cable. Intended for pulling innerduct, power, telephone or coaxial cables.
