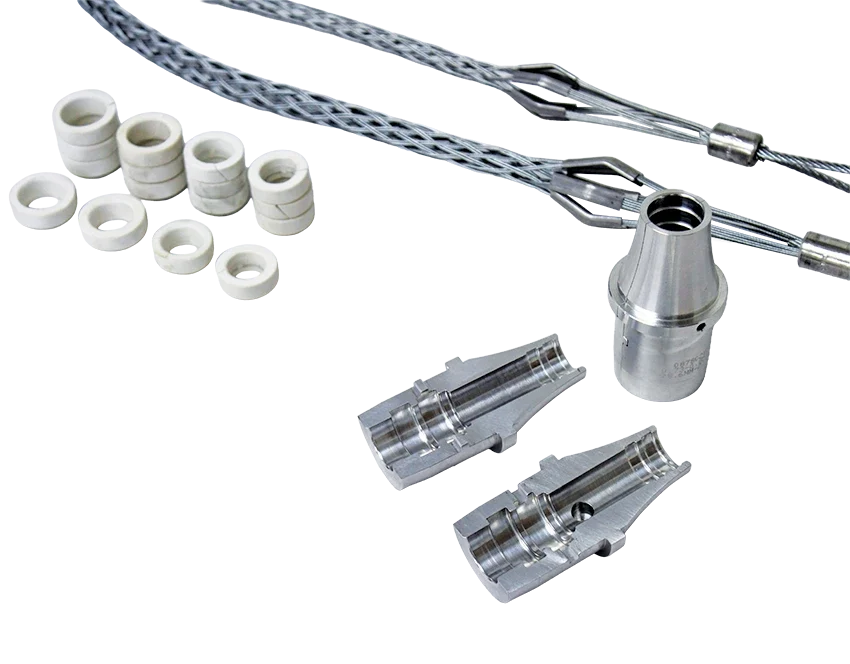

Cable Packs – GS400 Pack #5 – Condux
Description
| Cable Pack | Venturi | Cable Seal | Cable Grip | ||||
|---|---|---|---|---|---|---|---|
| Cable OD | Part Number | Cable OD | Part Number | Cable OD | Part Number | Cable OD | Part Number |
| 0.16″ – 0.18″ (4.0 – 4.5 mm) |
08781160 | 0.16″ – 0.18″ (4.0 – 4.5 mm) |
08781165 | 4.0 mm 4.5 mm |
08780961K 08780960K |
0.10″ – 0.22″ (2.5 – 5.6 mm) |
08643753 |
| 0.18″ – 0.31″ (4.6 – 8.0 mm) |
08781161 | 0.18″ – 0.31″ (4.6 – 8.0 mm) |
08781166 | 5.0 mm 5.5 mm 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm |
08780962K 08780963K 08780964K 08780965K 08780966K 08780967K 08780968K |
0.10″ – 0.22″ (2.5 – 5.6 mm) 0.21″ – 0.35″ (5.3 – 8.9 mm) |
08643753 08643754 |
| 0.32″ – 0.47″ (8.1 – 12.0 mm) |
08781162 | 0.32″ – 0.47″ (8.1 – 12.0 mm) |
08781167 | 8.5 mm 9.0 mm 9.5 mm 10.0 mm 10.5 mm 11.0 mm 11.5 mm 12.0 mm |
08780969K 08780970K 08780971K 08780972K 08780973K 08780974K 08780975K 08780976K |
0.32″ – 0.48″ (8.1 – 12.2 mm) |
08643755 |
| 0.48″ – 0.61″ (12.1 – 15.5 mm) |
08781163 | 0.48″ – 0.61″ (12.1 – 15.5 mm) |
08781168 | 12.5 mm 13.0 mm 13.5 mm 14.0 mm 14.5 mm 15.0 mm 15.5 mm |
08780977K 08780978K 08780979K 08780980K 08780981K 08780982K 08780983K |
0.42″ – 0.61″ (10.7 – 15.5 mm) |
08643756 |
| 0.61″ – 0.65″ (15.6 – 16.5 mm) |
08781164 | 0.61″ – 0.65″ (15.6 – 16.5 mm) |
08781169 | 16.0 mm 16.5 mm |
08780984K 08780985K |
0.53″ – 0.74″ (13.5 – 18.8 mm) |
08643757 |
| 10.4 x 5.5 mm | 08781117 | (Nylatron venturi for flat fiber cables) | |||||
| 15.2 x 6.7 mm | 08781118 | (Nylatron venturi for flat fiber cables) | |||||
| Cable Pack | Venturi | Cable Seal | Cable Grip | |||||
|---|---|---|---|---|---|---|---|---|
| Pack | Cable OD | Part Number | Cable OD | Part Number | Cable OD | Part Number | Cable OD | Part Number |
| 1 | 0.23″ – 0.34″ (5.8 – 8.8 mm) |
08780393 Pack #1 |
0.23″ – 0.34″ (5.8 – 8.8 mm) |
08780281 | 0.23″ – 0.28″ (5.8 – 7.2 mm) 0.29″ – 0.34″ (7.3 – 8.8 mm) |
08780407 08780406 |
0.21″ – 0.35″ (5.3 – 8.9 mm) |
08643754 |
| 2 | 0.35″ – 0.48″ (8.9 – 12.2 mm) |
08780394 Pack #2 |
0.35″ – 0.48″ (8.9 – 12.2 mm) |
08781115 | 0.35″ – 0.42″ (8.9 -10.7 mm) 0.43″ – 0.48″ (10.8 -12.2 mm) |
08761424 08761425 |
0.32″ – 0.48″ (8.1 – 12.2 mm) |
08643755 |
| 3 | 0.49″ – 0.60″ (12.3 – 15.2 mm) |
08780512 Pack #3 |
0.49″ – 0.60″ (12.3 – 15.2 mm) |
08781116 | 0.49″ – 0.55″ (12.3 -14.0 mm) 0.56″ – 0.60″ (14.1 -15.2 mm) |
08761426 08761427 |
0.42″ – 0.61″ (10.7 – 15.5 mm) |
08643756 |
| 4 | 0.61″ – 0.73″ (15.3 – 18.5 mm) |
08780395 Pack #4 |
0.61″ – 0.73″ (15.3 – 18.5 mm) |
08780284 | 0.61″ – 0.67″ (15.3 -17.0 mm) 0.68″ – 0.73″ (17.1 -18.5 mm) |
08761428 08761429 |
0.53″ – 0.74″ (13.5 – 18.8 mm) |
08643757 |
| 5 | 0.74″ – 0.85″ (18.6 – 21.6 mm) |
08780513 Pack #5 |
0.74″ – 0.85″ (18.6 – 21.6 mm) |
08780285 | 0.74″ – 0.79″ (18.6 -20.1 mm) 0.80″ – 0.85″ (20.2 -21.8 mm) |
08761430 08761431 |
0.64″ – 0.87″ (16.3 – 22.1 mm) |
08643758 |
| 6 | 0.86″ – 0.97″ (21.7 – 24.6 mm) |
08780396 Pack #6 |
0.86″ – 0.97″ (21.7 – 24.6 mm) |
08780286 | 0.86″ – 0.92″ (21.7 -23.4 mm) 0.93″ – 0.97″ (23.5 -24.6 mm) |
08761432 08761433 |
0.75″ – 1.00″ (19.1 – 25.4 mm) |
08643759 |
| 7 | 0.98″ – 1.13″ (24.7 – 28.7 mm) |
08780514 Pack #7 |
0.98″ – 1.13″ (24.7 – 28.7 mm) |
08780446 | 0.98″ -1.04″ (24.7 -26.4 mm) 1.05″ -1.13″ (26.5 -28.7 mm) |
08761434 08761435 |
1.00″ – 1.24″ (25.4 – 31.5 mm) |
08643137 |
| 8 | 10.4 x 5.5 mm | 08781117 | (Nylatron venturi for flat fiber cables) | |||||
| 9 | 15.2 x 6.7 mm | 08781118 | (Nylatron venturi for flat fiber cables) | |||||
| Part Number | Description |
|---|---|
| 08782638 | 0.49″-0.60″ (12.4-15.3 mm) |
| 08782637 | 0.61″-0.73″ (15.4-18.5 mm) |
| 08782636 | 0.74″-0.85″ (18.6-21.6 mm) |
| 08782635 | 0.86″-0.97″ (21.7-24.6 mm) |
| 08782634 | 0.98″-1.13″ (24.7-28.7 mm) |
| 08782633 | 1.14″-1.25″ (28.8-31.8 mm) |
| 08782632 | 1.26″-1.34″ (31.9-34.0 mm) |
| 08782631 | 1.35″-1.54″ (34.1-39.1 mm) |
Additional information
| Fiber Count | 4F |
|---|
