Break-Away Swivel - 7/8" (22 mm) Swivel

Break-Away Swivel – 7/8″ (22 mm) Swivel – 1,700 lbs. – Condux

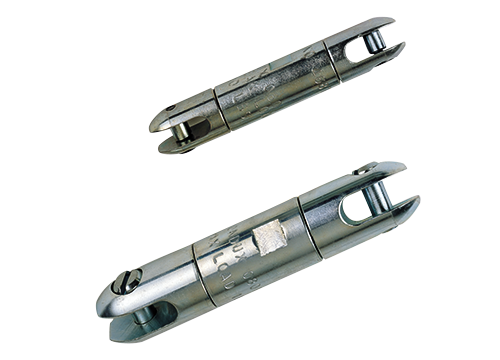

Essential for fiber optic and coaxial cable pulling, these swivels have a break load ranging from 150–1,800 pounds (667–8,006 N) and are designed to separate at ±10% of their rated break load. If the load rating is exceeded, the interior break pin fractures, the swivel separates, and the cable remains undamaged.

U. S. Patent No. 4,687,365. Break-Away Swivel Dimensions

5/8″ Swivel (16 mm)
7/8″ Swivel (22 mm)

NOTE: Swivels are not designed to run around bullwheels.

Break Away Swivel Dimensions illustration

Ordering Information

			Dimensions
	Break Load		A		B		C		D		E		F
Part Number	(lbs)	(N)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)
5/8″ Swivel (16 mm)
08017300	200	890	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
08017400	250	1,112	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
08016900	450	2,002	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
08017200	600	2,669	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
08017500	650	2,891	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
08017900	750	3,336	0.625	16	0.28	7	3.56	90	0.79	20	0.25	6	0.37	9
7/8″ Swivel (22 mm)
08018100	150	667	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018300	200	890	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018000	250	1,112	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08017600	300	1,334	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018400	350	1,557	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08075300	400	1,779	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08015800	450	2,002	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08076500	500	2,224	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018500	550	2,446	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08015000	600	2,669	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018600	650	2,891	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08076000	700	3,114	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08075500	750	3,336	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018700	800	3,558	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018800	850	3,781	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08076600	900	4,003	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08015700	1,000	4,448	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08018900	1,100	4,893	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08015200	1,200	5,338	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08019100	1,300	5,782	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08074600	1,400	6,227	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08076900	1,500	6,672	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08019200	1,600	7,117	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08019300	1,700	7,562	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13
08017700	1,800	8,006	0.875	22	0.38	10	4.51	115	1.06	27	0.31	8	0.53	13

Weight	1.25 lbs
Dimensions	4.4 × 0.87 × 0.87 in
Fiber Count	8F
Diameter	7/8″ (22 mm)

Weight

1.25 lbs

Dimensions

4.4 × 0.87 × 0.87 in

Fiber Count

Diameter

7/8″ (22 mm)
