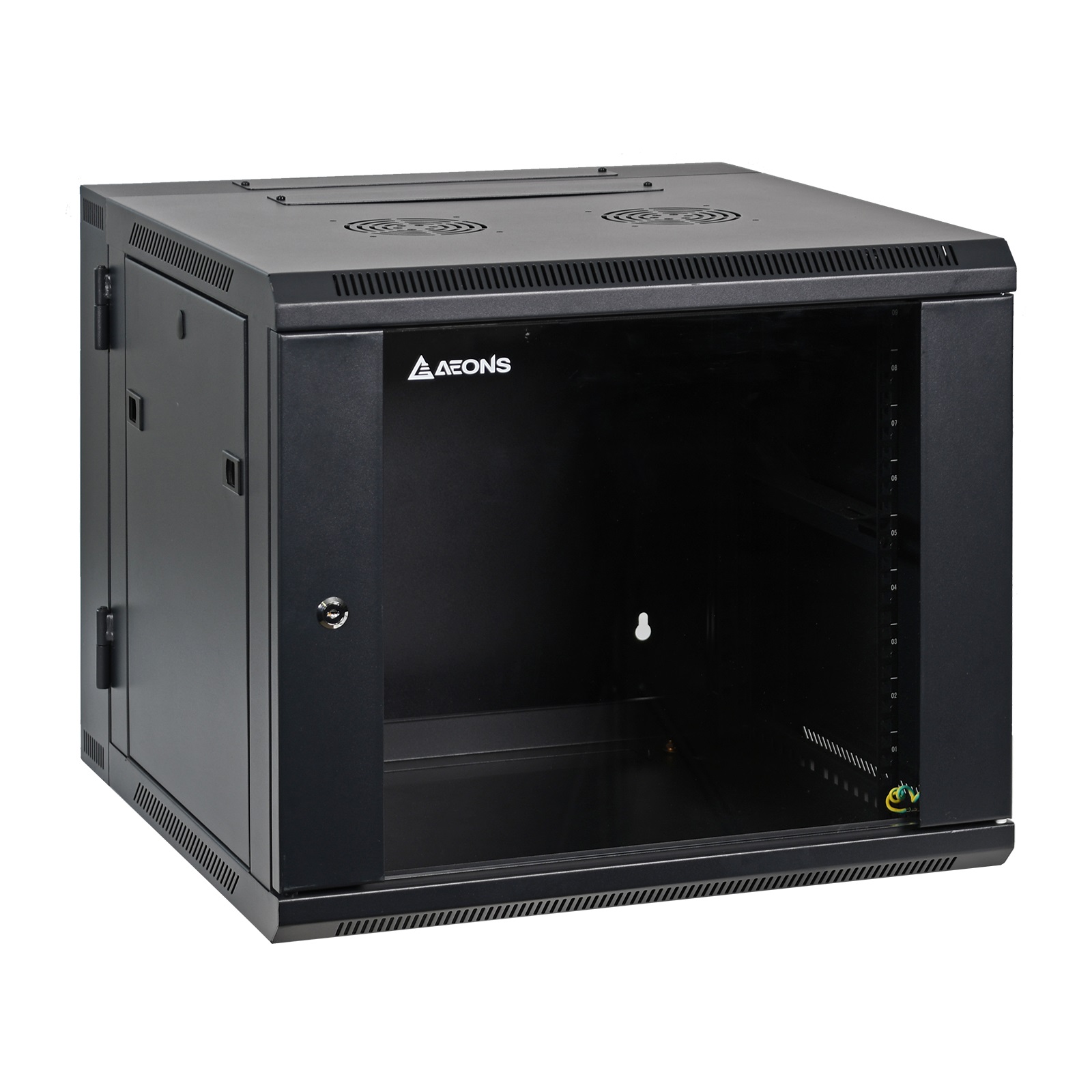

9U 19″ Wall-Mount Cabinet Rear Hinged Swing-Out, Glass Door 21.7″ Depth Pre-Assembled
$212.45
Signature SB-Series Double Section Swing-Out Wall Mount Cabinets offer a complete solution for mounting EIA-standard 19-
inch rackmount equipment in areas with restricted floor space, such as network closets, classrooms, and offices. These cabinets

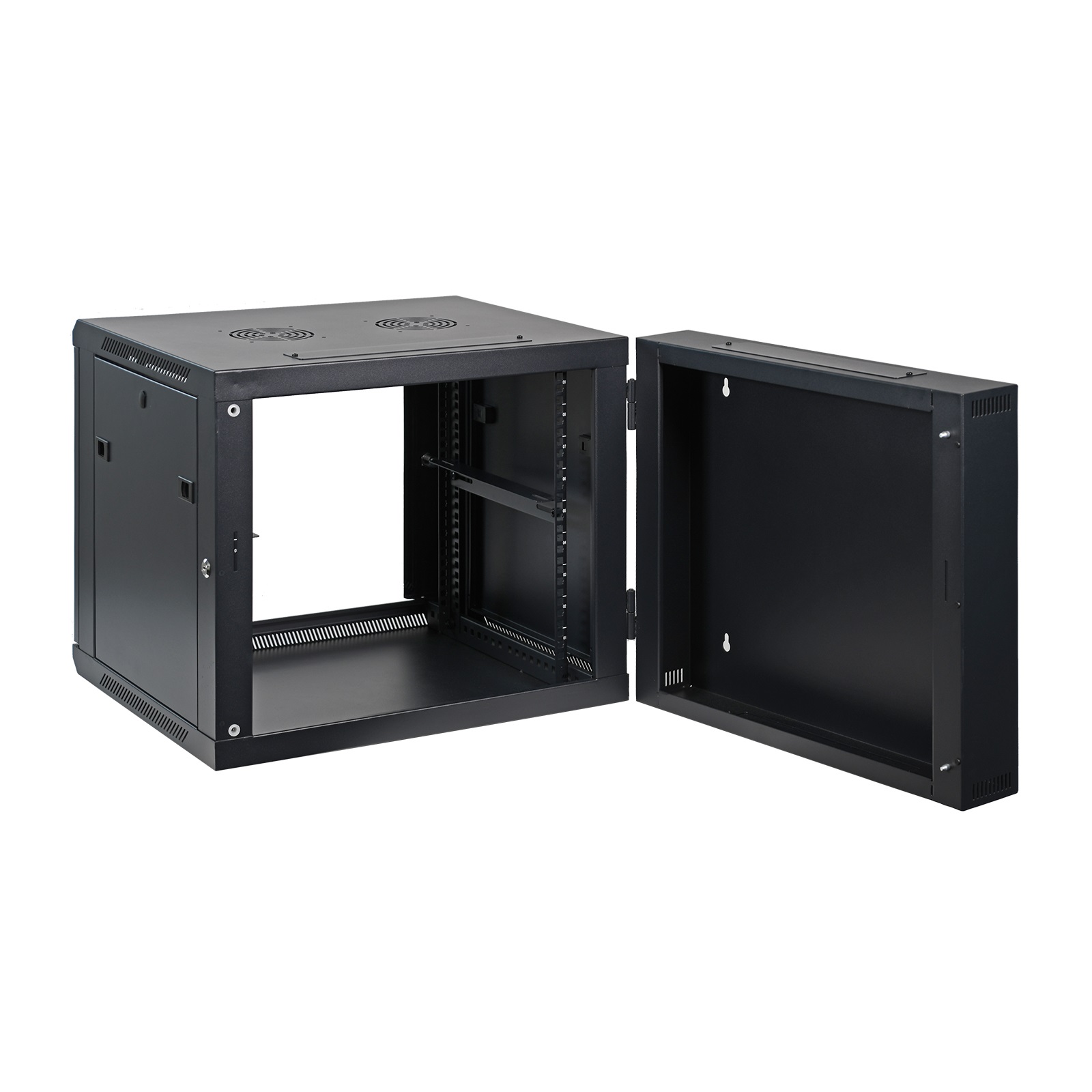

hinge at the rear and can be swung away from the wall, providing easy access to equipment and cabling during installaon and
maintenance. The front and rear doors of the cabinet can be locked securely, and the vented frames and optional cooling fans
provide optimal air ventilation. Ships fully assembled for quick installation.
Features:
Specs:
| Type: | Enclosure |
| Style: | Wall-Mount |
| Rack Height: | 9U |
| Rack Depth (in. / mm): | 23.6 / 600 |
| Maximum Device Depth (in. / mm): | 21.7 / 550 |
| Front Door Type: | Tempered Glass |
| Load capacity (lbs / kg): | 132 / 60 |
| Number of vertical mounting rails: | 4 |
| Number of L brackets: | 2 |
| Shelves: | No |
| Cable access: | Top, Bottom, |
| Unit Dimensions (H x W x D / in.): | 23.5 x 23.5 x 20 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
| Weight | 79.07 lbs |
|---|---|
| Fiber Count | 2F |
| Material | Stainless Steel |
| Unit | 9U |
| Length | 3.5mm |
