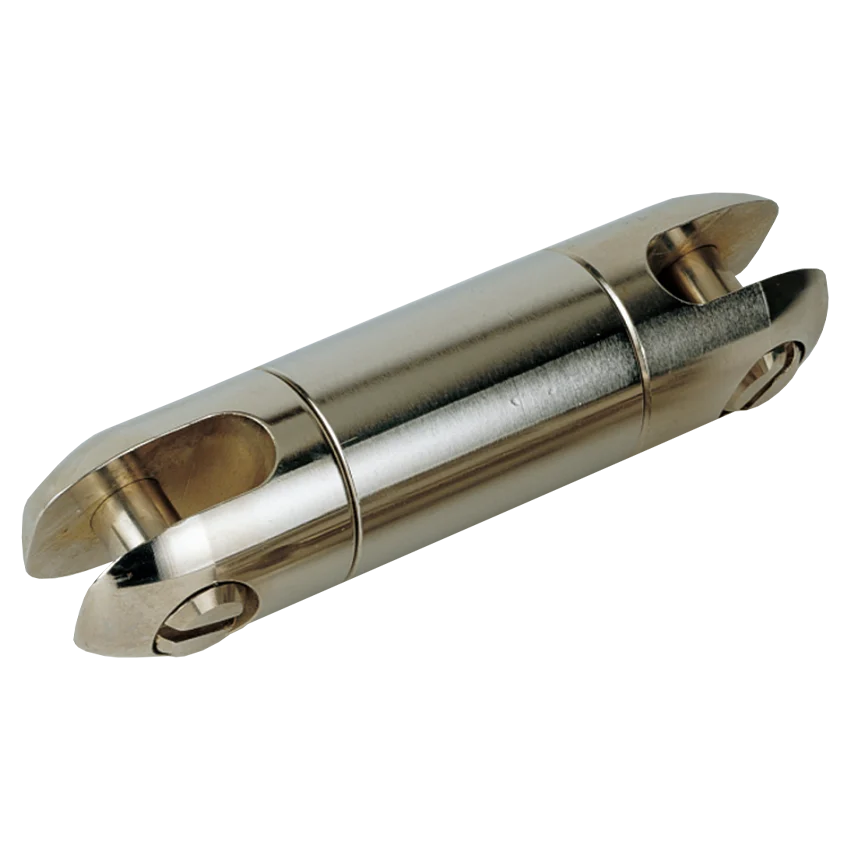

808 Champion Swivels – 3/8″ Swivel – 600 lbs. (2,669 N) – Condux
Designed specifically for underground and overhead cable pulling applications. Can handle all types of utility cables. Precision machined from high-strength stainless steel. Clevis pin is easily replaceable.
NOTE: Swivels are not designed to run around bullwheels. Always verify that the swivel size is sized to the pulling harness or grip prior to ordering.
CAUTION: 808 Champion Swivels are to be used for cable stringing or pulling only. 808 Champion Swivels are not to be used for directional drilling.
* 3:1 Safety Factor
**5:1 Safety Factor
*** Comes standard with hex head clevis pin.
Description
Ordering Information
|  | Working Load | Dimensions | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| *Underground | **Aerial | A | B | C | D | E | F | G | ||||||||||
| Part Number | (lbs) | (N) | (lbs.) | (N) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 08017000 | 600 | 2,669 | 360 | 1,601 | 5/8 | 16 | 0.28 | 7 | 3.56 | 90 | 0.79 | 20 | 0.25 | 6 | 0.37 | 9 | 0.295 | 7 |
| 08016000 | 2,500 | 11,120 | 1,500 | 6,672 | 7/8 | 22 | 0.38 | 10 | 4.51 | 115 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 0.375 | 10 |
| 08016000H*** | 2,500 | 11,120 | 1,500 | 6,672 | 7/8 | 22 | 0.38 | 10 | 4.51 | 115 | 1.06 | 27 | 0.31 | 8 | 0.53 | 13 | 0.375 | 10 |
| 08080912 | 5,000 | 22,241 | 3,000 | 13,344 | 1 1/4 | 32 | 0.56 | 14 | 5.44 | 138 | 1.34 | 34 | 0.37 | 9 | 0.59 | 15 | 0.565 | 14 |
| 08080912H*** | 5,000 | 22,241 | 3,000 | 13,344 | 1 1/4 | 32 | 0.56 | 14 | 5.44 | 138 | 1.34 | 34 | 0.37 | 9 | 0.59 | 15 | 0.565 | 14 |
| 08080913 | 7,000 | 31,137 | 4,200 | 18,682 | 1 3/8 | 35 | 0.56 | 14 | 5.25 | 133 | 1.31 | 33 | 0.44 | 11 | 0.56 | 14 | 0.53 | 13 |
| 08080913H*** | 7,000 | 31,137 | 4,200 | 18,682 | 1 3/8 | 35 | 0.56 | 14 | 5.25 | 133 | 1.31 | 33 | 0.44 | 11 | 0.56 | 14 | 0.53 | 13 |
| 08080916 | 10,000 | 44,482 | 6,000 | 26,689 | 1 5/8 | 41 | 0.63 | 16 | 6.51 | 165 | 1.59 | 40 | 0.56 | 14 | 0.78 | 20 | 0.53 | 13 |
| 08080916H*** | 10,000 | 44,482 | 6,000 | 26,689 | 1 5/8 | 41 | 0.63 | 16 | 6.51 | 165 | 1.59 | 40 | 0.56 | 14 | 0.78 | 20 | 0.53 | 13 |
| 08080920 | 15,000 | 66,723 | 9,000 | 40,033 | 2 | 51 | 0.75 | 19 | 6.99 | 178 | 1.78 | 45 | 0.62 | 16 | 0.72 | 18 | 0.75 | 18 |
| 08080920H*** | 15,000 | 66,723 | 9,000 | 40,033 | 2 | 51 | 0.75 | 19 | 6.99 | 178 | 1.78 | 45 | 0.62 | 16 | 0.72 | 18 | 0.75 | 18 |
| 08080925 | 25,000 | 111,205 | 15,000 | 66,723 | 2 1/2 | 64 | 1 | 25 | 10.23 | 260 | 2.8 | 71 | 0.87 | 22 | 1.23 | 31 | 1.135 | 29 |
| 08080925H*** | 25,000 | 111,205 | 15,000 | 66,723 | 2 1/2 | 64 | 1 | 25 | 10.23 | 260 | 2.8 | 71 | 0.87 | 22 | 1.23 | 31 | 1.135 | 29 |
| 08080930 | 30,000 | 133,446 | 18,000 | 80,068 | 3 | 76 | 1.31 | 33 | 12.04 | 306 | 3.56 | 90 | 1.12 | 28 | 1.37 | 35 | 1.63 | 41 |
Swivel Compatibility Chart
|  | Swivel Size | Pulling Eye Size Range | ‎ | Pulling Harnesses | |||
|---|---|---|---|---|---|---|---|
| Swivel Part Number | (in) | (mm) | Standard Head Reusable Power Pulling Eyes Cable Size | Fixed Head Innerduct Pulling Eyes (Part Number) | Eye to Eye Connectors Size (Part Number) | Separate Leg Ends | Large Front Link Size (Part Number) |
| 08017000 | 5/8 | 16 | – | – | – | 1/8″, 1/4″ | – |
| 08016000 | 7/8 | 22 | – | – | – | 1/8″, 1/4″ | – |
| 08080912 | 1-1/4 | 32 | 1/0 AWG – 250 kcmil | 08914110, 08914120, 08914130, 08914140 | (3/8″) 08050300 (1/2″) 08050500 |
All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08080913 | 1-3/8 | 35 | 1/0 AWG – 250 kcmil | 08914110, 08914120, 08914130, 08914140 | (3/8″) 08050300 | All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08080916 | 1-5/8 | 41 | – | – | (3/8″) 08050300 (1/2″) 08050500 |
All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08080920 | 2 | 51 | 350 kcmil – 1,000 kcmil | – | All | All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08080925 | 2-1/2 | 64 | 1250 kcmil – 3,000 kcmil | – | (1/2″) 08050500 (5/8″) 08050501 |
All Cables | All |
| 08080930 | 3 | 76 | – | – | (1/2″) 08050500 (5/8″) 08050501 |
All Cables | All |
| 08210007 | 7/8 | 22 | – | – | – | 1/8″, 1/4″ | – |
| 08210012 | 1-1/4 | 32 | 1/0 AWG – 250 kcmil | All | (3/8″) 08050300 (1/2″) 08050500 |
All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08210014 | 1-7/16 | 37 | 1/0 AWG – 250 kcmil | All | (3/8″) 08050300 (1/2″) 08050500 |
All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (1/2″-08549331) |
| 08210018 | 1-7/8 | 48 | 350 kcmil – 1,000 kcmil | – | All | All | (1/8″-08549200) (1/4″-08549230, 08549325, 08569910, 08549326) (3/8″-08549333, 08549329) (1/2″-08549331) |
