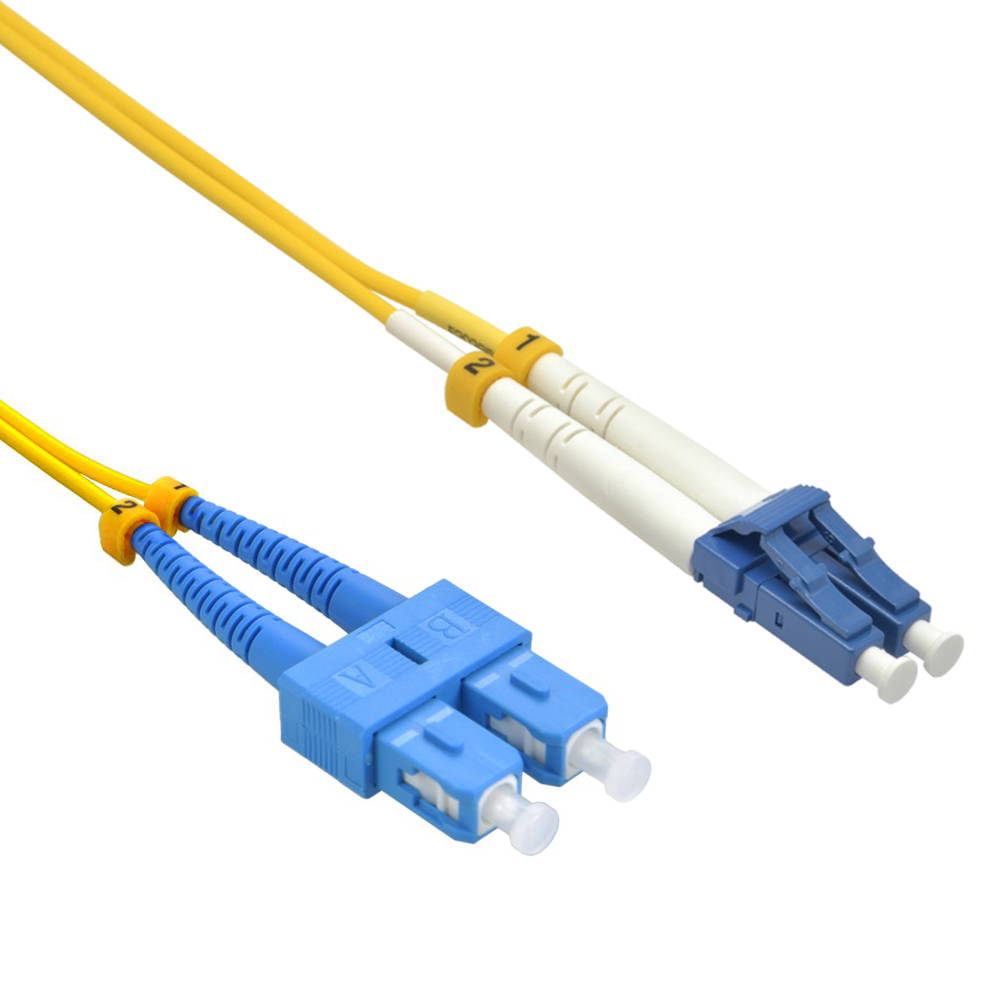

40m LC/UPC-SC/UPC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable
$9.43
Description

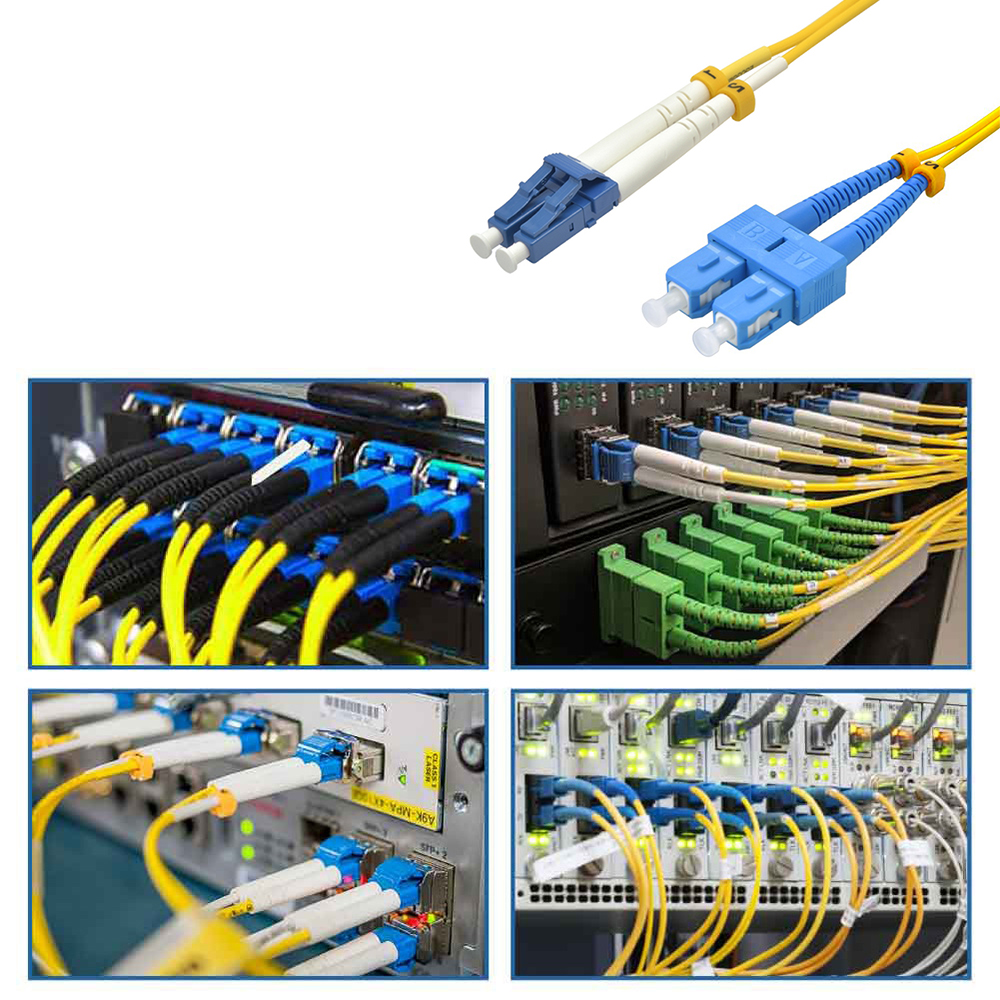

* Used to connect patch panels and/or network devices that utilize LC to SC style connectors and require 9/125 Single mode cabling
- 100% tested
- Test report included in each cable
- 1/2 Markers easily identify the connector on each end of the assembly
- Connectors utilize a UPC polish
| Connector Type | LC-SC Duplex Singlemode |
| Polishing | UPC |
| Return Loss | 55dB |
| Insertion Loss | 0.30dB |
| Ferrule Material | Ceramic (zirconia) |
| Ferrule Diameter | 1.25 mm / 2.5 mm |
| Body type | Duplex |
| Nominal Diameter Core | 9/125 µm |
| Operation Temperature Range | -20°C +70°C |
| Jacket Material | OFNR |
| Jacket Diameter | 2.0mm |
Additional information
| Weight | 0.7 lbs |
|---|---|
| Connector Type | LC/UPC-SC/UPC |
| Cable Type | Duplex |
| Fire Rating | CMR/OFNR |
| Fiber Count | 4F |
| Mode | Singlemode |
| AWG | 30 AWG |
| Length | 50ft |
