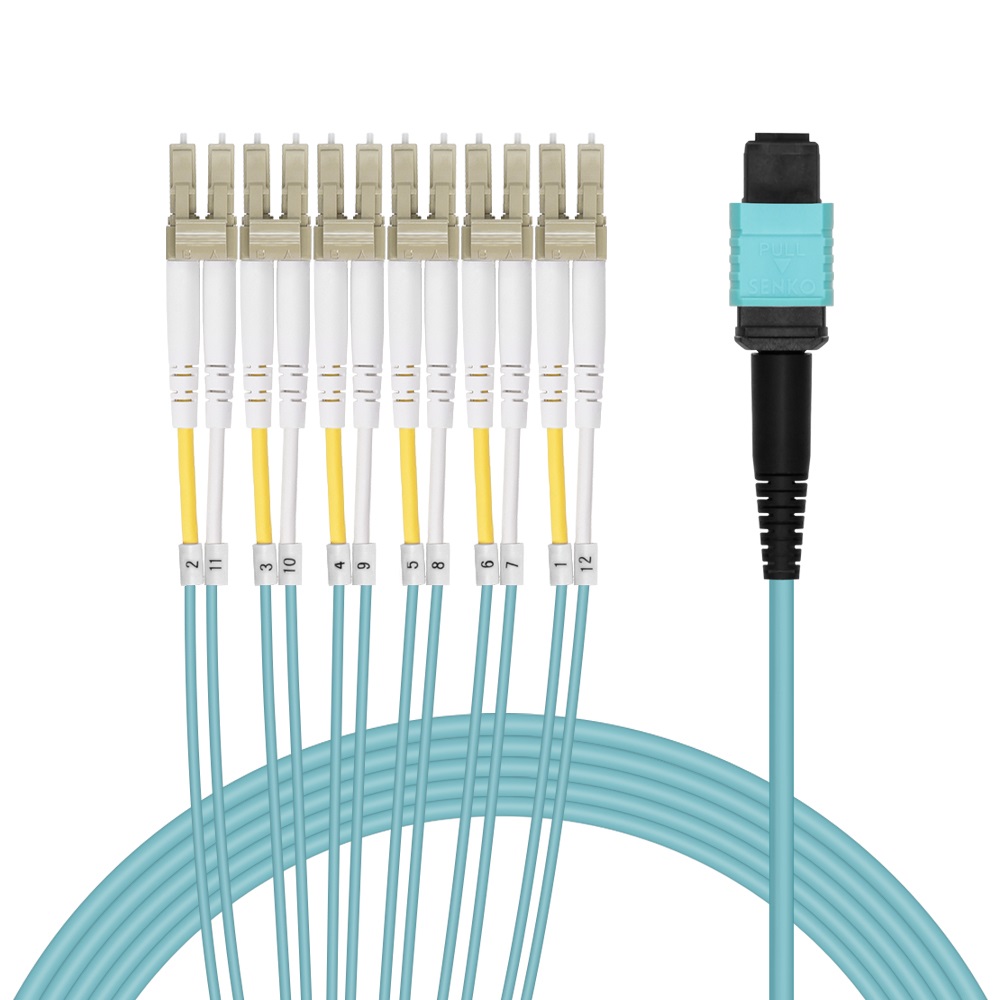

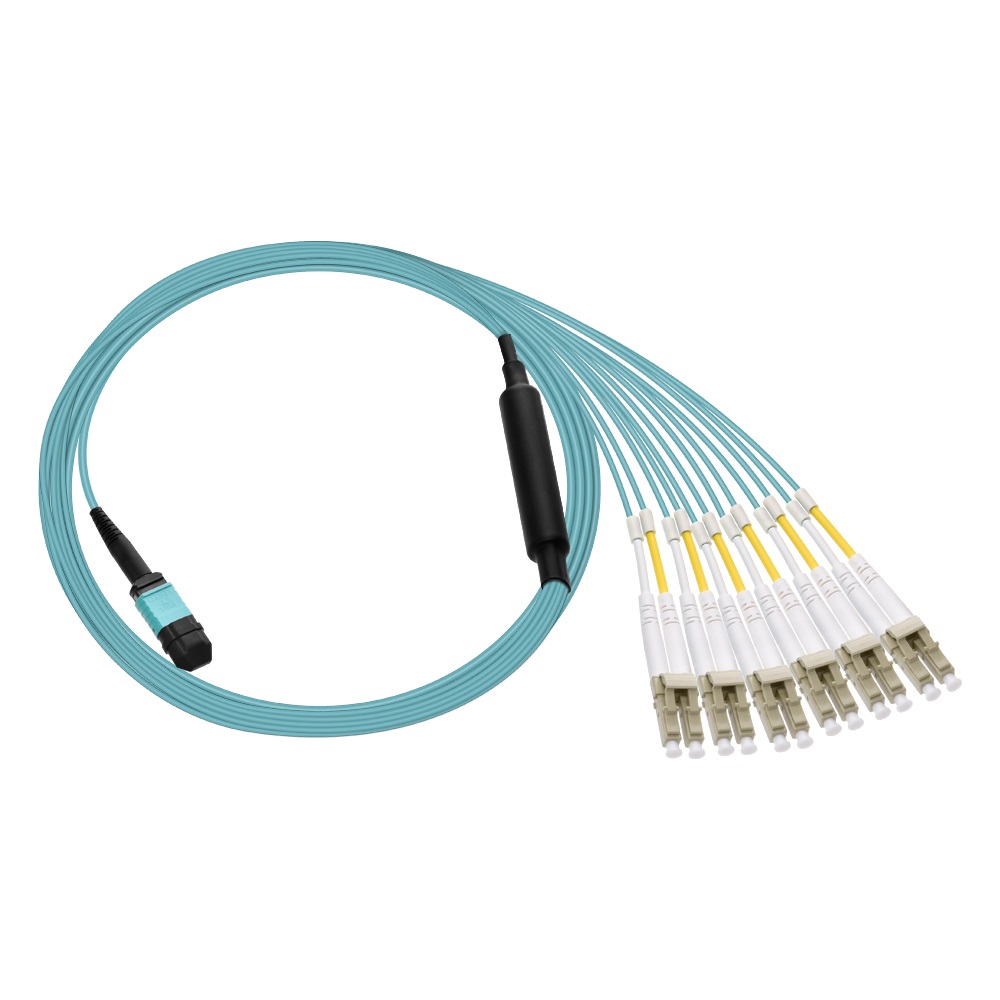

3m MPO OM4 to 12-Fiber to 6-LC Duplex Breakout Aqua OFNR
$27.52
Description

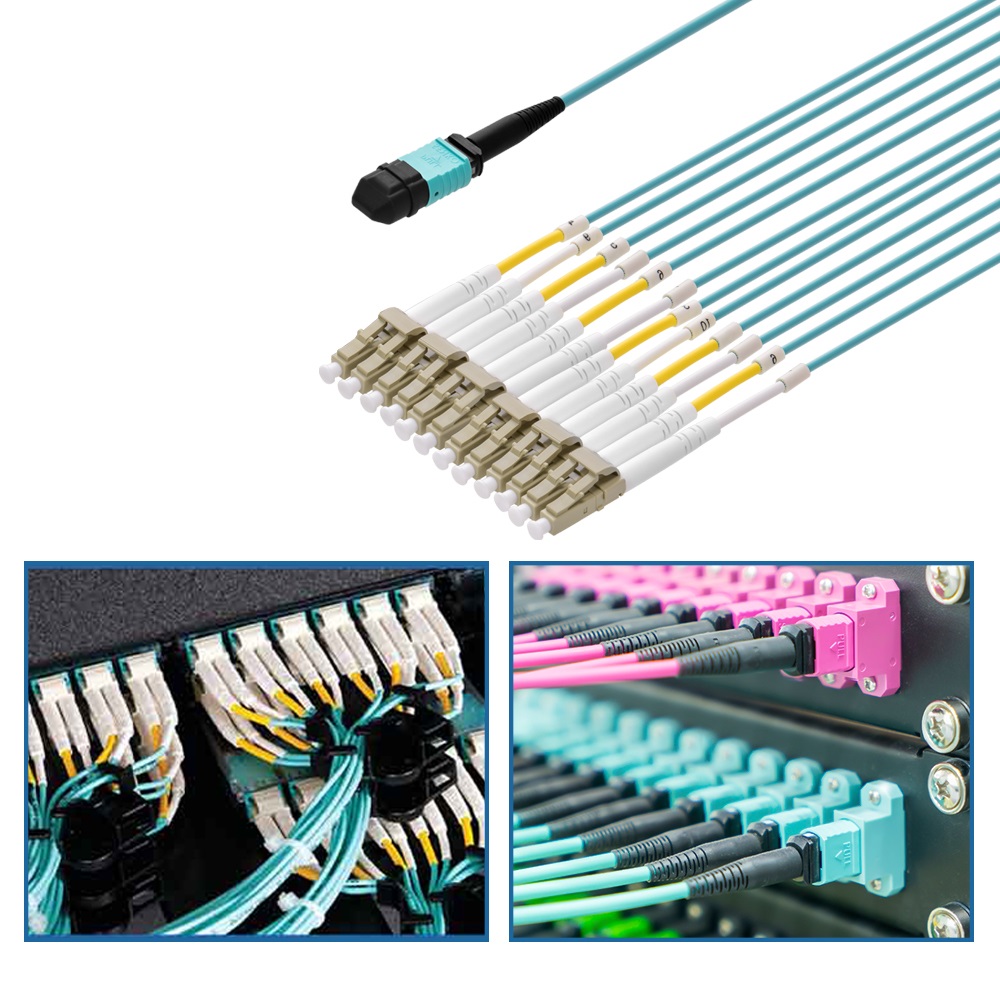

MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
| Connector Type | MPO Female to to 6-LC |
| Polishing | UPC |
| Return Loss | 20 dB |
| Insertion Loss | 0.35dB (0.15dB Typ.) |
| Jacket OD | 3mm |
| Fiber Mode | OM4 50/125m |
| 40/100G Ethernet Distance | 150m at 850nm |
| 10/100G Ethernet Distance | 400m at 850nm |
| Jacket Material | OFNR |
| Temperature Range | -20°C +70°C |
