36″ & 45″ Diameter Split Sheaves – 36″ w/ Hanger Brackets – Condux

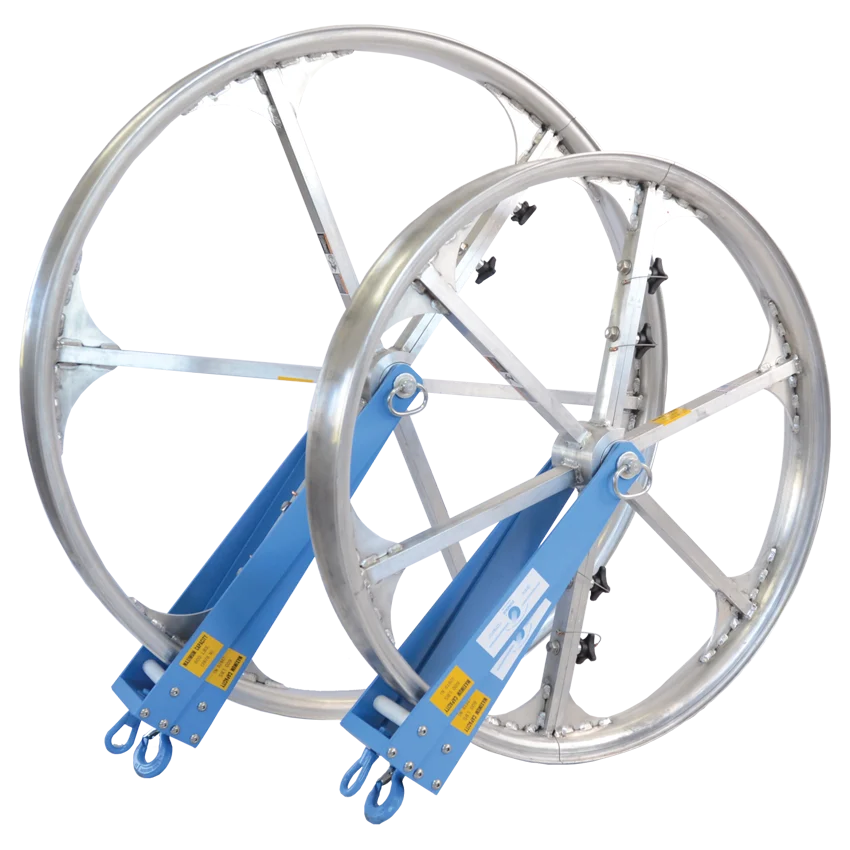

These larger diameter split sheaves are designed for safe installation of high fiber count cables in multiple applications. High fiber count cables require larger diameter service equipment so to not violate the minimum bend radius of the cable. Split sheaves can be easily carried below the surface in two pieces and then quickly assembled making them among the most versatile on the market and an ideal solution for mid-point installation situations. Available with or without hanger brackets adds even more flexibility to the installation process.
Features:
- Deep cable races that protect and cradle the cable on the sheave
- Meets minimum bend radius requirements of most fiber optic cables
- Alignment markings and 4 tethered thumb screws make reassembly fast
- Self-lubricating bearings
- Cable retention guide pins
Description
Ordering Information
| Part Number | Description | Max Fiber Cable Diameter | Sheave Land Width | Sheave Diameter | Weight | Rated Load |
|---|---|---|---|---|---|---|
| 08637500 | 36” Split Sheave | 0.9 in/2.3 cm | 3.3 in/8.3 cm | 36 in/91.4 cm | 31 lb/14 kg | 600 lb/272 kg |
| 08637501 | 36” Split Sheave w/ Hanger Brackets | 0.9 in/2.3 cm | 3.3 in/8.3 cm | 36 in/91.4 cm | 59 lb/27 kg | 600 lb/272 kg |
| 08637505 | 45” Split Sheave | 1.125 in/2.9 cm | 3.3 in/8.3 cm | 45 in/114.3 cm | 38 lb/17 kg | 600 lb/272 kg |
| 08637506 | 45” Split Sheave w/ Hanger Brackets | 1.125 in/2.9 cm | 3.3 in/8.3 cm | 45 in/114.3 cm | 69 lb/31 kg | 600 lb/272 kg |
