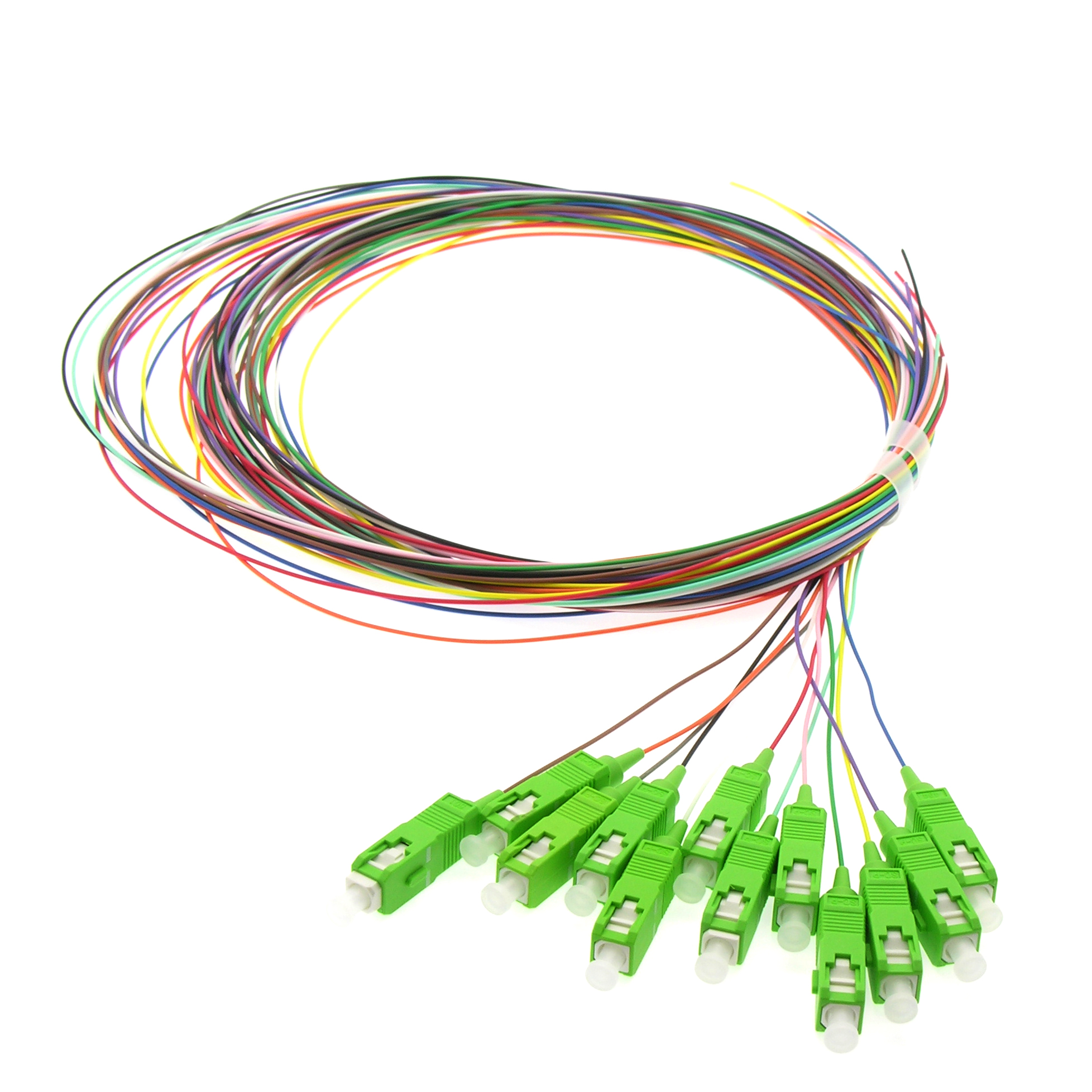

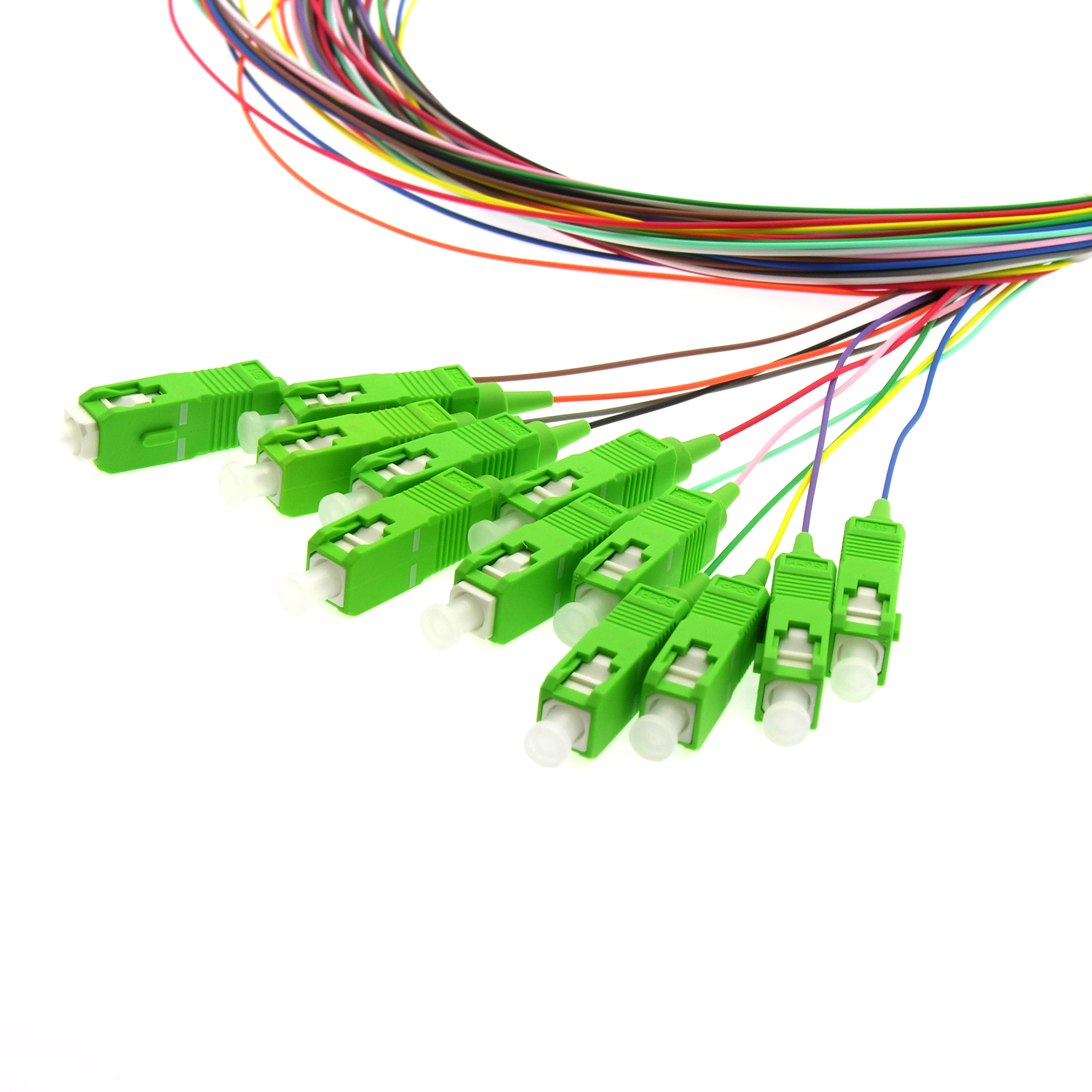

12-Pck 2m SC/APC Multicolor Pigtail
$8.59
Description
12 Fiber non-jacketed singlemode multicolor pigtails are ideal for fusion splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features
* Low insertion loss
* Low back reflection loss
* Ideal for telecommunication networks
* Meets ISO9001 and RoHs
| Connector Type | SC Singlemode |
| Polishing | APC |
| Fiber Count | 12 |
| Length | 2meter |
| Ferrule Material | Ceramic (zirconia) |
| Operation Temperature Range | -20°C +70°C |
| Jacketing | Non-Jacketed |
| OD | 0.9mm |
| Return Loss | 55 dB |
| Insertion Loss | 0.30 dB |
| Jacket Material | OFNR/LSZH |
| Color | Multicolor |
