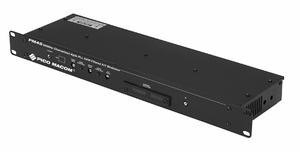

PM45 : 806 Mhz Channelized-Agile PPL SAW-Filtered A/V Modulator

Features

• 125 Channel Frequency Range 54~806 MHz (CATV 2~13, A1~A5, A~222, 89~125, UHF 14~69)
• SAW filtered for superior adjacent channel performance enables drop-in channel expansion
• 45 dBmV minimum output
• Composite audio-video IF loop provides compatibility with encoders, ghost cancelers and video override applications
• BTSC stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
• Audio and video over-modulation indicators for quick performance reference
• Front panel controls and test point enable easy setup and monitoring
• IRC and HRC offset available for frequency settings in systems using offset channels
• Auxiliary AC outlet for convenience

The Pico Macom PM45 is a professional grade phase-locked loop synthesized channelized-agile audio-video modulator. This modulator provides 45dBmV minimum output on CATV channels 2 to 125 (54-806 MHz) while accommodating HRC and IRC offset frequencies. The PM45 features a composite audio-video IF loop, which provides compatiblility with encoders, ghost cancellers, and video-override applications. The unit can be reconfigured to any output channel by qualified service centers. This cost effective modulator can be used to expand systems using PCM55, PCM555AW and PLM55 modulators beyond 300MHz, where the expansion does not require modulators with higher output levels. The PM45 provides the greater frequency stability and higher adjacent channel performance required in such expansions. The modulator is equipped with a pre-emphasis disable switch which enables pass-through of high-fidelity BTSC stereo signals where available. Its phase-locked loop frequency control, and superior SAW filtering enhances stability, minimizes adjacent channel interference and assures accurate and spurious free output. Superior out-offband carrier-to-noise performance is achieved through band-pass filtering at the output amplifier. The PM45 is shipped with all internal adjustments preset. FCC Docket 21006 offsets are standard. Pico Macom backs up this product with its industry leading 5-year warranty.

Specifications

RF

Audio

Video

*NOTE: Meets FCC group delay predistortion correction requirement for color transmission.

General

PCFM : Agile FM Stereo Audio Modulator	PFAM550 : 500Mhz Agile Audio/Video Modulator
PFAM550MT : 550MHz CATV Microprocessor-Control Agile A/V Modulator	PFAM550SUB : 550Mhz Sub-Band Extended Agile A/V Modulator
PCM55 SAW : 550MHz Channelized-Agile PLL SAW-filtered A/V Modulator	PCM55 SAW-HYPER : 55 dB Saw Filter Modulator
PCM55-SUB : 216 MHz Single Channel A/V Sub Band Modulator	PLM860SAW : 860MHz Channelized-Agile PLL SAW Filtered A/V Modulator
PM45 : 806 Mhz Channelized-Agile PPL SAW-Filtered A/V Modulator	PM45-UHF : 45 dB IF-Loop Modulator
