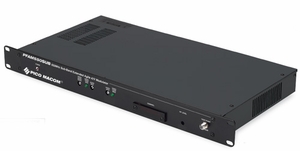

PFAM550 : 500Mhz Agile Audio/Video Modulator
Features
- 60dBmV minimum output for a 64dB in-band carrier to noise ratio provides superior picture quality
- 82 Channel Frequency Range 54~550MHz (CATV 2~13, A1~A5, A~PPP)
- Sub-band operation enables remote TV origination, making it ideal for institutional cable systems
- Front panel DIP switch-controlled phase-locked loop for solid drift-free output on any channel
- SAW filtered for superior adjacent channel performance enables drop-in channel expansion
- Front panel test point for easy RF level system monitoring
- Composite audio-video IF loop provides compatibility with encoders, ghost cancelers and video-override applications
- IRC and HRC offsets available allow for easy frequency settings in systems using offset channels
- Double heterodyne conversion provides superior spurious harmonic output suppression
- BTSC stereo compatible pre-emphasis disable switch provides pass-through forstereo signals
- UL Approved
Specifications
| Output Frequency Range | 5~550MHz |
|---|---|
| Tuning | Agile |
| RF Output Level (min) | 57dBmV |
| Carrier to Noise (In-band) | 64dB |
| Carrier to Noise (Out of band) | 66dB |
| Spurious Output | >65dB |
| Composite IF Output Level | 30dBmV |
| Video Frequency Response | ±1.5dB |
| Video Signal to Noise | 53dB |
| Audio Input Type | Monaural/MTS Baseband |
| Audio Frequency Response | 50~15,000Hz |
| Video Input Connection | 75Ω F-Female |
| Audio Input Connection | 5KΩ F-Female Unbalanced |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | 115~240VAC |
| Power Output Receptacle | Yes |
| Dimensions | 19˝(L) x 12˝(D) x 1.75˝(H) |
| Weight | 8.5 lbs. |
