It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

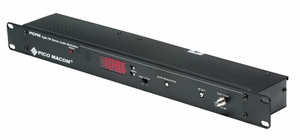

PCFM : Agile FM Stereo Audio Modulator
Features
- 35dBmV minimum adjustable output for optimum carrier to noise performance
- Frequency Range 88~108MHz (FM Band)
- Agile push-button tuning and digital display for easy frequency selection
- Non-volatile memory for last channel recall in the event of power failure
- Switch-selectable between stereo and monaural operation
- Signal to noise ratio >60dB provides superior sound quality
- Front panel test point for easy RF level system monitoring
- Auxiliary AC outlet for convenience
- UL Approved
Specifications
| Output Frequency Range | 88~108MHz |
|---|---|
| Tuning | Agile |
| RF Output Level (min) | 35dBmV |
| Spurious Output | >65dB |
| Audio Input Type | Monaural/Stereo |
| Audio Frequency | |
| Response | 50~15,000Hz |
| Audio Input Connection | 600Ω F-Female Unbalanced |
| RF Output Connection | 75Ω F-Female |
| Voltage Input | 115VAC |
| Power Output Receptacle | Yes |
| Dimensions | 19˝(L) x 3˝(D) x 1.75˝(H) |
| Weight | 3.6 lbs. |
