Signamax patch panels are offered in a variety of configurations for voice, data, audio and video distribution cabling applications for TIA/EIA Categories 3, 5e and 6. We provide users with advanced product designs and features for effective horizontal cabling.

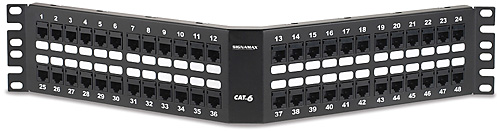

Category 6 UTP Angled Patch Panel
Category 6 Angled Patch Panels are designed to the same high level performance as our standard category 6 panels. Angled panels are supplied preloaded with black category 6 jacks or can be ordered unloaded for field configuration. These panels have the added feature of an angled design to help route patch cords to vertical rack or cabinet mounted cable management. This feature eliminates the need for horizontal cable management panels, which provides additional rack space in high density applications.

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-B.2-10: Meets or exceeds category 6A (1-500 MHz) specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (UTP)

  • WIRING SCHEME

ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • ELECTRICAL

Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 Mohm
IDC contact resistance: max 2.5 MOhm
Current rating: see figure

  • MECHANICAL

Total contact force: min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles with FCC compliant 8p8c plug

  • CONSTRUCTION

Panel: steel/high-impact black epoxy-powder anticorrosive paint
Jack housing: high impact thermoplastic, UL94V-0 fire retardant
Jack contacts: phosphor bronze alloy plated with min 50 μin of gold over 70-100 μin of nickel plating
Jack IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy
  • JACK TYPE

8p8c (8-position, 8-contact) "RJ45" type

  • WIRE GAUGE

22-24 AWG (0.644 - 0.511 mm)

  • MOUNTING DIMENSIONS

Panel: 19" rack-mountable
114 mm (4.5 in) deep
44.45 mm (1.75 in) (1 RMU) high (24458A-C6A)
88.90 mm (3.50 in) (2 RMU) high (48458A-C6A)
Jacks: W 16.9 mm D 31.3 mm H 19.3 mm
W 0.67 in D 1.23 in H 0.76 in

  • ENVIRONMENTAL CONDITIONS

Storage: -40 °C - +70 °C (-40 °F - +158 °F)
Operation: -10 °C - +60 °C (+14 °F - +140 °F)
RH (operation): max non-condensing 93 %

  • COMPLIANCE

ANSI/TIA/EIA-568-B.2-10, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100,
100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

KEY FEATURES

  • Connector transmission performance meets or exceeds TIA-568-B.2-10 performance specifications
  • Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by
    insertion of 4 or 6 position plugs
  • Angled design eliminates the need for cable management panels providing additional rack space
  • Rear termination is made quick and easy using a 110 type connector compatible with an industry standard single
    position 110 or Krone termination tool
  • Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability
  • Maximum strength and durability construction

Part Number

Description
24458A-C6A 24-Port Category 6A 10G Angled Patch Panel, T568A/B Wiring, 1.75" High

48458A-C6A

48-Port Category 6A 10G Angled Patch Panel, T568A/B Wiring, 3.50" High

24U-HDMMP-A-C6A

24-Port Category 6A 10G Angled Field-Configurable Unloaded Patch Panel, 1.75" High

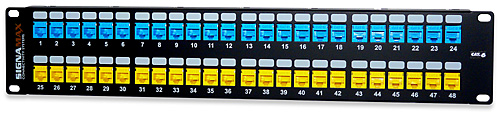

48U-HDMMP-A-C6A

48-Port Category 6A 10G Angled Field-Configurable Unloaded Patch Panel, 1.75" High
