It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

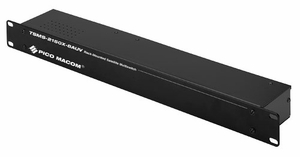

TSMS-2150X-8AUV : Rack-Mounted 3 x 8 Satellite Multiswitch (8 Outputs)
Features
- Wide frequency range 40~2150MHz
- PIN diode matrix reduces polarity transfer time and digital artifacts, providing consistent picture quality
- 500 mA voltage power pass-through reduces cost by providing satellite receiver path for LNB power
- Built-in amplifier compensates for insertion losses, reducing need of external amplification
- External UL Approved power supply reduces heat buildup, thus increasing unit life
Specifications
| Frequency | Insertion Loss | Isolation (input-input) | Isolation (output-output) |
|---|---|---|---|
| 40~860MHz 950~1750MHz 1750~2150MHz |
4dB 6dB 10dB |
25dB 25dB 25dB |
14dB 14dB 14dB |
| RHCP Switching Voltage | 13/14VDC |
|---|---|
| LHCP Switching Voltage | 17/18VDC |
| LNB Current Capacity | 500mA |
| Dimensions | 19˝(L) x 2.87˝(D)x 1.75˝(H) |
| Weight | 4.5 lbs. |
