Pico Macom Broadband - TSMS2150X16AUV - Rack Mounted 2x16 Satellite Multiswitch 16 Outputs - Rack Mounted Multi Switches - Pico Macom Products - Macom Professional Series - CableNet Connectivity - Active Distribution Components - Connectivity and Drop Components - Headend and Electronics - Fiber Optic - Passive Distribution Components - Installation Tools and Instrumentation
It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

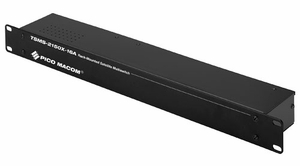

TSMS-2150X-16AUV : Rack-Mounted 2x16 Satellite Multiswitch (16 Outputs)
Features
- Wide frequency range 950~2150MHz
- 3 Inport Simple interface design provides 2 satellite polarity inputs and 16 outputs, for quick installation
- 3 Inport Simple interface design provides 2 satellite polarity inputs plus 1 off-air antenna and 8 outputs,for quick installation
- Antenna signal combines with satellite on output, eliminating external combining and reducing cost and clutter
- PIN diode matrix reduces polarity transfer time and digital artifacts, providing consistent picture quality
- 500 mA voltage power pass-through reduces cost by providing satellite receiver path for LNB power
- Built-in amplifier compensates for insertion losses, reducing need of external amplification
- External UL Approved power supply reduces heat buildup, thus increasing unit life
Specifications
| Frequency | Insertion Loss | Isolation (input-input) | Isolation (output-output) |
|---|---|---|---|
| 950~1750MHz 1750~205MHz 2050~2150MHz |
8dB 13dB 16dB |
20dB 20dB 20dB |
12dB 12dB 12dB |
| RHCP Switching Voltage | 13/14VDC |
|---|---|
| LHCP Switching Voltage | 17/18VDC |
| LNB Current Capacity | 500mA |
| Dimensions | 19˝(L) x 2.87˝(D)x 1.75˝(H) |
| Weight | 5.1 lbs. |
