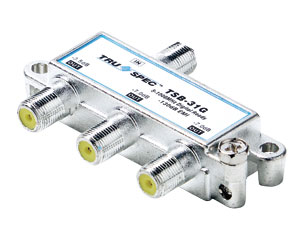

TSB-31G : 3 Port Splitter DC Blocking All Ports

Features

Digital-Ready Broadband 5~1000MHz frequency range

Solder-back cover-plate provides maximum EMI-RFI shielding >-130dB, eliminating signal ingress to guarantee distortion-free pictures

High-performance printed board circuitry provides low intermodulation distortion >-100dB to ensure excellent digital performance

High isolation >-40dB at 5~45MHz sub-bands provides for high level upstream signals

TSB-1G series features capacitor coupling circuitry at all ports for effective DC voltage blocking. TSB-1GDC series provide DC power passage to one port while blocking DC power to all other ports, providing for remote powering applications and powering the antenna preamplifier directly from the headend

1-inch centered 1⁄2˝ long precision machined F-connector threads ensure improved port-to-connector interface and accommodate external security devices

High retention seizing pins provide improved connectivity to connector center lead

Specifications

Frequency

5-42MHz

42-860MHz

860-1000MHz

Insertion Loss (max. dB)

3.4/7.2

4.0/7.5

4.0/7.8

Isolation (min. dB)

Input/Output Return Loss (min. dB)
