It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

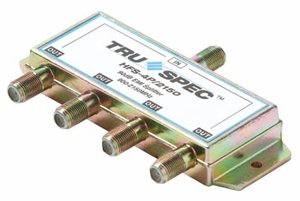

HFS-4P-2150 : 4-Port 2150MHz 90dB Splitter, All Ports Power Passing

Features

High frequency range 900~2150MHz L-Band suitable for analog and digital satellite applications

HFS series provide DC power passage to one port while blocking DC power to all other ports for improved hum modulation and Intermodulation performance. HFS-P series provide DC power passage to all ports for remote LNB-powering applications and powering the antenna preamplifier directly from the headend

High-performance printed board circuitry provides improved hum modulation and intermodulation parameters to ensure superior signal quality

Yellow-chromate plated zinc-alloy diecast housing ensures excellent ground bonding and long corrosion-free service life in indoor/outdoor applications

Epoxy-sealed back cover provides effective EMI-RFI shielding >-70dB, eliminating signal ingress to provide distortion-free pictures

1-inch centered 3⁄8˝ long precision machined F-connector threads ensure improved port-to-connector interface and accommodate external security devices

Specifications

Frequency

900MHz

1150MHz

1350MHz

1550MHz

1750MHz

2150MHz

Insertion Loss (max. dB)

6.7

7.1

7.8
