Fiber
Optic Enclosures-Fiber Optic Patch Panels- Wall Mount Fiber Optic Patch Panels-
24 Port Fiber Optic Patch Panels-Indoor Fiber Optic Patch Panels - 48 Port Fiber
Optic Patch Panels-72 Port Fiber Optic Patch Panels- 144 Port Patch Panels- Rack
Mount Fiber Optic Patch Panels- Fiber Optic Frames- Fiber Optic Main Distribution
Frame -Network Bays- Open Bay Frame Systems
American Tele Data
Tele Data
carries a complete line of fiber optic patch panels and fiber optic enclosures
that are compatible with the Corning Fiber Optic Enclosure Line of products including
our Corning (compatible) fiber optic patch panels, outdoor fiber optic enclosures,wallmount
fiber optic panels and rackmount fiber optic patch panel fiber optic enclosures
which are designed for direct termination of up to 144 fibers. We carry a full
line of fiber optic enclosures and fiber optic patch panels from Century, Emerson-Fiberconn,
Fiber Connections, Corning, ADC and others.The RAC series patch panel accommodates
up to 12 modular panels and is equipped with routing guides to limit bend radius
and enhance strain-relief control. The heavy-duty metal body provides excellent
protection for the inside fibers. We also offer a large variety of fiber optic
connector adapters that are offered to meet your specific requirements. MTP module
cassettes and module pre-assemblies are available for easy fiber installation
and management. Fiber-Conn's rackmount patch enclosures are designed for direct
termination of up to 144 fibers. The RAC series accommodates up to 12 modular
panels and is equipped with routing guides to limit bend radius and enhance strain-relief
control. The heavy-duty metal body provides excellent protection for the inside
fibers. A large variety of connector adapters are offered to meet your specific
requirements. MTP module cassettes and module pre-assemblies are available for
easy fiber installation and management.
We
also specialize in custom fiber optic enclosures- call us or more information
at (866) 342-3721 for all you fiber optic patch panel and fiber optic enclosure
needs. Remember- we meet or beat all USA Based Pricing!
West
Coast (866) 342-3721-------East
Coast (866) 650-DATA
We Supply FTTH Projects-SBC-Verizon
Fiber To The Curb/Home Fiber Optic-OSP-Fiber Test Equipment
AFL LL-500
Optical Splicing & Distribution Enclosure
AFL Complete Product Line Fiber Optic Catalogue-Click Here For PDF
The Optical Entrance Enclosures (OEE) are
designed to provide a convenient splicing and interconnection location
for outside plant cabling entering a Central Office (CO), Controlled
Environmental Vault (CEV), or customer location. Each unit is designed
to allow the entrance and management of up to 60 cables for splicing
and interconnecting.
The Optical Entrance Enclosures (OEE) are designed to provide a convenient splicing and interconnection location for outside plant cabling entering a Central Office (CO), Controlled Environmental Vault (CEV), or customer location. Each unit is designed to allow the entrance and management of up to 60 cables for splicing and interconnecting. Cables from termination locations and the outside plant are easily installed and managed. Access to individual fiber splices and fiber bundles are made easy by splice tray and fiber management designs.
Features:
• |
Manages multiple cable enter and exit facilities |
• |
Each splice tray handles up to 48 single fusion or 144 mass fusion splices |
• |
Enclosures for indoor or outdoor NEMA 3 applications |
• |
Internal ground bar and pass through ground lugs |
• |
Rated NEMA Type 3 |
West Coast (866) FIBER-21 --(866) 342-3721- East Coast (866) 650-3282
Features:
• |
Independent cable strain relief system |
• |
Cable entry/exit grommet seals |
• |
Fiber routing system |
• |
Splice tray support system |
• |
Hinged cover |
• |
Supports optional Interconnect Modules |
• |
Interconnect Module supports up to 12 SC bulkhead adapters |
• |
Accomodates “Field Couplers” with optional Splitter housing Attachment (P/N 91944-00) |
• |
Secured with a standard padlock |
• |
4 cable ports with standard grommets |
• |
8 cable ports with optional expansion kits |
American Tele Data CARRIES A Complete Range Of Fiber Optical Enclosures-Fiber Distribution Enclosures-Optical Entrance Enclosures
Front & Rear Loading Fiber Optic Patch Panels
Our new fiber optic enclosures by Contech and fiber patch panels are available in multiple configurations with high density port counts in a minimum of space, which provide an extremely organized above the floor infrastructure and manageable cable reconfiguration. ConTech features a 256 port high density panel with either LC, MT-RJ, or MU connector configurations in the same foot print for migration ease from one connector style to another. Also available are high density 12 to 48 port 1 rack unit panels with ribbon array connectivity MP or MTP connectors
Front & Rear Mounted Fiber Optic Enclosures
36
Port Rack Mount Fiber Optic Enclosure-
Rack Mount Fiber Patch Panel Part No. ATDRAC-1X- Price $87.00
Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
Weight (unloaded):
10.3 lbs.
Port Capacity: 6-36
Features: 1U rackmount can be loaded with
up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19''
or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front
and at rear with ¼ turn latches. Top lid removable at both front and rear.
Cable management spools in the rear of the enclosure and cable management rings
to the front for jumper management. Sliding tray for access to both front and
rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with
additional cable management, label holders and screws for securing to rack and
top panels. Labeling kit included for clear and precise identification of ports.
Lead time: In Stock, Immediate Shipment
ATD
19” Rack Mount Fiber
Optic Enclosure
The
12 Port and 24 Port Rack Mount Enclosures from American Tele Data
are used to house
fiber terminations and accommodate patching of fiber links.
The rear
panel workspace has two cable retention rings for storage of excess fiber.
-
Enclosure
is constructed of 16 gauge steel with convenient swivel out base for easy access
to fiber optic cables.
-
Call
ATD
at 1-866-342-3721
to order in black 16 gauge steel.
Part
No. ATDRAC-12-OP ATD19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs
) Price $ 56.00
Part
No. ATDRAC-24-OP American Tele Data24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs )
Price $ 75.00
New
is a ATD-RS24 and American Tele DataF1-RS72
rack mount splice and termination enclosure. Allows for patching on top and convenient
organization of splice trays in the bottom shelf. Both 24 and 72 patch and splice
versions are available. Call American Tele Dataat (866) 342-3721 to order in black 16 gauge
steel. .
-
Enclosure
is constructed of 16 gauge steel with convenient swivel out base for easy access
to fiber optic cables.
-
Call
American Tele Dataat (866) 342-3721
to order in black 16 gauge steel.
Part
No. ATDRS-24 American Tele Data19" 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs )
) Price $ 189.00 each
Part
No. ATDRS American Tele Data72 Port Rack Patch & Splice Enclosure ) Price $ 270.00
each

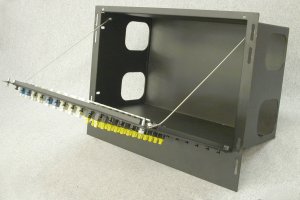

The
American Tele DataRack
Mount Enclosure is designed for low or high density patching applications. This
sturdy 16 gauge aluminum rack enclosure is available in 24, 48, 72, 96 and 144
port versions in standard beige. This unit provides a lift-off door with front
and back access to the slideout tray. The ATD
Rack Mount Enclosure features a smoked Lexan front door. Call
ATD
at 1-866-342-3721 to
order in black 16 gauge steel.
-
Enclosure
is constructed of 16 gauge steel with convenient swivel out base for easy access
to fiber optic cables.
-
Call American Tele Dataat (866) 342-3721 to order in black 16 gauge steel.
-
ATD-F1RM144X - 144 Port Rack Mount Enclosure, unloaded, holds
24 six packs, 13 1/2"D x 17 1/8"W x 15"H, 19lbs.
-
ATD-F1RM24XA
- 24 Port Rack Mount Enclosure, unloaded, holds 4 six packs, 13 1/4"D x 17 1/8"W
x 3 1/2"H, 12lbs.
-
ATD-F1RM48X - 48 Port Rack Mount Enclosure, unloaded, holds
6 eight packs, 13 1/4"D x 17 1/8"W x 4 3/4"H, 14lbs.
-
ATD-F1RM72X - 72 Port Rack Mount Enclosure, unloaded,
holds 12 six packs, 13 1/4"D x 17 1/8"W 7 1/8"H, 17lbs.
Part
No. ATD-F1RM144X- American Tele Data144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs
) Price $ 245.00 each
Part
No. ATD-F1RM24XA -American Tele Data24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs )
Price $ 99.00 each
Part
No. ATD-F1RM48X- American Tele Data48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs )
Price $ 112.00 each
Part
No.ATD-F1RM72X
ATDATD
72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price
$170.00 each
------------------------
FIS 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ---- --
24
port Rack Mount Fiber Optic Enclosure-
Rack Mount Fiber Optic Patch Panel Part No. ATDRAC-12X-Price
$96.00
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-24
Features: 2U rackmount can be loaded with
2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Spools at the rear for neat
and clean cable management.
Lead time: In Stock, Immediate Shipment
48
Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATDRAC-24X-
Price $100.50
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-48
Features: 2U rackmount can be loaded with
4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Spools at the rear for neat
and clean cable management.
Lead time: In Stock, Immediate Shipment
72
Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. American Tele Data
RAC-2X-
Price $105.00
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-72
Features: 2U rackmount can be loaded with
6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Sliding tray for high-density
situations. Spools at the rear for neat and clean cable management.
Lead time:
In Stock, Immediate Shipment
144
Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X
Price-
$173.25
Dimensions: Width = 17'', Depth = 12'', Height = 7''
Weight (unloaded): 11.5
lbs.
Port Capacity: 6-144
Features: 4U enclosure can be loaded with 12
panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with
extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder
finish coat.
Lead time: In Stock, Immediate Shipment
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. American Tele DataWAC-1X
Dimensions: Width = 6.5'', Depth = 1.5'', Height = 7''
Weight (unloaded):
2.1 lbs.
Features: Fiber Optic Wall Mount Enclosure- Pact Panel.Wall-mount
enclosure accommodates 1 adapter panel (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall-mount is
lockable with small pad lock. Entry point at the top and bottom allow user to
enter main enclosure without unwanted handling of fiber optic cables. Side swing
door allows user to run jumper cable assemblies to final destination. Spools and
cable tie down bracket included on the inside compartment.
Lead time: In Stock,
Immediate Shipment
------------------------------------
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-2X
Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
Weight (unloaded):
6.85 lbs.
Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-4X
Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
Weight (unloaded):
7.95 lbs.
Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-8X
Dimensions:
Width = 17'', Depth = 5.87'', Height = 12.2''
Weight: 12.7 lbs.
Features:
Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall mount is
lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user
to enter main enclosure without allowing any unwanted handling of fiber optic
cables. Side swing doors allow user to run jumper cable assemblies to final destination.
Spools and cable tie down bracket included on the inside compartment.
Lead
time: In Stock, Immediate Shipment
144 Port Fiber Optic
Enclosure- Fiber Optic Patch Panel
Part
No. ATDWAC-12X-H-06-144- Same as
ATDWAC-8X- but can accomodate 144 fibers. You
can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination
adapters you need. Ideal for tying in large count fiber cable from the "street"
and using this panel as a distribution panel- leading into the building network.
--------
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-2X
Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
Weight (unloaded):
6.85 lbs.
Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-4X
Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
Weight (unloaded):
7.95 lbs.
Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-8X
Dimensions:
Width = 17'', Depth = 5.87'', Height = 12.2''
Weight: 12.7 lbs.
Features:
Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall mount is
lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user
to enter main enclosure without allowing any unwanted handling of fiber optic
cables. Side swing doors allow user to run jumper cable assemblies to final destination.
Spools and cable tie down bracket included on the inside compartment.
Lead
time: In Stock, Immediate Shipment
144 Port Fiber Optic
Enclosure- Fiber Optic Patch Panel
Part
No. ATDWAC-12X-H-06-144- Same as
ATDWAC-8X- but can accomodate 144 fibers. You
can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination
adapters you need. Ideal for tying in large count fiber cable from the "street"
and using this panel as a distribution panel- leading into the building network.
American Tele Data
"Six"
Packs
Available
are American Tele Dataadapter panels with pigtails for splicing. This
kit includes 1, 6, or 8 pack loaded adapter panel with pigtails.
Connector styles are indicated and standard length of pigtails are 3 meters.
Pigtails are TIA-568-A color coded. Contact
your American Tele Datasales associate at 1-866-342-3721 for custom adapter/pigtail kits.
Singlemode
Six Pack Kits - 3 meters
ATDP6SCSM - (1) SC SM 6 pack with 6 SC/UPC pigtails
-
ATDP6FCSM
- (1) FC SM 6 pack with 6 FC/UPC pigtails
-
ATDP6STSM - (1) ST SM 6 pack with 6 ST/UPC pigtails
-
ATDP8SCSM
- (1) SC SM 8 pack with 8 SC/UPC pigtails
-
ATDP6DSCSM - (1) Duplex SC SM 6 pack with 12 SC/UPC pigtails
Multimode
Six Pack Kits - 3 meters
ATDP6SCMM - (1) SC MM 6 pack with 6 SC pigtails
-
ATDP8SCMM
- (1) SC MM 8 pack with 8 eight SC pigtails
-
ATDP6STMM
- (1) ST MM 6 pack with 6 ST pigtails
ATDP6SCSM-1-SC
Duplex Singlemode 6 Pack with 12-SC/UPC Pigtails Price$ 160.00
ATDP6FCSM-1-FC Singlemode 6 Pack with 6-FC/UPC Pigtails Price $ 92.00
ATD-P6STSM-1-SC Multimode 6 Pack with 6-SC/UPC Pigtails Price $ 50.00
ATDP8SCSM-1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails Price $ 81.00
ATDP6SCMM-1-ST Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00
ATDP8SCMM-1-ST Singlemode 6 Pack with 6-ST/UPC Pigtails Price $ 82.00
ATDP6STMM-1-SC Singlemode 8 Pack with 8-SC/UPC Pigtails Price $ 99.00
American Tele Data
Snap
Six- Packs For Distribution
Frames
These
pre-terminated adapter panels provide convenience to technicians splicing into
fiber distribution frames. Available in 6 or 12 fiber
bundles with TIA-598-A standard color code, these bundled fibers provide cable
management from patchpanel to splice bays. Standard 3 meters. Contact ATDat 1-866-342-3721
for custom lengths and different connector style adapter panels
Singlemode
Six Pack- Eight Pack Kits - 3 meters
-
ATDC6LSSP
- (6) adapters, SC/UPC, 6 fiber pigtail, SM, 3 meters
-
ATDSC6LSSP
- (6) duplex adapters, SC/UPC, 12 fiber pigtail, SM, 3 meters
-
ATDC6APCSP
- (6) adapters, SC/APC, 6 fiber pigtail, SM, 3 meters
-
ATDC6DLSP
- (6) duplex adapters, LC/UPC, 12 fiber pigtail, SM, 3 meters
-
ATDT6LSSP
- (6) duplex adapters, ST, 12 fiber pigtail, SM, 3 meters
Multimode Six Pack- 8 Pack Kits - 3 meters
-
ATDC6LMSP
- (6) duplex adapters, SC, 12 fiber pigtail, MM, 3 meters
-
ATDP6STMM
- (1) ST MM 6 pack with 6 ST pigtails
PRICING:
ATDC6LSSP
- 1 SC Duplex Singlemode 6 Pack with 12-SC/UPC
Pigtails Price $ 190.70 each
ATDSC6LSSP
- 1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails
Price $ 76.90 each
ATDC6APCSP
- 1 SC Singlemode 6 Pack with SC/APC Pigtails
Price $ 95.50 each
ATDC6DLSP
- 1-LC Duplex Singlemode 6 Pack with 12-LC/APC
Pigtails Price $ 190.70 each
ATDP6SCMM-1-ST
Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00
ATDT6LSSP-1ST Multimode 6 Pack with 6 ST/PC Pigtails$ 86.00 each
ATDT6LSMP
-1 -ST Multimode
6 Pack with 6 ST/PC Pigtails Price $ 58.00 each
Pricing
For Six Pack-8 Pack Plates For Wall & Rack Mount Fiber Optic Enclosures
| ATD-Blank | American Tele Data
Blank Blank Plate with No Holes |
$ 4.75 |
| ATDSC6LM | 6
Loaded-SC Duplex Multimode-Singlemode Adapters | $
48.80 |
| ATDFC6 | 6
Pack Plate (unloaded) | $ 4.75 |
| ATDFC6APC | 6
Pack Loaded with FC/APC Singlemode Adapters | $
49.20 |
| ATDF1FC6L | 6
Pack Loaded w/FC-Multimode/Singlemode Adapters | $
37.90 |
| ATDF1LC6DL | 6
Pack Loaded w/LC Duplex-Singlemode Adapters | $
52.20 |
| ATDF1LC6L | 6
Pack Plate Loaded w/LC Duplex-Multimode Adapers | $
31.45 |
| ATDF1MTRJ6L | 6
Pack Loaded w/MTRJ Multimode Adapters | $ 21.70
|
| ATDF1SC6 | 6
Pack SC Plate ( Unloaded) | $ 4.75 |
| ATDF1SC6APC | 6
Pack Loaded w/SC/APC Singlemode Adapters | $
28.90 |
| ATDF1SC6L | 6
Pack Loaded w/SC-Multimode/Singlemode Adapters | $
19.95 |
| ATDF1SC8 | 8
Pack SC Plate (Unloaded) | $ 4.75 |
| ATDF1SC8LM | 8
Pack Loaded with SC Multimode Adapters | $
24.90 |
| ATDF1SC8LS | 8
Pack Loaded w/ SC -Singlemode Adapters | $
35.75 |
| ATDF1ST6 | 6
Pack ST Plate (Blank- Unloded) | $ 4.75 |
| ATDF1ST6LM | 6
Pack Plate Loaded w/ST -Multimode Adapters | $
21.10 |
| ATDF1ST6LS | 6
Pack Loaded w/ ST Singlemode Adapters | $
29.97 |
| ATDF1ST8 | 8
Pack ST Plate (Unloaded) | $ 4.75 |
| ATDF1ST8LM | 8
Pack Loaded w/ ST- Multimode Adapters | $ 23.75
|
| ATDF1ST8LS | 8
Pack Loaded w/ ST-Singlemode Adapters | $
37.75 |
Fiber
Optic Enclosure Pricing For Enclosures Above
| | Fiber
Optic Enclosures Fiber
Optic Patch Panels | |
| ATDRAC-1X | Rack
Mount 1U Patch Panel up to 36 Ports | $87.00 |
| ATDRAC-12X | Rack
Mount 2U Patch Panel up to 24 Ports | $96.00 |
| ATDRAC-24X | Rack
Mount 2U Patch Panel up to 48 Ports | $100.50 |
| ATDRAC-2X | Rack
Mount 2U Patch Panel up to 72 Ports | $105.00 |
| ATDRAC-4X | Rack
Mount 2U Patch Panel up to 144 Ports | $173.25 |
| ATDWAC-2X | Wall
Mount patch panel up to 24 ports | $37.49 |
| ATDWAC-4X | Wall
Mount patch panel up to 48 ports | $56.25 |
| ATDWAC-8X | Wall
Mount patch panel up to 96 ports | $122.63 |
| ATDAP-106ST | 6
Pack ST PB Insert MM/SM Adapter Panel | $10.43 |
| ATDAP-108ST | 8
Pack ST PB Insert MM/SM Adapter Panel | $14.93 |
| ATDAP-112ST | 12
Pack ST PB Insert MM/SM Adapter Panel | $24.00 |
| ATDAP-106SC | 6
Pack SC PB Insert MM/SM Adapter Panel | $13.43 |
| ATDAP-108SC | 8
Pack SC PB Insert MM/SM Adapter Panel | $24.00 |
| ATDAP-104DSC | 4
Pack Duplex SC PB Insert MM/SM Adapter Panel | $24.00 |
| ATDAP-106DSC | 6
Pack Duplex SC PB Insert MM/SM Adapter Panel | $30.00 |
| ATDAP-106MTRJ | 6
Pack MTRJ (12 fibers) Mating Sleeve MM/SM Adapter Panel | $24.00 |
| ATDAP-112MTRJ | 12
Pack MTRJ (24 fibers) Mating Sleeve MM/SM Adapter Panel | $45.00 |
| ATDAP-106LC | 6
Pack LC PB Insert adapter panel | $36.00 |
| ATDAP-106FC | 6
Pack FC PB Insert adapter panel | $24.00 |
| ATDAP-108FC | 8
Pack FC PB Insert adapter panel | $33.00 |
| ATDAP-112FC | 12
Pack FC PB Insert adapter panel | $39.00 |
| ATDRAC-1X | Wall
Mount patch panel up to 24 ports | $42.90 |
AFL Telecommunications
Fiber Closures
Splice
Closures are designed to simplify splice management. Quality engineering reduces
the installation time, training and complexity associated with fiber splicing
in the field. The closures can be installed without the need for special tools,
heat, adhesives, drills, or any powered equipment. Durable and easy to install,
these closures will improve productivity, reduce labor expenses and last the life
of the plant. Closures are designed and tested to Telcordia™ GR-771 requirements
and Rural Utilities Service (RUS) listed.he AFL family of Aerial Weathertight
Splice Closures is designed to provide a cost-effective solution for your aerial
splicing needs. Quality engineering reduces the installation time, training and
complexity associated with fiber splicing in the field. The closures can be installed
without the need for special tools, heat, adhesives, drills, or any powered equipment.
Durable and easy to install, these closures will improve productivity, reduce
labor expenses and last the life of the plant.
* LG-410
* LG-420
* LG-500
* LG-600
Features:
* Individual, patented, self-sizing cable grommets and strength member tie downs
provide for cable additions without disturbing those previously installed
* Unique tongue-in-groove closure seal and back-to-back grommet design provides
for a weathertight and insect seal
* Easy to maintain, all aerial closures
are re-enterable without the need for any re-entry kits, special tools or sealants
* Designed and tested to Telcordia™ GR-771 aerial weathertight closure requirements
* Rural Utilities Service (RUS) listed
NEMA
RATED Outdoor FIBER OPTIC ENCLOSURES We can supply you with a full line of
standard and special NEMA rated enclosures and components well suited for Homeland
Security Product support. Our own complete fiber-optics product offering can be
leveraged in certain cases to minimize lead-time and provide value added solutions
in a short time period
West
Coast (866) 342-3721--
-----East
Coast (866) 650-DATA
Click
on Either Link For Your Needs
-------------------------------------------------
Rack
Mount Enclosures--------------------------------------------Wall
Mount Fiber Enclosures
CNSLL-24&48 Fiber Termination & Splicing Shelf-CON288HD
- Fiber Termination Patch Panel
CNS024P-Patch & Splice Panel-CON012P
- Fiber Termination Patch Panel- CON024P
- Fiber Termination Patch Panel Fiber
Storage Units (FSU) are used to conveniently and safely store an extra length
of cable along the support strand for later use. Furnished as pairs, these FSUs
feature all aluminum, baked acrylic enamel finish and all basic hardware for attachment
to the support strand. Strand mount support brackets meet Telcordia® specification
and are REA accepted. Galvanized strand clamping devices accommodate 1/4"
to 7/16" strand and meet ASTM specifications A153 and B695. Features:
* Furnished as pairs
* All aluminum construction with full welded cross members
* Baked acrylic enamel finish/chromate pre-finish per MIL-C-5541-B
* Basic
hardware (bolts, nuts and washers) for attachment of strand mount support brackets
* Tie-wrap slots for securing cable from sliding
* Strand-mount port brackets
meet Telcordia specification and are REA accepted
* Galvanized strand clamping
devices accommodate 1/4" to 7/16" strand and meet ASTM specifications
A153 and B695
|
Outdoor
FTTH-Fiber Pedestals & Enclosures
Outdoor-Fiber Pedestals & Enclosures
Pedlock
BDO Series Pedestals are a key element of any FTTP solution. In both greenfield
and brownfield fiber deployments, BDO Pedestals provide easy access to branch
and drop splice while protecting and storing loose buffer tube fiber optic cables.
The exclusive BDO bracket allows technicians to mount splice trays and splitters
securely with ample access to perform in-field splicing.
BDO Pedestals feature
a non-metallic construction that offers super OSP protection against floods, fire,
dirt, insects and impact. An expanded-capacity split base is designed to easily
install around conduit-fed cable bundles in new construction (excludes 14”
diameter pedestals). BDO pedestals are an ideal solution for rehabilitation of
metallic enclosures, and protection of co-located copper/fiber distribution points.
The CMPH is a versatile OSP closure designed for both new provisioning installations
as well as rehabilitation of existing access points housed in metallic enclosures.
The CMPH’s superior structural strength, outstanding environmental protection
and ease of installation combine to create a long-life housing that reduces operational
expenses.
A
two-piece assembly features a lift-off dome and a corrugated channel base. The
lift-off dome allows 360º access to internal working areas and includes self-latching
locks with secondary bolt locks on both left and right side panels. The dome provides
“bell jar” flood protection, eliminates intrusion of wind-blown rain
and dust, and prevents unauthorized entry. The base provides ample room for entry
of multiple large cables, including conduit. A spacious bottom entry allows technicians
to easily slide the base over existing large cable rehabilitation applications.Internally,
the CMPH features a sturdy metal bracket with craft-friendly repositionable splice
bars, a cable splice support rail, and a 6-point bonding/grounding bar. The spacious
internal working area accommodates copper splices of 1,800 to 3,600 pairs or passive
fiber optic equipment (interconnect and splitter). The CMPH is an exceptional
protection solution for copper/fiber co-locations.
or
visit this link for sample pricing
Click
Here For Fiber Optic Assembly Pricing
home
| cables | switches | Contact
Us our team | locations
Main
Distribution Frames- Network Bays-Open Bay Systems
