T1 Circuit Extension over IP and Ethernet Solutions
*  Optimized for use with Airaya Bridge Units  *

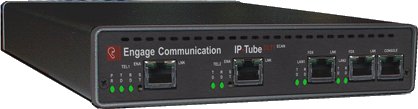

IP•Tube DLT1-Ecan

T1 Circuit Extension Over IP Interconnect for Voice and Data

The IP•Tube DLT1-Ecan encapsulates full and fractional T1 and TDM circuits into IP  packets.
T1 Over IP connections provide for the interconnection of PBXs and Telecom  Switches via LANs, WANs, MANs, and Wireless Ethernet.

The IP•Tube DLT1-Ecan  ships with two T1 interfaces with either 1 or 2 active and two 10/100 BaseT Ethernet interfaces.
The inactive T1 Port can be activated via a software-based license key for a pay as you grow option.


Part No.
Model No.
Description
29-8509
IP Tube DLT1-Ecan
T1 Circuit Extension over IP Interconnect for Voice and Data
(Two required for link)
T1 Circuit Extension Over IP for Voice with Echo Canceller
(Two required for link)
• ROI measured in weeks
• On-board Echo Canceller
• Supports Legacy Switches/PBX
• Crystal Clear Voice across Internet
• Exploits efficiency of IP/Ethernet
29-8510 IP Tube DLT1-Ecan-ALT
IP-Tube DL Alternator Load Balance Option
29-8511 IP Tube DLT1-Ecan-PRO
IP-Tube DL Protector Auto Protection Switch Option
29-8512 IP Tube DLT1-Ecan-SWT
IP-Tube DL Switch Option
29-8513
IP Tube DLT1-Ecan-LPT
IP-Tube DL Link Protector Option
29-8502
IP Tube-QT1, 1T1
T1 over IP - 4 T1 (one active), 1 10/100BaseT Ethernet
T1 Circuit Extension over IP for voice and data-
4 T1 (one active), 1 10/100BaseT Ethernet
• ROI measured in weeks
• Exploits efficiency of IP/Ethernet
• Supports Legacy Switches/PBX
• Straight Forward Configuration
29-8503
IP Tube-QT1, 1T1, Compr.
T1 Circuit Extension over IP - 4 T1 (one active),
1 10/100BaseT Ethernet, with Compression
29-8504
IP Tube-QT1, T1 U/G
T1 Port Upgrade, Per Port Activation Key
29-8505
IP Tube-QT1, Compr. U/G
Lossless Data Compression Upgrade, Per Port Activation Key
The IP•Tube DLT1-Ecan-C continuously detects idle and redundant data within each T1 Voice circuit resulting in as much as a 56 to 1 bandwidth savings.  TDM over IP WAN bandwidth is not consumed by silent or redundant circuits. Note: Compression only supported with IPTube•DLT1-Ecan-C models.
29-8506
IP Express-XL-T1
IP WAN Router - 1 T1 integrated CSU/DSU, 1 10BaseT Ethernet
29-8507
IP Express-MLT-DI-HUB
IP WAN Router - 2 T1 int. CSU/DSU, 1 10BaseT Ethernet, Drop/Insert/Hub
29-8508
IP Express-QT1, 4T1, 1Eth
IP WAN Router - 4 T1 int. CSU/DSU, 1 10/100BaseT Ethernet, MLPPP

Echo Canceller
The IP•Tube DLT1-Ecan has an integrated T1 Echo Canceller that cancels up to 64 milliseconds of Far End echo. The echo canceller meets ITU-T G.164, G.165 and ITU-T G.168 requirements for echo cancellation.

Transparent Interconnect

The IP•Tube DLT1-Ecan’s transparent operation maintains the proprietary signaling required to support PBX features such as call conferences, call forwarding, caller ID and SS7.

Signaling Support PRI ISDN, SS7, ESF, D4, SLC-96, Proprietary out of band, and robbed bit signaling is supported. Echo cancellation is automatically disabled during FAX and Modem communications. Transparent support for Modem or Fax. Voice quality is not compromised. Legacy phone equipment investment is preserved.



IP•Tube DLT1-Ecan Standard Features
Assured Delivery Protocol
In order to assure that circuits are extended over connections with fault tolerance the IP•Tube DLE1-Ecan has as a standard capability an Assured Delivery Protocol that supports high performance full duplex real time data. The protocol has packet out of sequence detection and re-sequencing, duplicate skipping, and real time lost packet retransmission with configured delay.

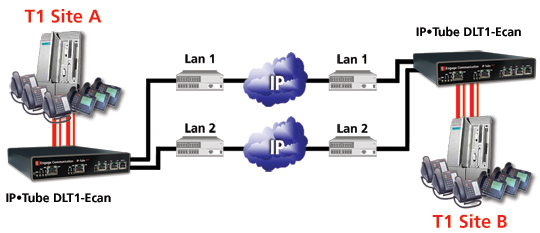

Dual LAN Interfaces

All IP•Tube•DLT1-Ecan models ship with dual 10/100BaseT Ethernet LAN ports. The dual Ethernet interfaces provide for:
• Management interface on LAN port 2 when LAN port 1 is connected to a VPN tunnel
• The LAN ports can be configured to support connections over 2 opposite ADSL links
• Alternator Option for load balanced SDSL interconnects
• Protector Option for Redundant Packet Path connections with Constant or Switch Over Criteria

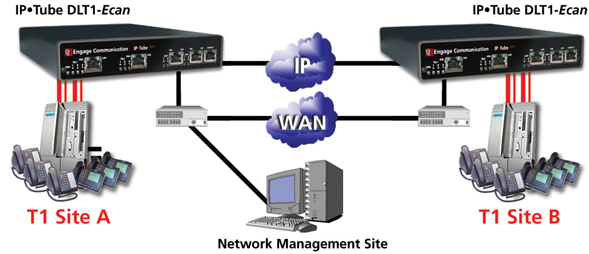

VPN Network Management
Interconnecting the IP•Tube DLT1-Ecan through a Virtual Private Network with sufficient real time committed information rate ensures that the required quality of service is provisioned. The second Ethernet interface provides a management port. Each LAN interface features independent IP network



Protector Option
The protector option utilizes the second LAN interface as a redundant path for the interconnection of the IP encapsulated T1 Circuit. The extension of the T1 circuit has a fault tolerant link that is configured to always on, or with switch over criteria.

Pay-As-You-Grow Field Upgrades
The IP•Tube DLT1 Ecan are designed for Pay-As-You-Go growth from 1 T1 to 2 T1s. Customers can elect to economize initial installations, buy purchasing a single active T1 port and enable the additional T1 Port via a software-based license key.
Field Upgrade benefits are extended to our Industry-Best Loss less Data Compression. Just as T1 ports are field upgrade able, so is Loss less Data Compression. At any time, each T1 port on the IP-Tube DLT1-Ecan can be upgraded to Loss less Data Compression with a simple software-based license key installation. If you determine that your IP•Tube DLT1-Ecan is best deployed with Loss less Data Compression, your still in business with the per port field upgrade!
Technical Specifications
LAN Network Interface:
• Two 10/100BaseT Full/Half Ethernet
• Autonegotiation or Configurable Speed and Duplex

LAN Network Protocols Supported:
• IP, TCP, UDP, ICMP
• Assured Delivery Protocol

Echo Canceller:
• Voiceband Echo Cancelling according to ITU G.165 and G.168
• u- and A-Law coding according to ITU G.711
• 24 channels with end echo path delay of less than 63.75 ms

T1/Fractional T1 Specifications:
• One or two Port Models
• Connects directly to T1 or DS1
• Framing - ESF or D4
• Coding - B8ZS or AMI
• Supports DS0 assignments from 1 to 24
• Not Contiguous Configuration x-y-z Supported
T1 Over IP Protocol:
• TDM Over IP
• Circuit Extension Services Over IP - CESOIP
• HDLC Over IP - HDLCOIP
• Frames Per Packet Configurable 8 to 56
• Low Latency Mode: 1 millisecond 8 T1 frames
• Max Payload Mode: 7 millisecond 56 T1 frames
• Comprehensive Clocking: Internal, Network, Adaptive

TFTP Online Upgrade Capable (FLASH ROMs)
• IPTube is fully operational during upgrade

Quality of Service Support:
• IP Type of Service (TOS) CLI configurable
• IANA Registered UDP Port 3175

Regulatory:
• CE
• Safety -IEC60950
• EMC - CFR 47 Part 15 Sub Part B:2002,
• EN55022:1994+A1&A2, EN55024,
  ICES-003  1997, CISPR 22 Level A
• Telecom Part68

Management:
• Telnet support with Edit and Paste Template Files
• Console Port for Out of Band Management
• SNMP support (MIB I, MIB II) with configurable traps
• Remote config., monitoring, & reset
• Telco Diagnostics: Local Loop, Remote Loop

Rear Panel/Power:
• 12-24 VAC/VDC, 1.0A. International Adapters Available
• Optional -48V 0.25 Amp
• Dimensions: 9" (L) x 7.3” (W) x 1.50” (H)

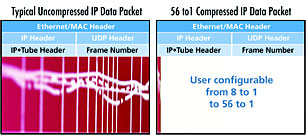

Lossless Data Compression Option:
• Detects idle and redundant data within each DS0
• Configurable Silence Detection Range
• Interconnect bandwidth is not consumed by silent or redundant data
• Compression settings from 8 to 1 to 56 to 1

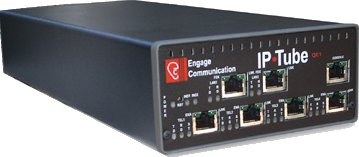

IP•Tube QT1

Enable One to Four T1 interfaces for T1 over IP Voice and Data
The IP•Tube QT1 is available with one to four T1 interfaces and dual 10/100 BaseT Full/ Half Duplex Ethernet Interfaces. The T1 interfaces have configurations that for provide independent protocol, compression, packet sizing, buffering, clocking, framing, coding and channel settings. Enable additional T1 Ports as needs expand using a software-based license key. The protocols supported are IPTube, CESoIP, and HDLCoIP.


 IP•Tube QT1 Features
Transparent Interconnect
The IP•Tube QT1’s transparent operation maintains the proprietary signaling required to support PBX features such as call conferencing, call forwarding, caller ID and SS7. Legacy phone equipment investment is preserved. Transparent support for Modem, Fax, or Data circuits. Voice quality is not compromised.
Lossless Data Compression Option
The IP•Tube-T1C detects idle/redundant data within each DS0 resulting in as much as 56 to 1 bandwidth savings. T1 over IP bandwidth is not consumed by silent or redundant circuits. Management of the IP•Tube T1 is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Common templates provide for cut and Paste configuration.
Service Quality Packet Prioritizing
The IP•Tube QT1 uses the Type of Service byte in the IP packets to prioritize the encapsulated T1 frames. The setting of the TOS byte can be used to ensure that the real time TDM data from the IP•Tube QT1 is ensured high priority.

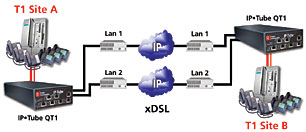

Alternator Load Balancing Option
The IP•Tube Qt1A Alternator option alternatively sends the IP packetized T1 frames on LAN 1 and LAN 2. The Alternator option enables fractional and full T1 circuits to be split over two IP WAN connections such as xDSL. The Lossless Data Compression option can be combined with the Alternator option to minimize the bandwidth required from the alternative paths. The cost of interconnecting T1 communication systems across packetized xDSL is a fraction of long distance leased T1 circuit costs.
Pay-As-You-Grow Field Upgrades
The IP-Tube QT1/ QE1 are designed for Pay-As-You-Go growth from 1 T1 thru 4 T1s per IP•Tube QT1. Customers can elect to economize initial network installations, by purchasing their IP-Tube QT1 with a single active T1 port. As the network grows enable additional T1 Ports via a software-based license key. Field upgrade benefits are extended to our Industry-Best Lossless Data Compression. Just as T1 ports are field upgradeable, so is Lossless Data Compression. At any time, each T1 port on the IP-Tube QT1 can be upgraded to Lossless Data Compression with a simple software-based license key installation. If upon installation, you determine that your IP•Tube QT1s are best deployed with Lossless Data Compression, you're still in business with the per port field upgrade!

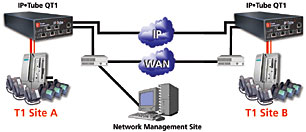

VPN Network Management
Interconnecting the IP•Tube QT1 through a Virtual Private Network with a sufficient real time committed information rate ensures that the required quality of service is provisioned. The IP•Tube QT1's second Ethernet interface provides a management port when the first Ethernet interface is connected to a VPN. Each Ethernet LAN interface features independent IP network configurations.
Technical Specifications
LAN Network Interface:
• Two 10/100BaseT Full/Half Ethernet
• Autonegotiation or Configurable Speed and Duplex

LAN Network Protocols Supported:
• IP, TCP, UDP, ICMP

1 to 4 Duplicate Packet Transmission:
• Resilient performance through a lossy interconnect.

T1/Fractional T1 Specifications:
• One to Four Port Models
• Connects directly to T1 or DS1
• Framing - ESF or D4 • Coding - B8ZS or AMI
• Supports DS0 assignments from 1 to 24
• Non Contiguous Configuration x-y-z Supported

T1 Over IP Protocol:
• TDM Over IP
• Circuit Extension Services Over IP - CESOIP
• HDLC Over IP - HDLCOIP
• Frames Per Packet Configurable 8 to 56
• Low Latency Mode: 1 millisecond 8 T1 frames
• Max Payload Mode: 5 millisecond 56 T1 frames
• Comprehensive Clocking: Internal, Network, Adaptive

Rear Panel/Power:
• 12-24 VAC/VDC, 1.0A. International Adapters Available
• Optional -48V 0.25 Amp
• Hot Standby with 2nd Power Module
Lossless Data Compression Option:
• Detects idle and redundant data within each DS0
• Configurable Silence Detection Range
• Interconnect bandwidth is not consumed by
  silent or redundant data
• Compression settings from 8 to 1 to 56 to 1

TFTP Online Upgrade Capable (FLASH ROMs)
• IPTube is fully operational during upgrade

Quality of Service Support:
• IP Type of Service (TOS) CLI configurable
• IANA Registered UDP Port 3175

Regulatory:
• CE • Safety -IEC60950 • EMC - CFR 47 Part 15 Sub Part B:2002, EN55022: 1994+A1&A2, EN55024, ICES-003 1997, CISPR 22 Level A
• Telecom Part68

Management:
• Telnet support with Edit and Paste Template Files
• Console Port for Out of Band Management
• SNMP support (MIB I, MIB II) with configurable traps
• Remote config., monitoring, & reset
• Telco Diagnostics: Local Loop, Remote Loop

Dimensions:
14" (L) x 5.5” (W) x 2.50” (H)
