Distribution Cable- Fiber Optic Distribution Cable- Indoor Outdoor Cable- Riser Fiber Cable Plenum Fiber Cable

American Tele Data offers a wide variety of multimode distribution cable from several manufacturers below including Distribution cable, Fiber Optic Distribution Cable, Indoor Outdoor Cable, Riser Fiber Cable Plenum Fiber Cable Short Wavelength or Long Wavelength, 50/125 micron or 62.5/125 micron, fiber optic disribution cable.We have designed our Fiber Grade Selector to help you determine which multimode fiber type best suits your application. Legacy installations to emerging networking protocols are identified and the guaranteed performance of each fiber is given along with the appropriate optical specifications. . American Tele Data Stocks many sizes of multimode fiber optic cable and can ship mostcable orders including custom- including colored innerduct within 48 hours.

Live Support by Citricle

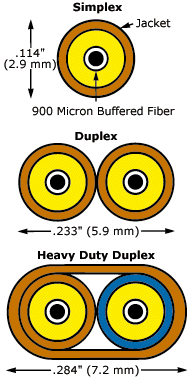

Part Number	Type	Fiber Count	Outside Diameter		Weight		Min. Bend Radius				Max. Load (Installation)
			Outside Diameter		Weight		Short Term		Long Term		Max. Load (Installation)
			mm	in.	kg/km	lbs/M	cm	in.	cm	in.	Newtons	lbs.
Riser
ATDM9X001	Simplex	1	2.9	.114	9	6	4.3	1.7	2.9	1.1	400	90
ATDM9X002	Duplex	2	2.9 x 5.9	.114 x .233	18	12	4.3	1.7	2.9	1.1	801	180
ATDM9X080	Heavy Duty Duplex	2	4.2 x 7.2	.166 x .284	31	21	6.3	2.5	4.2	1.7	801	180
Plenum
ATDM9X003	Simplex	1	2.9	.114	9	6	4.3	1.7	2.9	1.1	400	90
ATDM9X004	Duplex	2	2.9 x 5.9	.114 x .233	19	13	4.3	1.7	2.9	1.1	801	180
ATDM9X081	Heavy Duty Duplex	2	3.8 x 6.8	.148 x .266	28	19	5.6	2.2	3.8	1.5	801	180
Low Smoke Zero Halogen
ATDM96436	Simplex	1	2.9	.114	9	6	4.3	1.7	2.9	1.1	400	90
ATDM95454	Duplex	2	2.9 x 5.9	.114 x .233	19	13	4.3	1.7	2.9	1.1	801	180
ATDM95890	Heavy Duty Duplex	2	4.2 x 7.2	.166 x .284	34	23	6.3	2.5	4.2	1.7	801	180

(For "X" in part number see Optical Characteristics in table below)

Listed LSZH cables contain 62.5/125 Grade 2 fiber.

Also available with other fiber types.
