| ----------Innerduct Accesories-Innerduct Couplers- HDPE Couplers-HDPE End Caps- Plenum Innerduct Couplers -Innerduct End Caps-Corrugated Duct- Fiber Optic Duct-Outside Plant Conduit
American Tele Data has in stock a complete Line of Innerduct accesories including innerduct couplers, inneduct end caps, pull tape, HDPE Couplers, HDPE End caps, and more. Our HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct. It¹s ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Corrugated duct is available in 1" and 11/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available. Call Us Today At (866) FIBER-21 or 650-DATA

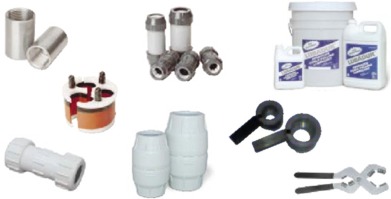

We offer a wide variety of HDPE accessories to meet the needs of your individual project. If you do not see what you are looking for, call us as we have many special order options and a variety of products and styles. Couplers- Available in a variety of sizes!
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
American Tele Data
is an active CCR registered supplier for the United
States Government

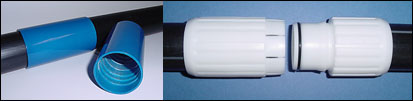

Couplers
Pull
Tape-Let Us Know How Much You Need- or we can" pre-install
it in your innerduct for easier pulls." | Pull Tape Ordering Information | |
Part # |
Description |
BD-T10 BD-T12.5 BD-T18 BD-T25 |
1000 lb pull tape 1250 lb pull tape 1800 lb pull tape 2500 lb pull tape |
To specify pull tape installed into duct use the extension in addition to the duct part number. Example: 1” SDR13.5 Orange with 1000 lb pull tape – BDI114OR-T10 |
|
Detectable Tape
Detectable tape is a low stretch, high strength woven tape, produced with abrasion-resistant polyester or aramid fibers and corrosion-resistant metallic conductor. This unique combination provides users a detectable tape with a single product for detecting, measuring and pulling.
Pulling tape substantially reduces cable installation labor, material and inventory costs by providing a threading line, a measuring tape and a winch line all in one product. Tape reduces damage to underground plants, improves efficiency and enhances worker safety.
| Detectable Tape Order Information | |
| Part # | Description |
BD-METALTAPE |
BDI Detectable Tape |
Duct Plugs
Blue Diamond duct plugs seal your conduit or innerduct from water, animals, debris or any other underground intrusion. Available in various sizes and models, duct plugs are designed for easy retrofitting and removal. Duct plugs help protect and seal occupied and unoccupied conduit and innerduct in an extensive range of applications.
Vinyl Endcaps
Use our flexible vinyl endcaps to seal cable and duct from soil intrusion.
| Vinyl Endcap Order Information | |
Part # |
Description |
BD-TC-1650 BD-TC-1900 BD-TC-2375 |
1.25” Single red cap with nipple 1.5” Single red cap with nipple 2” Single red cap with nipple |
*Additional sizes are available upon request |
|
Corrugated HDPE- Riser Rated Innerduct-Plenum Innerduct-Corrugated Duct- Outside Plant Conduit- Fiber Optic Duct- Raceway Systems
HDPE Sizes Available
| 1/2 Inch | 3/4 Inch | One Inch | 1 1/4 Inch | 1 1/2 Inch | 2 Inch | 3 Inch | 4 Inch | 5 Inch | 6 Inch |
Colors and Identification
- Standard colors available in: white, black, blue, green, red, orange, lilac, grey, yellow, brown, buff, terra cotta.
- Striping: Striping combinations are available in all colors in combinations of single, double, triple and quad stripes.
Other Identification
- Innerduct size, SDR and sequential footage markings every 2’ are laser imprinted on every order.
- Custom imprints such as company name, project name or any other special identification markings also available
Options
- Lubrication
- Up to four lengths/colors of innerduct per reel available laid in parallel or segmented on a reel.
- Pre-installed pull tape, tracer tape
 |
Smooth Wall Innerduct 1/2" to 6" Diameter
Smooth wall is the standard High Density Polyethylene (HDPE) Duct. The interior of smooth wall has a glass-like finish which delivers the lowest coefficient of friction of all available non-lubricated innerducts. Blue Diamond smooth wall innerduct is a durable high quality product for direct burial applications. |
|---|---|
 |
Ribbed Wall Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter
Blue Diamond’s ribbed wall innerduct is designed to allow extremely long cable pulls to glide through the interior raised ribs. All ribbed wall innerduct is internally ribbed and available in any SDR and SIDR rating. |
 |
Tracer Wire Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter
Tracer wire innerduct provide a method of locating underground fiber optic cable. The tracer wire is a single copper wire co-extruded into the innerduct providing a corrosion resistant conductor. An alternative method of locating buried fiber optic cable is to use detectable tape, available pre-installed in any of our duct products. |
 |
Figure 8 Duct Smooth Wall Innerduct 1/2" to 6" Diameter
Blue Diamond’s figure 8 innerduct features a high tensile galvanized support strand for aerial placement of duct. The support strand is an integral component of the co-extruded duct. |
Size |
Wall Thickness |
Color |
Stripes |
Ribbed interior |
Tape |
|
BDI |
06 = ½” |
2 = SDR 9 |
OR = Orange |
ORS =Orange Stripe |
RI |
T10 = 1000# tape |
09 = ¾’ |
3 = SDR 11 |
BL = Blue |
BLS = Blue Stripe |
T12.5 = 1250# tape |
||
11 = 1” |
4 = SDR 13.5 |
BK = Black |
BKS = Black Stripe |
T18 = 1800 # tape |
||
13 = 1 ¼” |
5 = SCH 40 |
GR = Green |
GRS = Green Stripe |
T25 = 2500# tape |
||
16 = 1 ½” |
6 = SDR 15.5 |
RD = Red |
RDS = Red Stripe |
MT = 1250# detectable tape |
||
21 = 2” |
7 = SCH 80 |
YL = Yellow |
YLS = Yellow Stripe |
|||
31 = 3” |
8 = SDR 17 |
WH = White |
WHS = White Stripe |
|||
41 = 4” |
GY = Gray |
GYS = Gray Stripe |
||||
51 = 5” |
BR = Brown |
BRS = Brown Stripe |
||||
61 = 6” |
BF = Buff |
BF = Buff Stripe |
||||
TC = Terra Cotta |
TCS = Terra Cotta Stripe |
|||||
LI = Lilac |
LIS = Lilac Stripe |
Duct Plugs
Blue Diamond duct plugs seal your conduit or innerduct from water, animals, debris or any other underground intrusion. Available in various sizes and models, duct plugs are designed for easy retrofitting and removal. Duct plugs help protect and seal occupied and unoccupied conduit and innerduct in an extensive range of applications.
Click
for a Complete Listing of Commscope Outside Plant Duct |
We can deliver a 500 Foot Reel of Innderduct to Most Locations In the United States For about $150.00 Per 500 Foot Coil
"Contractor Installed the wrong duct & fiber needs to be installed this weekend?
"Your local distributor has no duct in stock or has the wrong duct and needs it right away?"
"You have everything, the fiber cable, testers, jacks, but the duct- and you need it right away?"- We specialize in Rapid- 24- 48 Hour Turnaround- Call us today at (866) 650-DATA
View
PDF White Paper On Cable Guide here
Cable
Guide fabric innerduct that is equivalent to Maxcell allows you
to place the maximum number of cables in any type of conduit network
structure. By taking the shape of the cables placed within, Cable
Guide allows you to utilize up to 80% of available duct space- Click
Here For Complete Information on Cable Guide Fabric Innerduct.
HDPE Innerduct Specifications
Call For Pricing Today (866) FIBER-21
We can supply pricing on anyone of the product categories
below for a complete specifications sheet on Commscope Products.
Call first for pricing and availability.
Looking for an alternative conduit source?
We offer superior quality conduit at competitive prices with immediate service.
