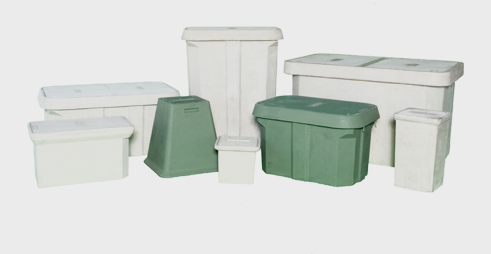

Polymer Concrete OSP Enclosures- Vaults



ATDWAC-1X

SPECIAL! 12 Port Wall Mount Enclosure $68.88 each Huge Selection of NEMA Rated Enclosures

American Tele Data , a registered CCR contracting supply company has teamed up with Corning, Telect,Pencell, Century, AFL Telecommunications, Commscope,Panduit, Emerson, Knurr, Hoffman, Highline,Draka USA, ADC, Carlon,Telco and several other leading fiber optic osp enclosure equipment manufacturers to offer our contractors, RBOC's, FTTH buildout companies a complete array of OSP underground vaults, underground pull boxes, underground cabinets a & underground boxes at affordable prices. We also national defense fiber optic security systems customers including any defense department or government entity a fiber optic intrusion prevention system called the Fiber Sentinel that will help prevent hackers or malicious intruders to break into our national defense using fiber optic technologies. We also carry a complete array of fiber optic enclosures to house all your fiber optic equipment inside the building as well as outside.

OSP Fiber Vaults - OSP Vaults-Fiber Optic Vaults-FTTH Vaults-FTTH Enclosures- OSP Fiber Enclosures- OSP Enclosures
The Advanced Splice Vault (ASV) is a versatile transition point for splicing optical cables near the cable entrance of a network facility. This low-profile splicing solution provides enhanced cable management, multiple cable entrance points, and a broad range of termination solutions to accommodate today’s dynamic networks.

We now carry Multilink Enclosures!


Encl.
Size
ANSI/SCTE
Tier
(for Encl.)
Encl. Vertical
Design/Test
Load #
CA Cover
Design/Test
Load #
HA Cover
Design/Test
Load #
HH Cover
Design/Test
Load #
Encl.
Style
Cover
Style

SMALL ENCLOSURES
Part Number ANSI/SCTE
Tier
(for Encl.)
Encl. Vertical
Design/Test
Load #
CA Cover
Design/Test
Load #
HA Cover
Design/Test
Load #
HH Cover
Design/Test
Load #
Encl.
Style
Cover
Style
American Tele Data6 x 8
15 15,000 / 22,500 8,000 / 12,000 15,000/22,500 N/A PC PC
American Tele Data8 x 8
22 15,000 / 22,500 8,000 / 12,000 15,000/22,500 22,500/33,750 PC PC
American Tele Data8 x 18
15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PC PC
ATD10 x 15 15 15,000 / 22,500 8,000 / 12,000 N/A N/A PT ATDUN
ATD11 x 18 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,750 22,500 / 33,750 ATDUN ATDUN
ATD11 x 18 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PC PC
ATD12 x 12 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PC PC
ATD12 x 12 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PX PC
ATD13 x24 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 ATDUN ATDUN
ATD13 x 24 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 PD ATDUN
ATD13 x 24 5 5,000 / 7,500 5,000 / 7,500 N/A N/A PC PC
ATD13 x 24 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PT ATDUN
ATD17 x 30 5 5,000 / 7,500 5,000 / 7,500 N/A N/A PC PC
ATD17 x 30 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A PT ATDUN
ATD17 x 30 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 ATDUN ATDUN
ATD17 x 30 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 PD ATDUN

LARGE ENCLOSURES
ATD24 x 24 15 15,000 / 22,500 8,000 / 12,000 15,000 / 22,500 N/A ATDUN ATDUN
ATD24 x 36 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 ATDUN ATDUN
ATD30 x 48 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 ATDUN ATDUN
American Tele Data30 x 48 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 PD ATDUN
ATD30 x 60 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN
ATD36 x 36 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500 / 33,750 ATDUN ATDUN
ATD36 x 60 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN
ATD36 x 72 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN
ATD48 x 48 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN
ATD48 x 72 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN
ATD48 x 96 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500 / 33,750 ATDUN LG / ATDUN

ROUND ENCLOSURES
27" Dia. 22 22,500 / 33,750 8,000 / 12,000 15,000 / 22,500 22,500/33,750 PR PR
39" Dia. 22 22,500 / 33,750 5,000 / 7,500 15,000 / 22,500 22,500/33750 PR PR


EXTENSIONS METER READING
COVERS & LIDS
REPLACEMENT COVERS
ATDUN1324
ATDUN1730
ATDUN2424
ATDUN2436
ATDUN3048
PD3048
ATDUN3636
ATDUN3660
ATDUN4872
ATDUN4896
Grade adjustable extensions
