Pico Macom Broadband - USM8D - UHF Consumer Agile Audio Video Modulator - Consumer Modulators - Pico Macom Products - Macom Professional Series - CableNet Connectivity - Active Distribution Components - Connectivity and Drop Components - Headend and Electronics - Fiber Optic - Passive Distribution Components - Installation Tools and Instrumentation
It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

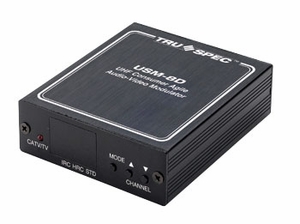

USM-8D : UHF Consumer Agile Audio-Video Modulator
Features
- Single low cost UHF A/V Agile Modulator, UHF band channels 14~83, CATV channels 65~139
- High Output 7dBmV minimum 10 dBmV typical provides ample signal for miltiple consumer devices
Specifications
| Output Frequency Range | 470~890MHz |
|---|---|
| Tuning | Agile |
| RF Output Level (min) | 11dBmV |
| RF A/V Ratio | -16dB |
| Spurious Output | 46dB |
| Frequency Stability | ±10kHz |
| Video Input Type | Clamped negative sync |
| Video Input Bandwidth | 4.2MHz |
| Video Input Level | 1 Vp-p |
| Video Input Range | .5~1 Vp-p |
| Video Frequency | |
| Response | ±1.5dB |
| Video Hum and Noise | -60dB |
| Audio Input Type | Monaural baseband |
| Audio Input Level | 0.5 Vp-p |
| Audio Frequency | |
| Response | 50~15,000Hz |
| Audio Pre-emph. | 75 μsec |
| Video Input Conn. | RCA-Fem |
| Audio Input Conn. | RCA-Fem |
| RF Output Conn. | 75.5 F-Fem |
| Voltage Input | 115VAC |
| Dimensions | 3.4˝(L) x 1.1˝(D) x 3.75˝(H) |
| Weight | 1.15 lb |
