It’s the heart and soul of your operation. Day in, day out delivering quality video, audio and data to your customers. There’s no bigger investment in your system than your headend electronics. Now think about what goes into a great headend: high-quality electronic equipment with state of the art design and engineering, equipment that you’re proud to see on the headend rack. Sleek and stylish on the outside. Powerful and reliable on the inside. Versatile and practical all around. Agile to meet your changing needs and able to reach your bandwidth requirements with capacity to grow. Specs to make you smile and performance to make your customers sit up and notice. Well, how about that: We’ve just described the Macom Professional Series headend products.

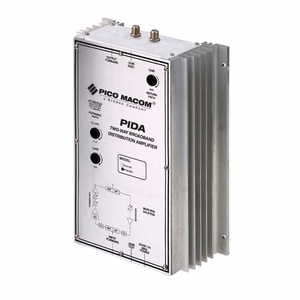

PIDA-1000 : 1 GHz Broadband Bi-Directional Push-Pull Distribution Amp
Features
54~1000MHz (CATV 2~158) and 5~36MHz reverse bandwidth (CATV T7~T11)
30dB forward path gain and 20dB or passive reverse path gain (switchable) for maximum flexibility
±0.75dB flatness across band provides low distortion and excellent frequency response
Employs dual state-of-the art push-pull hybrid technology for very low distortion, high input and output capability
Optional plug-in equalizers and attenuators enable unity gain and slope system balancing for minimum distortion
-30dB input and output test points enable simplified setup and performance monitoring without service interruption
Built-in lightning and line-voltage surge protection protects the unit from damage
