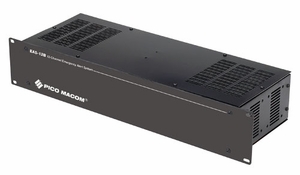

EAS-12B : 12 Channel Emergency Alert System
Features
- Proprietary baseband switching methodology eliminates the signal distortion and loss associated with traditional IF switching
- High isolation between FETs eliminates channel crosstalk and other intrusions into the downstream path, thereby maintaining excellent picture quality
- BTSC stereo compatibility provides pass-through for stereo signals
- Compatible with all modulator types and brands, with or without external IF loops. Compatible with all scrambling modes (Baseband and IF)
- Back panel EAS enable-disable contact provides convenient local or remote activation
- Adds FCC-compliant emergency alert capability to any CATV system at baseband, including those without accessible IF loops
- UL-approved switching power supply provides flexibility for use in international power system environments
Specifications
| Video Bandwidth | DC~200MHz |
|---|---|
| Flatness | 0.1dB |
| Video Impedance | 75Ω |
| Crosstalk @ 4.2MHz | >100dB |
| Crosstalk @ 10MHz | >90dB |
| Crosstalk @ 100MHz | >60dB |
| Differential Gain | 0.1% |
| Differential Phase | 0.1° |
| Chroma Lumina Delay | FCC Compliant |
| Isolation @ 4.2MHz | >90dB |
| Isolation @ 10MHz | >87dB |
| Isolation @ 100MHz | >60dB |
| Audio Bandwidth | 15~130,000Hz |
| Audio Impedance | 600Ω |
| Switch Speed | <1msec |
| Switch Voltage | 0~5VDC |
| Voltage Input | 115~240VAC |
| Dimensions | 19˝ (L) x 9˝ (D) x 3.5˝ (H) |
| Weight | 17 lbs. |
Override System
