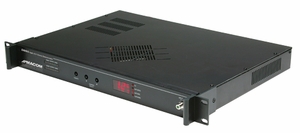

D860 : Macom Series Agile Audio-Video Demodulator
Features
- 132 Channel Input Range 5.75-806MHz (CATV T7-T13 AND 2-125) and TV 2-69
- Broadcast quality specifications for unparalleled picture quality
- Keyed AGC system provides excellent picture stability
- Quadrature single-tuned audio detection guarantees superior audio quality
- Digital display provides quick channel identification
- Bright LED bar graph provides quick reference of modulation levels
- Envelope detection ensures exceptional differential gain and phase
- 45.75MHz composite IF output allows tuner monitoring, encoder, ghost canceling and video override applications
- SAW filtered for precise adjacent channel rejection
- Back-panel switch enables sub-band operation for receiving remote TV origination, making it even more flexible for institutional cable systems
- IRC and HRC input and output offset available for frequency setting in systems using offset channels
Specifications
| RF Output | |
|---|---|
| Frequency Range | 5.75-806MHz |
| CATV Channels | T7-125 |
| Broadcast Channels | 2-69 |
| Level | 0-15dBmV |
| Impedance | 75Ω |
| Return Loss | -18dB |
| IF Output | |
| Composite Level | 35dBmV |
| Impedance | 75Ω |
| Video Input | |
| Level | 8-1.0 V p-p |
| Impedance | 75Ω |
| Differential Gain | <2% typ |
| Differential Phase | <1° typ |
| Chrom/ Lumin Delay | ±30 ns |
| Audio Input | |
| Level | 8-1.0 V p-p |
| Impedance | 600Ω |
| MPX Output | |
| Level | .8-1.0 V p-p |
| Format | BTSC |
| Impedance | 600Ω |
| 4.5MHz Output | |
| Level | 35dBmV |
| Impedance | 75Ω |
| General | |
| Power Input | 90-260 VAC, 28 W |
| Operating Temp. | -10°C to 50°C |
| Dimensions | 19˝(L) x 12˝(D) x 1.75˝(H) |
| Weight | 7.8 lbs. |
| Connectors RF & Video | “F” type |
| Audio | 600Ω Terminal Strip |
