American Tele Data is now a Tier 1 Distributor of Great Lakes Cabinets! Great Lakes Specializes IN same OR next DAY SHIPPING ON ALL DATA CABINETS AND RACKS!- More details |
|||||
    American Tele Data is a national data cabinet supplier and as a data cabinet distributor carries Great Lakes Data Cabinets, Great Lakes Water Cooled Cabinets, Great Lakes Data Rack Enclosures,Great Lakes Network Racks,Great Lakes Relay Racks, Great Lakes Cable Management Racks,Great Lakes Equipment Racks, and Great Lakes Rack Systems. Great Lakes Cabinets and Rack Systems are recognized around the globe as strong reliable partners in the areas of telecommunications and data communications, server network and technology, medical technology and, of course, security, and traffic control technology. The Great Lakes line of racks and data cabinets quality has been setting traditionally recognized high standards for several decades. Our standardized and customer-specific solutions are reflections of our innovative engineering know-how, which characterizes and provides the impetus for progress in these markets. Perfect solutions incorporating mechanical, electronic and thermal components qualify us as one of the global market leaders for highly developed, modular rack and enclosure systems for indoor and outdoor applications. The global presence, the innovative and aesthetic design, a mature platform of standard products and the recognized high degree of integration competence, supplemented by outstanding time-to-market results. American Tele Data Tech's products are compatible with the latest standards established by Dell, HP, IBM, Lanstar, Chatsworth. APW,Rittal,Hoffman and other server rack and data cabinet suppliers. With locations through the US, we serve all regions of the United States, Canada, Hawaii, AK and South America. Please call us for additional shipments at (866) 342-3721 |
      |
||||||||||||
 |
 |
 |

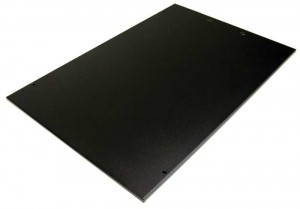

TPE-24S |
TPE-24P |
TPE-24F10 |
 |
 |
|

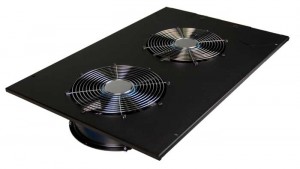

TPE-242F10 |

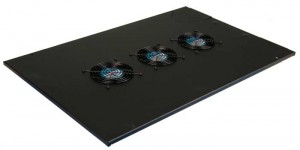

TPE-24F |
| Top Panels for E Series Enclosures |
|
| Part No. | Description |
| TPE-24S | Solid Top Panel with two 4.00″ Horseshoe Knock-outs for 24″W Frame |
| TPE-29S | Solid Top Panel with two 4.00″ Horseshoe Knock-outs for 29″W Frame |

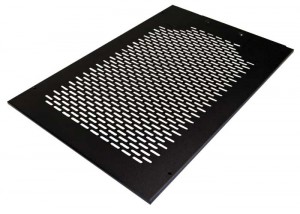

| TPE-24P | Perforated Top Panel with two 4.00″ Horseshoe Knock-outs for 24″W Frame |
| TPE-29P | Perforated Top Panel with two 4.00″ Horseshoe Knock-outs for 29″W Frame |

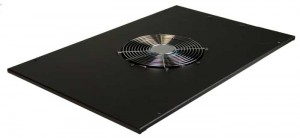

| TPE-24F10 | Top Panel and Fan Assembly with 550 CFM 10″ Fan and 6 ft. Cord for 24″ W Frame |
| TPE-29F10 | Top Panel and Fan Assembly with 550 CFM 10″ Fan and 6 ft. Cord for 29″ W Frame |
| TPE-242F10 | Top Panel and Fan Assembly with two 550 CFM 10″ Fan and 6 ft. Cord for 24″ W Frame |
| TPE-292F10 | Top Panel and Fan Assembly with two 550 CFM 10″ Fan and 6 ft. Cord for 24″ W Frame |
| TPE-24F | Top Panel and Fan Assembly with two 4.00″ Horseshoe Knock-outs for 24″ W Frame |
| TPE-29F | Top Panel and Fan Assembly with two 4.00″ Horseshoe Knock-outs for 29″ W Frame |
| FFK2 | Three fan filter kit for TPE-24F and TPE-29F |
| Download Fan Assembly Specifications | |
 |
 |
|
TPES-S |

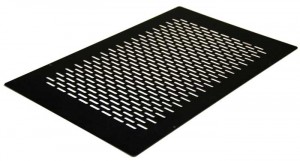

TPSE-P |

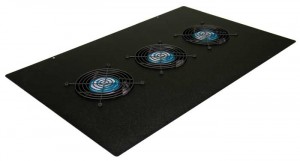

TPES-F |
 |
 |
|

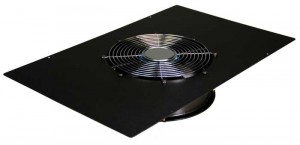

TPES-F10 |

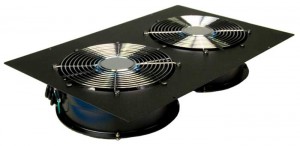

TPES-2F10 |

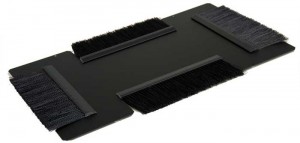

TPES-B |
| Top Panels for ES Series Enclosures |
|
| Part No. | Description |

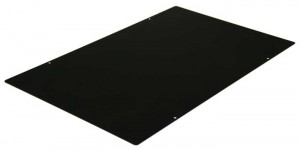

| TPES-S | Solid Top Panel |
| TPES-P | Perforated Top Panel |
| TPES-F | Top Panel and Fan Assembly |
| TPES-F10 | Top Panel and Fan Assembly with 550 CFM 10″ |
| TPES-2F10 | Top Panel and Fan Assembly with two 550 CFM 10″ Fan |
| TPES-B | Top Panel with Brush Grommet Assembly |
| Download Fan Assembly Specifications | |
 |
E Series Enclosure – GL720E-2432 Dimensions: 72.00″H x 24.00″W x 32.00″D Rack Spaces: 37 RMU, 19″ EIA 310-D Compliant Stock Colors: Black, Advantage Gray, or Nitro Blue Weight Capacity: 1500 lbs. on levelers, bolted to floor, or heavy duty casters Shipping Weight: 325 lbs. Shown with optional accessories.   |
|
 Catalog Page |
 Product Spotlight |
 Instructions |
Tech Specs |
 E Overview |
 Configurator |
| GL720E-2432P | COMPLETE ENCLOSURE INCLUDES PARTS LISTED BELOW |
| Part No. | Description |
| 7201E-2432 | Enclosure frame with two pairs of black powder coated, universal 19″ mounting rails (with RMU markings) and package of M6 hardware |
| 7209-N | One set of 4 Adjustable Levelers (2.50″H) |
| TPE-24P | Removable vented top panel with two 4.00″ horseshoe knock-outs |
| 7202E-24 | Plexiglas door with locking swing handle |
| 7204E-24 | Perimeter vented steel rear door with locking swing handle |
| 7210-32ELS | Pair of solid lift-off side panels with lock |
| 7215 | 16 position, 15 amp Power Strip with circuit breaker and 15 ft. cord |
| ADDITIONAL CONFIGURATIONS |
|
| GL720E-2432F | Complete enclosure with TPE-24F fan top |
| GL720E-2432F10 | Complete enclosure with TPE-24F10 fan top |
| GL720E-2432S | Complete enclosure with TPE-24S solid top |
| Most Popular Accessories for the GL720E-2432 | |
| Doors and Side Panels |
|
| 7202E-24PV |
Perimeter Vented Plexiglas Door |
| 7203E-24 | Solid Door |
| 7202E-M24 | Mesh Door |
| 7211-32ELL | Pair of removable fully vented side panels |
| Removable Top and Bottom Panels | |
| TPE-24F | Top panel fan assembly with two 4.00″ horseshoe knock-outs |
| TPE-2410 | Solid top panel with two 4.00″ horseshoe knock-outs |
| BPF-24 | Bottom panel, (filtered), 13.00″W x 16.00″D with rear solid panel |
| BPS-24 | Bottom panel, (solid), 13.00″W x 16.00″D with rear solid panel |
| Cable Management | |
| CM-04 | Interbay Cable Organizer, 4 horizontal rings (3.25″W x 2.80″D), 2 RMU |
| CM-08 | Standard Front Cable Organizer, 4 horizontal and 4 vertical rings (1.75″W x 3.75″D), 2 RMU |
| VLB-7232 |
Vertical Lacing Bar Kit for 72″H Enclosure (includes 1 vertical bar, 2 horizontal bars and 6 cinch straps) |
| VLB-72 |
Vertical Lacing Bar for 72″H Enclosure (includes 6 cinch straps) |
| HLB-32 |
Horizontal Lacing Bar for 32″D Enclosure |
| Stationary Shelves for 19″ Mounting | |
| 7206-FR-AHD | Stationary Shelf (front/rear mount adjustable), 17.50″W 22.25″D, 200 lb. weight capacity, 1 RMU |
| 7206-FR-ADHD | Stationary Shelf (front/rear mount adjustable), 17.50″H x 27.25″D, 150 lb. weight capacity, 1 RMU |
| 7206-FR-A28HD | Stationary Shelf (front/rear mount adjustable), 17.50″H x 28.00″D, 300 lb. weight capacity, 1 RMU |
| Sliding and Speciality Shelves for 19″ Mounting | |
| 7206-FRSL-AHD | Sliding Shelf, 17.50″W x 22.00″D, 110 lb. weight capacity, 2 RMU |
| 7206-FRSL-ADHD | Sliding Shelf, 17.50″W x 26.00″D, 110 lb. weight capacity, 2 RMU |
| 7206-MKM | Monitor, keyboard, Mouse Shelf, 17.00″W x 24.00″D, 200 lb. weight capacity, 2 RMU |
| 7206-PKB-MT | Pivoting Keyboard Shelf with Mouse Tray, 20.625″W x 9.5″D, 110 lb. weight capacity. 3 RMU |
| Power Strips, Copper Bus Bars, and Cooling Equipment |
|
| 7217FT-3 | Fan Tray (front/rear mount adjustable) with Fan Guards and three 75 CFM fans, 2 RMU |
| 7219-SR14 | 14 postion (6 front/8 back), 15 amp Power Strip with circuit breaker, surge suppressor and 15 ft. cord for 19″ mounting |
| 7219-20AR | 6 position, 20 amp Power Strip with circuit breaker and 15 ft. cord for 19″ mounting |
| 7215-20ARTLP | 16 position, 20 amp Power Strip with circuit breaker, twist lock, and L5-20P plug |
| CBB-60 | Copper Bus Bar, 58.00″ (Isolated) |
| Mounting Rails, Casters, and Other Accessories |
|
| 7205-ES1P | Pair of EIA mounting rails, tapped #10-32, with hardware |
| 7205-ES2P | Pair of EIA mounting rails to accept M6 cage nuts with hardware |
| HDW-105-50 | Package of 50 M6 cage nuts with screws – 12mm screw length |
| G101 | Networking/Ganging Kit |
| AK101 | Seismic Anchor Kit (includes 4 torque-controlled expansion anchors) |
| AT2 | Anti-tip legs |
| 7208-E | One set of 4 Casters, 2 locking and 2 non-locking |
| 7208-EHD | One set of 4 Heavy Duty Casters, all locking |
| 7209-N4 | One set of 4 adjustable levelers, 4.00″H (required when casters and levelers are used together) |
|
|
|
