American Tele Data is now a Tier 1 Distributor of Great Lakes Cabinets! Great Lakes SPECIALIZES IN same OR next DAY SHIPPING ON ALL DATA CABINETS AND RACKS!- More details |
|||||
    American Tele Data is a national data cabinet supplier and as a data cabinet distributor carries Great Lakes Data Cabinets, Great Lakes Water Cooled Cabinets, Great Lakes Data Rack Enclosures,Great Lakes Network Racks,Great Lakes Relay Racks, Great Lakes Cable Management Racks,Great Lakes Equipment Racks, and Great Lakes Rack Systems. Great Lakes Cabinets and Rack Systems are recognized around the globe as strong reliable partners in the areas of telecommunications and data communications, server network and technology, medical technology and, of course, security, and traffic control technology. The Great Lakes line of racks and data cabinets quality has been setting traditionally recognized high standards for several decades. Our standardized and customer-specific solutions are reflections of our innovative engineering know-how, which characterizes and provides the impetus for progress in these markets. Perfect solutions incorporating mechanical, electronic and thermal components qualify us as one of the global market leaders for highly developed, modular rack and enclosure systems for indoor and outdoor applications. The global presence, the innovative and aesthetic design, a mature platform of standard products and the recognized high degree of integration competence, supplemented by outstanding time-to-market results. American Tele Data Tech's products are compatible with the latest standards established by Dell, HP, IBM, Lanstar, Chatsworth. APW,Rittal,Hoffman and other server rack and data cabinet suppliers. With locations through the US, we serve all regions of the United States, Canada, Hawaii, AK and South America. Please call us for additional shipments at (866) 342-3721 |
|
||
      |
||||||||||||
Specialty Power Solutions
Geist is a US manufacturer of customized power distribution solutions for racks and cabinets. With the broadest selection in the industry, Geist offers over 1000 model numbers made up of numerous product configurations and options. All model numbers are built to order, allowing customers to build a PDU to fit their specific needs; these customized PDUs are still able to be pre-installed in Great Lakes enclosures.
 |
|
| PDU with Local Digital Read-Out | |
| RBRCN100-102STL | 20 AMP, 125V, L5-20P, 10 x 5-20R on rear, 10′ cord, 1U rack mount, 1.72″H x 17.00″W x 4.50″D; Digital power meter displays amps, volts, watts and power factor. |
| NSVBCN200-102S20TL | 20 AMP, 125V, L5-20P, 20 x 5-20R on rear, 10′ cord, vertical mount, 66.25″H x 1.61″W x 1.61″D; Digital power meter displays amps, volts, watts and power factor. (pictured above) |
| Note: 72″H E Series enclosure can accept a maximum of 59″H power strips | |
  |
|
| RacSense RacSense® Power solutions feature power distribution units with remote power monitoring and alarming. Monitors voltage, current, real power, apparent power & power factor. |
|
| RSPRN122-00C13C20 | 20 AMP, 125 or 250V, C20 power inlet (cord required), 12 x C-13 1U rack mount, 1.72″H x 17.00″W x 4.50″D (pictured above) |
| RSPBN302-102IN6TL5 | 20 AMP, 125V, L5-20P, 24 x C-13/6 x C19, 10′ cord, vertical mount, 66.25″H x 2.00″W x 2.00″D |
| Note: 72″H E Series enclosure can accept a maximum of 59″H power strips | |
 |
|
| RacSense Master RacSense® Master units combine power distribution, power/environmental monitoring, and remote alarming together in one solution. Environmental monitoring via three I/O ports or using four RJ12 ports. |
|
| RSMRN122-002C13C20 | 20 AMP, 125 or 250V, C20 power inlet (cord required), 8 x C-13, 1U rack mount, 1.72″H x 17.10″W x 8.50″D (connect optional remote sensors via 2 x RJ jacks) (pictured above) |
| RSMB300-103IN6TL5 | 20 AMP, 125V, L5-20P, 16 x 5-15R, 10′ cord, vertical mount, 66.25″H x 3.10″ W x 2.00″D (connect optional remote sensors via 2 x RJ jacks) |
| Note: 72″H E Series enclosure can accept a maximum of 59″H power strips | |
  |
|
| RacSense Control Ultra RacSense® Control Ultra distribution units deliver individual on/off outlet control, receptacle level current monitoring, user defined alarm thresholds and real-time remote alarming. |
|
| RSURN082-002C13C20 | 20 AMP, 125 or 250V, C20 power inlet (cord required), 8 x C-13, 1U rack mount, 1.72″H x 17.10″W x 8.50″D (connect optional remote sensors via 2 x RJ jacks) (pictured above) |
| RCUBN162-102S15TL5 | 20 AMP, 125V, L5-20P, 16 x 5-15R, 10′ cord, vertical mount, 66.25″H x 3.10″ W x 2.00″D (connect optional remote sensors via 2 x RJ jacks) |
| Note: 72″H E Series enclosure can accept a maximum of 59″H power strips | |
 |
|

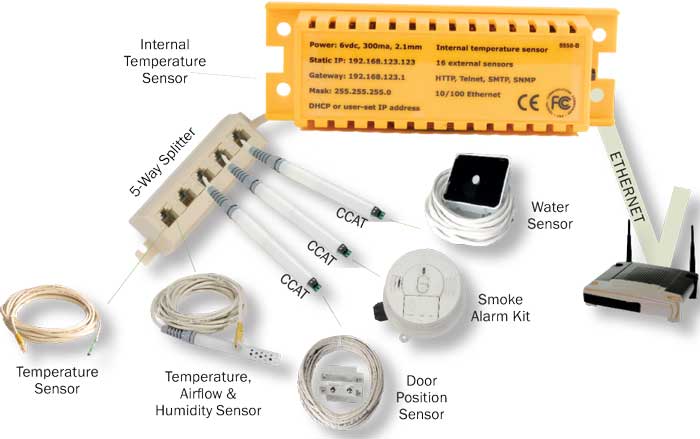

| RacSense Control Ultra Monitors up to 16 remote environmental sensors with a unit the size of a candy bar. This compact and powerful unit displays the same user interface, including graphs, as the RacSense product line. Ideal for discrete placement in tight locations. |
|
| RSMINI | Mini Environmental Monitoring Unit to be used with the following parts: |
| RT12 | Temperature Sensor, 12′ cord (RJ) |
| RTAF12 | Temperature and Airflow Sensor, 12′ cord (RJ) |
| RTAFH12 | Temperature, Airflow, and Humidity Sensor, 12′ cord (RJ) |
| RTHD12 | Temperature, Humidity, and Dew Point Sensor, 12′ cord 9RJ) |
| RCP2 | City Power Monitor |
| SA-1 | Smoke Alarm Kit (I/O) |
| RWS | Water Sensor, 20′ cord (I/O) |
| SP-5 RJ12 | 5 Way Splitter |
| CCAT | I/O to RJ Remote Sensor Convertor |
Try Geist® Specialty Power Solutions!
Not sure what your needs are? Download and print an Electrical Configuration Form.
 |
  |
 |
| 7219 | 7219-SR14 (front and rear) | 7219-20AR |
| Rack Mount Power Strips with 15′ cord – 125 Volts | ||||||
| Part No. | No. of Receptacles |
Type of Receptacles |
Receptacles | Type of Plug |
Plug | Surge |
| 7219 | 6 | 5-15R |  |
5-15P |  |
No |
| 7219-SR14 | 6 front/ 8 back |
5-15R | |
5-15P | |
Yes |
| 7219-20AR | 6 | 5-20R |  |
5-20P |  |
No |
 |
| 7215 |
| Vertical Mount Power Strips with 15′ cord – 15 AMP – 125 Volts | ||||||
| Part No. | No. of Receptacles |
Type of Receptacles |
Receptacles | Type of Plug |
Plug | Surge |
| 7215 | 16 | 5-15R | |
5-15P | |
No |
| 7215-S | 15 | 5-15R | |
5-15P | |
Yes |
| 7218-24 | 8 | 5-15R | |
5-15P | |
No |
| Vertical Mount Power Strips with 15′ cord – 20 AMP and 30 AMP – 125 Volts | ||||||
| Part No. | No. of Receptacles |
Type of Receptacles |
Receptacles | Type of Plug |
Plug | Surge |
| 7215-20ARTLP | 16 | 5-20R | |
L5-20P |  |
No |
| 7215-20AR | 16 | 5-20R | |
5-20P |  |
No |
| 7215-30A | 24 | 5-20R | |
L5-30P |  |
No |
| EURO Power Strip with 9′ 10″ cord | ||||||
| Part No. | No. of Receptacles |
Type of Receptacles |
Receptacles | Type of Plug |
Plug | Surge |
| 7215-EURO | 12 | Schuko |  |
Schuko | |
No |
| Mounting Options |
||
| Part No. | Description | |
 |
PSBKE | Set of two Power Strip Mounting Brackets to allow vertical mounting of single PDU; for E Series Enclosures |
|
PDU1 | Set of two Mounting Brackets to allow vertical mounting of any 1 RMU equipment (such as power strips and patch panels) wihtout occupying any RMU space; for 30″W ES and 29″W E Series Enclosures |
Specialty Power Solutions
Great Lakes Case & Cabinet Co., Inc. offers access to some of the best power distribution and environmental monitoring products in the industry. These products include Eaton® Corporation and Geist Manufacturing.
We can help find the PDU to suit your needs; we will make sure it fits and works where you want it to. By choosing Great Lakes for your power needs, your PDU will be pre-installed in the enclosure that you choose.
If you have your own specific products or power management components, Great Lakes can also install customer supplied PDUs. Please contact your Great Lakes representative or call 1-866-TRY-GLCC for more information.
All Geist and Eaton® power solutions are specialty power strips and require a 7 to 10 day lead time
|
|
|
