American Tele Data is now a Tier 1 Distributor of Great Lakes Cabinets! Great Lakes SPECIALIZES IN same OR next DAY SHIPPING ON ALL DATA CABINETS AND RACKS!-More details
American Tele Data is a national data cabinet supplier and as a data cabinet distributor carries Great Lakes Data Cabinets, Great Lakes Water Cooled Cabinets, Great Lakes Data Rack Enclosures,Great Lakes Network Racks,Great Lakes Relay Racks, Great Lakes Cable Management Racks,Great Lakes Equipment Racks, and Great Lakes Rack Systems. Great Lakes Cabinets and Rack Systems are recognized around the globe as strong reliable partners in the areas of telecommunications and data communications, server network and technology, medical technology and, of course, security, and traffic control technology. The Great Lakes line of racks and data cabinets quality has been setting traditionally recognized high standards for several decades. Our standardized and customer-specific solutions are reflections of our innovative engineering know-how, which characterizes and provides the impetus for progress in these markets. Perfect solutions incorporating mechanical, electronic and thermal components qualify us as one of the global market leaders for highly developed, modular rack and enclosure systems for indoor and outdoor applications. The global presence, the innovative and aesthetic design, a mature platform of standard products and the recognized high degree of integration competence, supplemented by outstanding time-to-market results. American Tele Data Tech's products are compatible with the latest standards established by Dell, HP, IBM, Lanstar, Chatsworth. APW,Rittal,Hoffman and other server rack and data cabinet suppliers. With locations through the US, we serve all regions of the United States, Canada, Hawaii, AK and South America. Please call us for additional shipments at (866) 342-3721

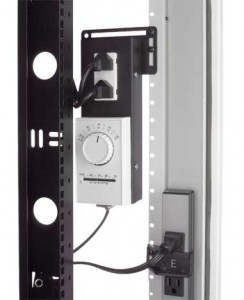

Fan Thermostat Controller, Thermostat controlled 15 amp duplex outlets, UL listed, CSA certified thermostat, 50° to 90°F / 10° to 30°C temperature range, 6 ft. cord.
FTC102

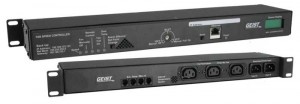

Remote or Local Access Fan Control Unit. Thermostat range between 60-100° F. UL and c-UL Listed 60950; compatible with Shaded Pole and Split Capacitor Fans; 1 RMU (cord required); This product is a special order, please call for lead time. See below for complete specifications
PC13-515P
Power cord for fan controller, 5′6″ length, 2 required for dual a/c input (125 Volts); for use with FTC102
PC13-C14
Power cord for fan controller, 3′3″ length, 2 required for dual a/c input (125/250 Volts); for use with FTC102
GL-ST12
Temperature Sensor, 12 ft.; for use with FTC102
FTC102: Remote of Local Access Fan Control Unit
Local Input
125 or 250V
No Circuit Breaker
Dual A/C input – 2 C-14 IEC -auto-switching in event of power failure
90-264 Volt auto sensing
RJ-45 ethernet connection
Access via web browser
Direct connection available via crossover cable
Four RJ jacks for connection of up to 4 remote temperature sensors
Fan speed manual/local override via rotary switch – unplug ethernet connection
Set point change button must be pressed while activating rotary switch
Rotary switch with recessed screwdriver slot
Manual temperature set-points of 65-100 degrees F
Manual full on setting for 100% fan speed
Plug and Play, no client software required
Remote Input – Three Levels of Password Protection
Temperature set-points of 65-100 degrees F
Optional full on setting for 100% fan speed
Friendly device and sensor names
Fahrenheit or Celsius selection
Low and high trip level selection
Alarm notification selection
SNMP trap, e-mail and/or audible buzzer
Local Output
Three C-13 IEC outlets for AC fan connection, 267 watts per outlet
Fan speed control of 30-100%
Fans start on full speed for 1 second and then adjust to the necessary speed to maintain set point temperature
Scrolling digital display of real-time measurements
Set point temperature
Internal temperature
Four external temperature
Fan speed percentage
Audible alarm with silence reset button
Fan running visual indicator LED’s
Speed – running at a Level less than full Full On – orange LED
Fan manually off – orange LED
Remote control – orange LED
Fan Full on – orange LED
Over temp – red LED
Remote Output
Real-time measurements and graph
Set point temperature
Internal temperature
Four external temperatures
Fan Speed
Log data available for export via XML or real-time via SNMP
Event log with variable content settings
Visual image display from optional IP addressable camera
Lake Effect Enclosure
Lake Effect Enclosure
84”H x 30”W x 48”D (44 RMU)
– Provides a cooling solution for your data center that does not require water, refrigerants, piping or floor modifications
Lake EffectTM Enclosure - GL840LE-3048
Shipping Weight: 525 lbs.
Dimensions: 84.00″H x 30.00″W x 48.00″D
Rack Spaces: 44 RMU, 19″ EIA 310-D Compliant
Stock Colors: Black
Weight Capacity: 2000 lbs. on levelers or bolted to floor,
1800 lbs. on casters
UL Listed: UL60950-1 Standard for IT & Communications Equipment, Cabinet Enclosures and Rack Systems
Shown with optional accessories and custom color.
Fan Thermostat Controller, Thermostat controlled 15 amp duplex outlets, UL listed, CSA certified thermostat, 50° to 90°F / 10° to 30°C temperature range, 6 ft. cord.
Remote or Local Access Fan Control Unit. Thermostat range between 60-100° F. UL and c-UL Listed 60950; compatible with Shaded Pole and Split Capacitor Fans; 1 RMU (cord required)
