American Tele Data Tele Data carries a complete line of fiber optic telephone extenders ranging from simple "quick talk" extenders to multi-line (24 channel) PBX line extenders allowing you to use existing fiber optic cable to run your voice needs over 2 fiber strands or install fiber optic cable one time and use fiber optics for security proof voice, data, IP, video services on one media- fiber. The TC8800 is a 4-to-28 channel telephone and data fiber optic multiplexer that extends multiple telephone lines and data channels to remote sites such as other buildings in campus networks.

Our fiber optic modems are available from several different manufacturers including TC Comm, Opterna, Omnitron, Allied Telesyn, Opticomm, and others. Our Fiber Optic Transmission products are ideal for Data, Voice, Ethernet, T1/E1, T3/E3 & Audio for campus & intra-building fiber optic networks.

Additional Fiber Optic Extenders- Allows Voice-Data-IP-Video -extend Voice PBX Service Via Fiber Optic Cable

Fiber Optic Telephone Extenders-Fiber Optic Modems-T1/E1 Fiber Optic Modems- T3/ E3 Fiber Optic Modems- Async/Sync Fiber Optic Modems- Fiber Optic Transceivers- Fiber Optic Multiplexers- Ethernet Media Converters- Telephone Extenders-Fiber Optic Media Converters

Call American Tele Data Today at (866) FIBER-21 for latest pricing or click on the live chat button at the top of the page to talk to us.

4-28 Channel Telephone/Data Fiber Optic Multiplexer
(TC8800 Series) Prices Start at $1,680.00 ea.

Extend Up to 28 Telephone Lines and/or RS-232, RS-422, TTL, Dry Contact Closure, Dry Contact Detector
2-Wire Analog PBX and Key System Compatible
Multimode or Single Mode (850/1300/1550nm)
Built-In Power Redundancy
Optical Redundancy (Optional)
Hardened Temperature Version (Optional)
Standalone or Hot Swappable Rackmount Cards
(TC8800 Series) Prices Start at $1,680.00 ea.

Applications

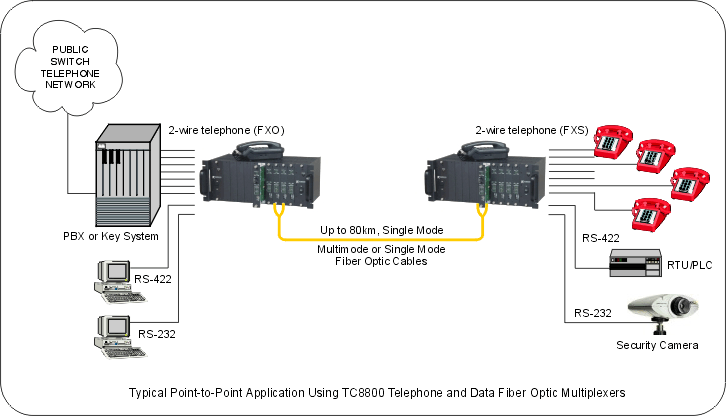

The TC8800 is typically used to link or extend data and telephone lines in campus networks. In many instances the TC8800 can replace expensive channel banks.

Description

The TC8800 is a 4-to-28 channel telephone and data fiber optic multiplexer that extends multiple telephone lines and data channels to remote sites such as other buildings in campus networks. The TC8800 Series consists of TC8800 (FXS), TC8801 (FXO), and TC8802 (Data). Users can mix or match telephone channels or RS-232, RS-422, TTL and Dry Contact Interfaces in increments of four up to a maximum of 28 channels. For example, a user could multiplex 20 telephone channels and 8 RS-232 data channels.

The TC8800 Series converts 2-wire FXS to fiber optics on the telephone side with ring down capability and FXO on the PBX side. Distances up to 80km are typical over single mode fiber, 4km over multimode fiber. Because the TC8800 digitizes the analog signals (PCM), voice quality does not degrade over extended distances.

It supports Telephone channels from 300Hz to 3.4Khz and asynchronous data rates to 19.2 Kbps. Twelve LEDs are available for status monitoring and diagnostics. A dry contact alarm is optional. Diagnostic LEDs for each channel include Tx, Rx, Hook and Ring.

The TC8800R PC Card version requires the TCRM191 or TCRM195 19" Rackmount Card Cage. Each TC8800R card can be removed or installed on the TCRM191 without powering down the system ("hot-swappable"). The TC8800S Standalone version currently supports up to 8 telephone or data channels. An extreme temperature version (-20°C to 70°C), TC8800T, is also available.

The TC8800 Series works with all types and sizes of multimode or single mode fiber optic cable at 850/1300/1550nm. Fiber optic connectors are ST or FC. RJ-11F ports are provided on the rear side to connect with telephones. Power redundancy is standard; optical redundancy is optional. Power is 12Vdc; 115/230VAC and 24VDC are optional.
